Full Specs & Features
Depth : 36' 9"
Height : 28' 7"
Width : 30' 9"
Decks : 291 sq/ft
Garage : 951 sq/ft

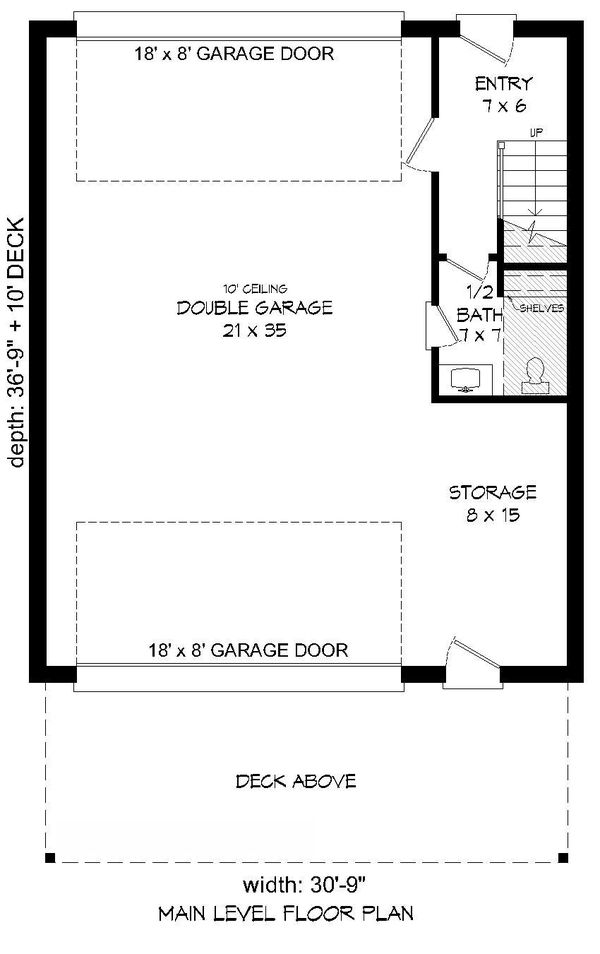

Main Floor : 179 sq/ft

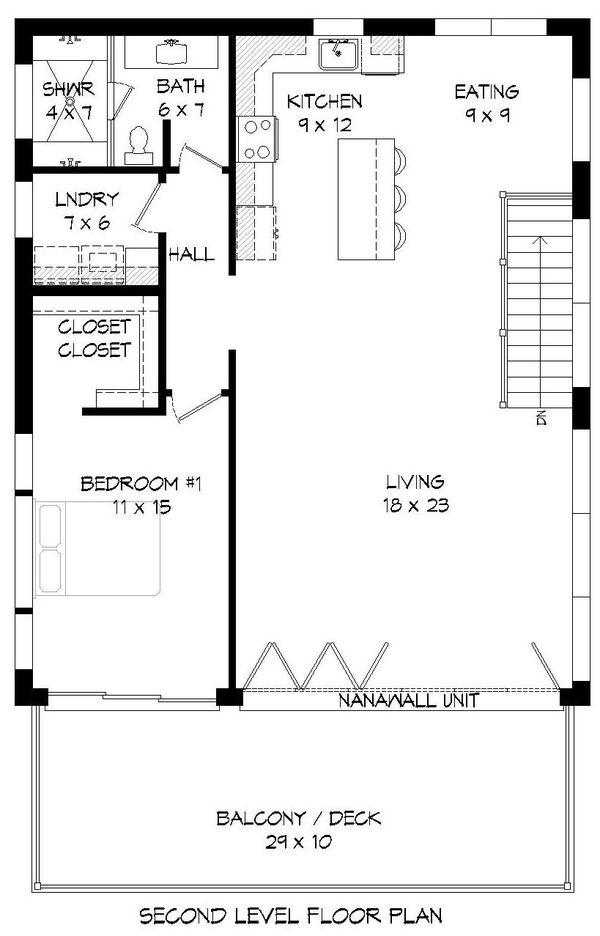

Upper Floor : 1130 sq/ft
Ceiling Details : Upper Vaulted 7.0" to 14.6"
Main Ceiling : 10'
Upper Ceiling Ft : 7'
Primary Pitch : 2.5:12
Roof Framing : Conventional
Exterior Wall Framing
Framing : 2x4
Upstairs Master Bedrooms
Additional Room Features
Front Entry Garage
Grill Deck Sundeck
Additional Half Bath
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
