PLAN 535-4
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

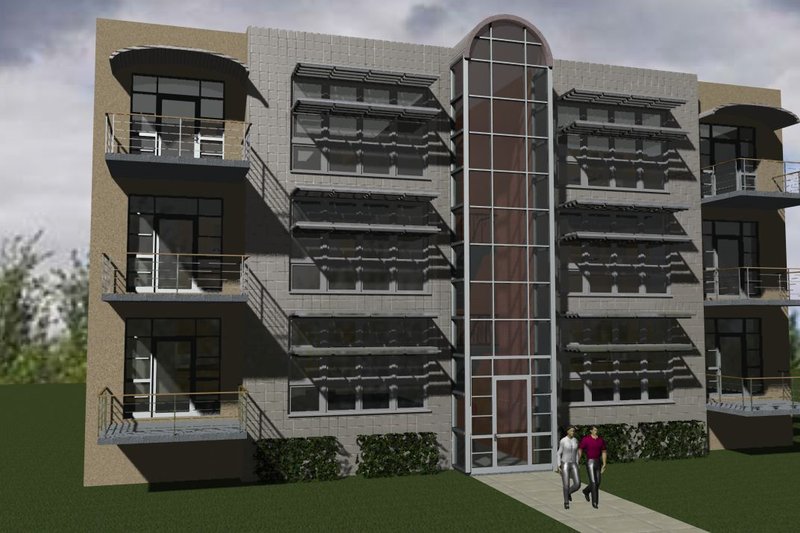

The building is designed as a multi-family unit with central entries, open decks and generous living areas. Each of the six 1,035 sf units has 3 bedrooms and 2.5 baths. Natural light floods the units from 3 directions offering natural ventilation and open views. The exterior walls are designed for, green wall construction, typical with well insulated, ICF wall products. The roof design is suitable for solar panels or wind turbines.
Floor Plans
Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 77'
Height : 37'
Width : 68'
Area
Main Floor : 2070 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Exterior Wall Framing
Exterior Wall Finish : ICF
Icf
Bedroom Features
Walk In Closet
Additional Room Features
Great Room Living Room
Outdoor Spaces
Grill Deck Sundeck
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
