Full Specs & Features
Depth : 51' 6"
Width : 43' 6"
First Floor: 1287 sq/ft
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Asphalt
Exterior Wall Framing
Framing : Wood - 2x4
Walk In Closet
Additional Room Features
Great Room Living Room
Vaulted / Cathedral Ceilings
Covered Front Porch
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

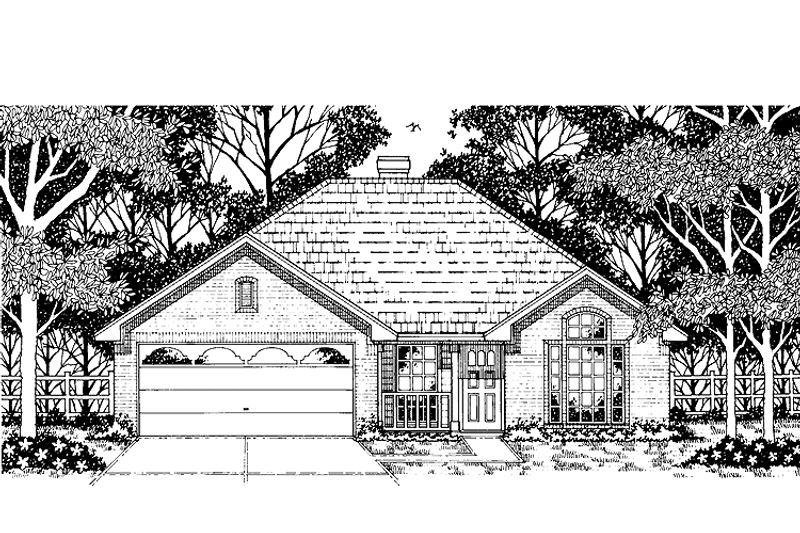

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

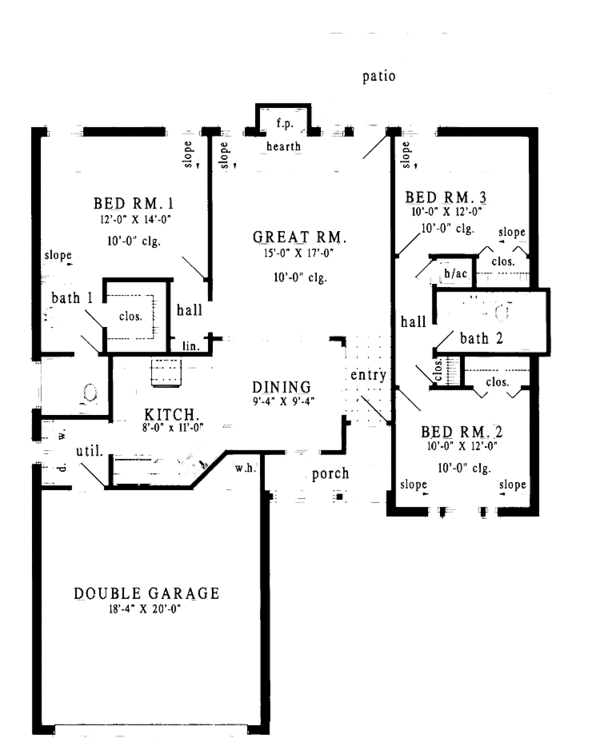

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
