PLAN 47-937
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Plan Description

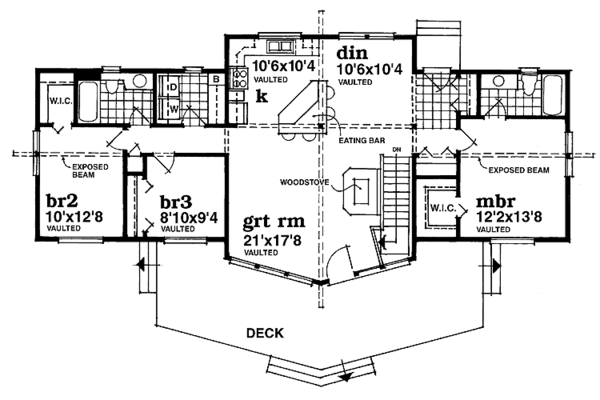

This three-bedroom leisure home is perfect for the family that spends casual time out of doors. An expansive wall of glass gives a spectacular view to the great room and accentuates the high vaulted ceilings throughout the design. The great room is also warmed by a hearth and is open to the dining room and L-shaped kitchen. A triangular snack bar graces the kitchen and provides space for casual meals. Bedrooms are split, with the master bedroom on the right side of the plan and family bedrooms on the left.
Full Specs & Features
Dimension
Depth : 29'
Height : 17'
Width : 62'
Height : 17'
Width : 62'
Area
First Floor: 1405 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 7:12
Roof Framing : Conventional
Roof Type : Shingle
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2 x 6
Framing : 2 x 6
Bedroom Features
Fireplace
Formal Dining Room
Split Bedrooms
Formal Dining Room
Split Bedrooms
Additional Room Features
Great Room Living Room
Rooms
3rd BR Closet:
13 sq/ft width 6' 11" x depth 2'
Basement Foundation:
1798 sq/ft width 29' x depth 62'
Bedroom 2:
127 sq/ft width 12' 9" x depth 10'
Bedroom 2 Closet:
24 sq/ft width 5' 11" x depth 4' 2"
Bedroom 3:
81 sq/ft width 9' 3" x depth 8' 10"
Bedroom 3 Closet:
24 sq/ft width 5' 11" x depth 4' 2"
Crawlspace Foundation:
1798 sq/ft width 29' x depth 62'
Deck:
392 sq/ft width 10' 4" x depth 38'
Dining Room:
107 sq/ft width 10' 3" x depth 10' 6"
Foyer:
45 sq/ft width 9' x depth 5'
Gathering Room:
304 sq/ft width 17' 9" x depth 17' 2"
Hall Bathroom:
53 sq/ft width 5' 11" x depth 9'
Hall Closet:
10 sq/ft width 2' x depth 5' 2"
Kitchen:
107 sq/ft width 10' 3" x depth 10' 6"
Master Bathroom:
49 sq/ft width 5' x depth 9' 10"
Master Bedroom:
166 sq/ft width 13' 8" x depth 12' 2"
Master Closet:
35 sq/ft width 6' 11" x depth 5' 2"
Utility Room:
46 sq/ft width 5' 11" x depth 7' 10"
