Full Specs & Features
Depth : 48' 4"
Height : 24' 3"
Width : 54' 4"
Basement Unfinished: 1601 sq/ft
First Floor: 1601 sq/ft height 9'
Garage: 440 sq/ft
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Asphalt
Secondary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x6
Main Floor Master Bedroom
Walk In Closet
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Open Floor Plan
Front Entry Garage
Covered Front Porch
width 11' 8" x depth 11'
width 11' 8" x depth 10' 8"
Covered Front Porch:
108 sq/ft width 21' 8" x depth 5'
width 11' 8" x depth 12' 2"
440 sq/ft width 20' x depth 22'
width 16' 8" x depth 15'
width 17' x depth 9' 4"
width 15' x depth 13'
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

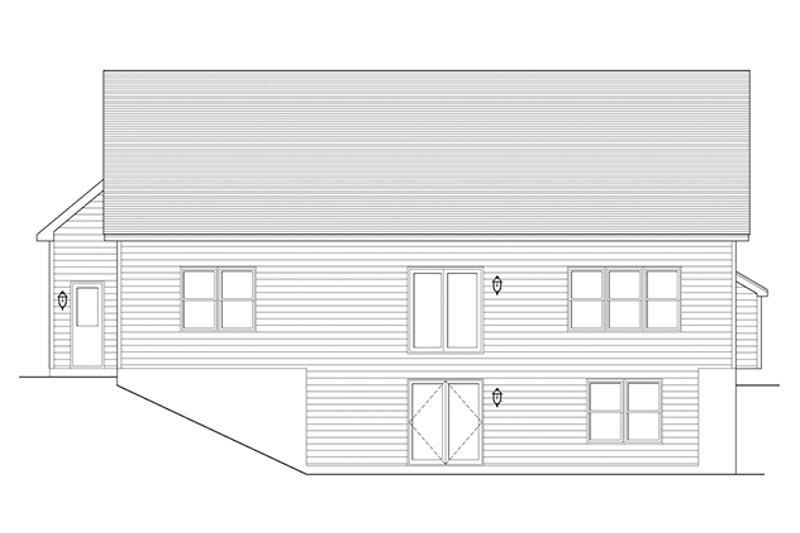

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

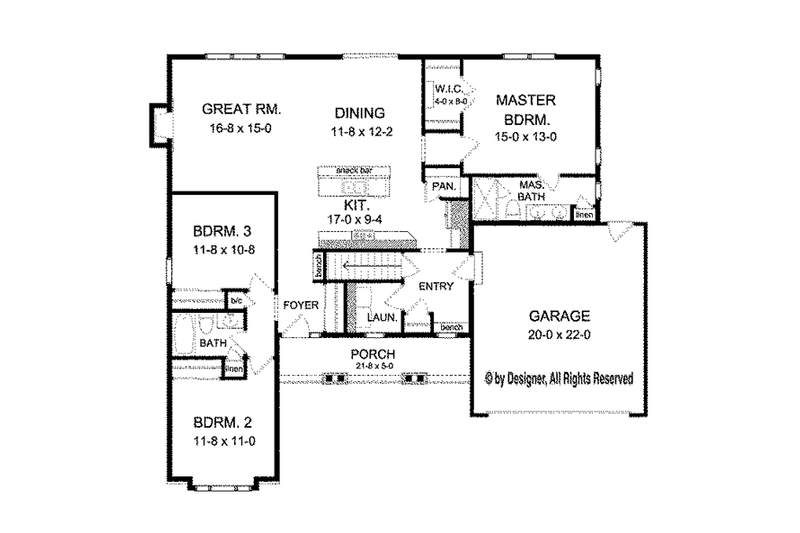

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Roof Plan: ?” scale; this shows roof rafter or trusses and how the roof is framed.
- CAD Plans are in AutoDesk Architecture.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
