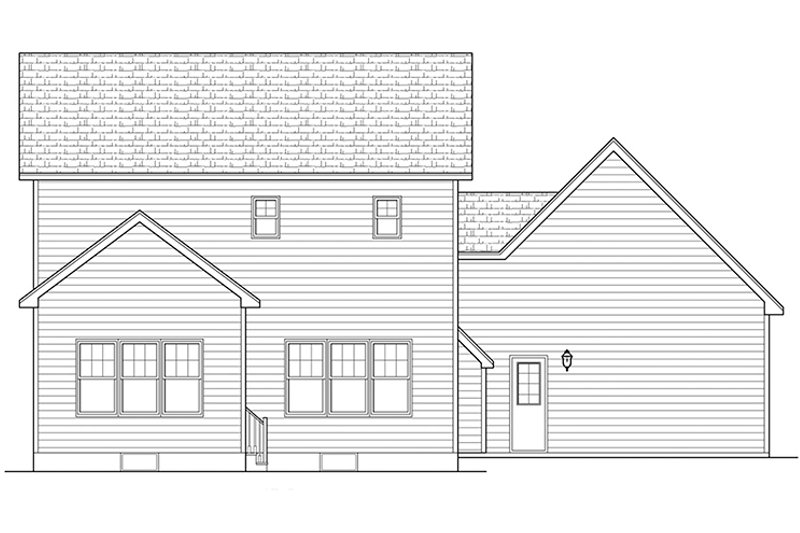

Home Plan - Craftsman Exterior - Rear Elevation Plan #1010-114

Home Plan - Craftsman Floor Plan - Main Floor Plan #1010-114

Home Plan - Craftsman Floor Plan - Upper Floor Plan #1010-114

Jump to:
All (6)
Exterior (4)
Floor plans (2)

Get Personalized Help

Home > Style > Craftsman

Key Specs

1613
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Additional Construction Sets

$75.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$295.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$100.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$1300.00

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBSUMMER

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 1010-114

Home > Style > Craftsman

Key Specs

1613
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This beautiful home is a great choice for a not-so-deep lot. Tapered columns and wrapping stone add character to the exterior, with symmetrical windows nicely balancing the two-car garage. Inside, the kitchen’s large island and snack bar will undoubtedly become the center of activity, located at the juncture between the family room and the open dining space. Upstairs, the master suite offers a relaxing sitting area that invites you to curl up by the window with a book. Two more bedrooms share a hall bath with a nearby linen closet. Don’t miss the extra storage zone in the garage.

Floor Plans

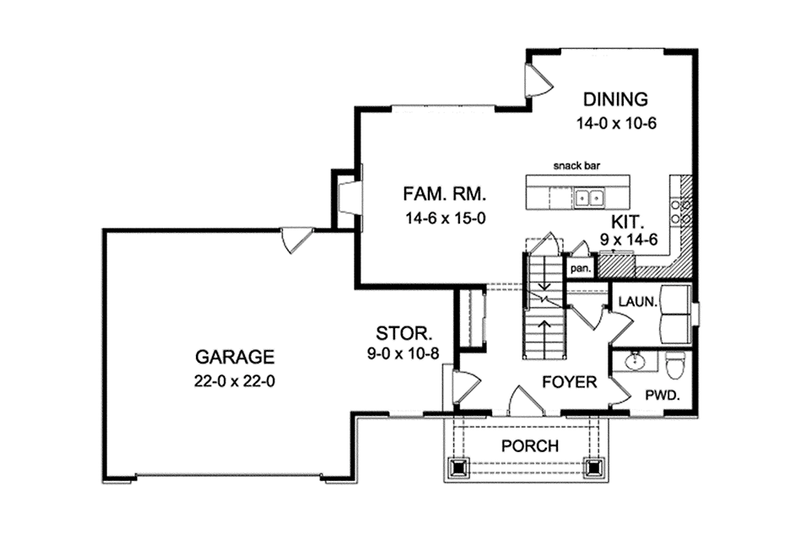

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

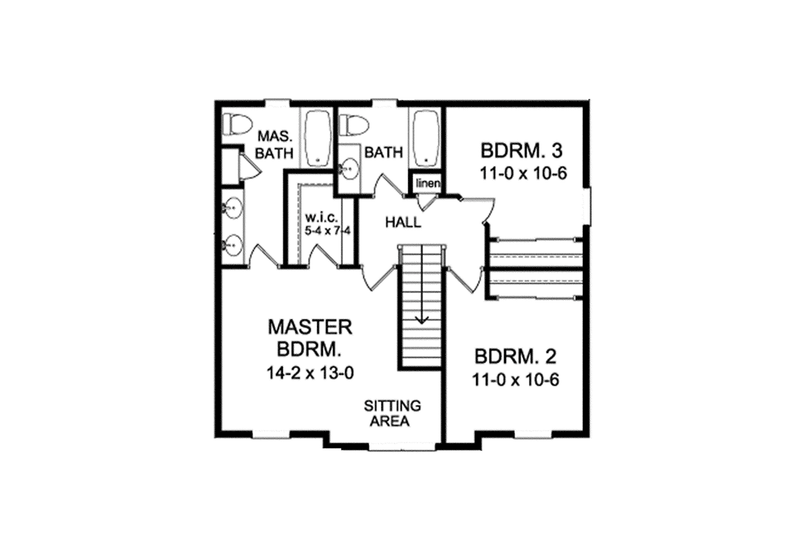

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 37' 8"

Height : 28' 6"

Width : 52'

Area

Basement Unfinished: 796 sq/ft

First Floor: 790 sq/ft height 9'

Garage: 484 sq/ft

Porch: 63 sq/ft

Second Floor: 823 sq/ft height 8'

Storage: 92 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 7:12

Roof Framing : Combination Truss/Conventional

Roof Type : Asphalt

Secondary Pitch : 12:12

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone

Framing : Wood - 2x6

Bedroom Features

Fireplace

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Kitchen Island

Kitchenette Wet Bar

Additional Room Features

Family Room Keeping Room

Main Floor Laundry

Master Sitting Area

Open Floor Plan

Storage Area

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Front Porch

Rooms

Bedroom 2:

116 sq/ft width 11' x depth 10' 6"

Bedroom 3:

116 sq/ft width 11' x depth 10' 6"

Covered Front Porch:

80 sq/ft

Dining Area:

147 sq/ft width 14' x depth 10' 6"

Family Room:

218 sq/ft width 14' 6" x depth 15'

Garage:

484 sq/ft width 22' x depth 22'

Garage Storage:

90 sq/ft width 9' x depth 10' 6"

Hall Bath:

58 sq/ft width 8' 4" x depth 7'

Kitchen:

131 sq/ft width 14' 6" x depth 9'

Laundry:

44 sq/ft width 7' 8" x depth 5' 8"

Master bath:

113 sq/ft width 9' x depth 12' 6"

Master Bedroom:

184 sq/ft width 14' 2" x depth 13'

Powder room:

35 sq/ft width 7' x depth 5'

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Roof Plan: ?” scale; this shows roof rafter or trusses and how the roof is framed.
CAD Plans are in AutoDesk Architecture.
