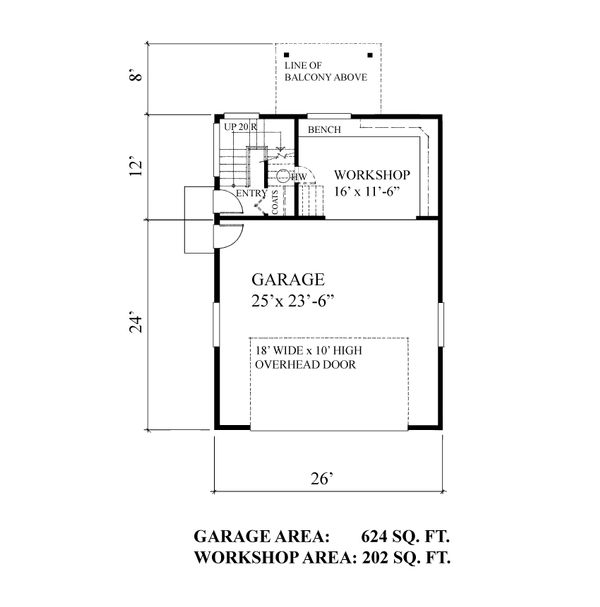

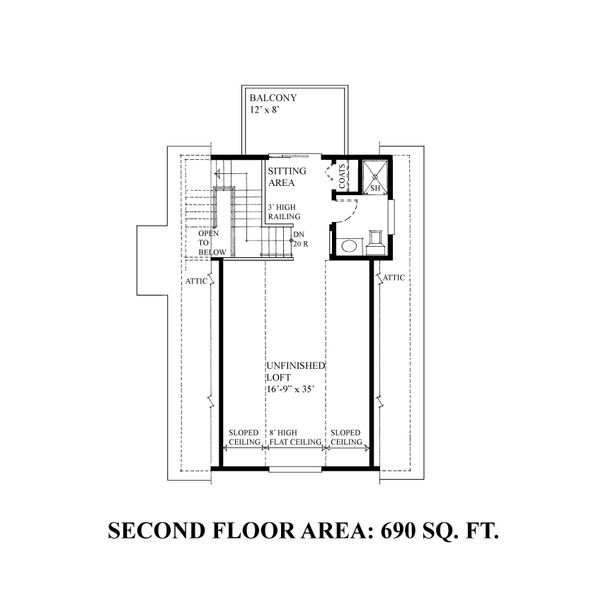

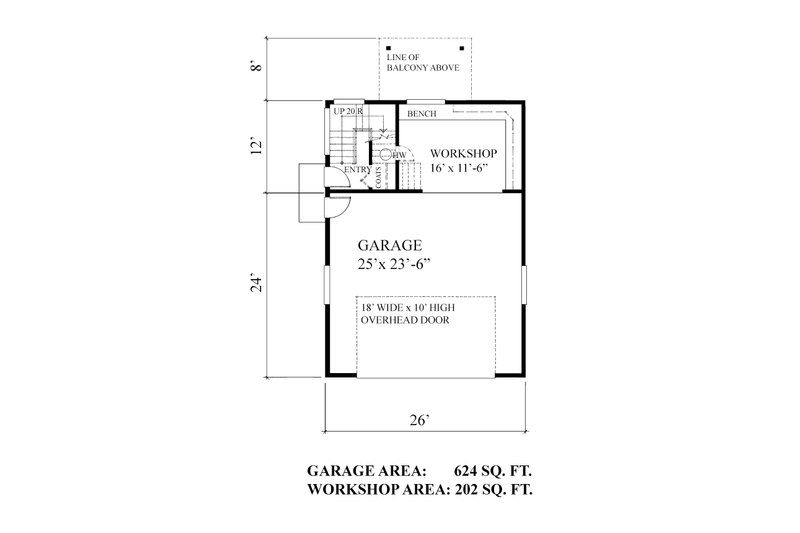

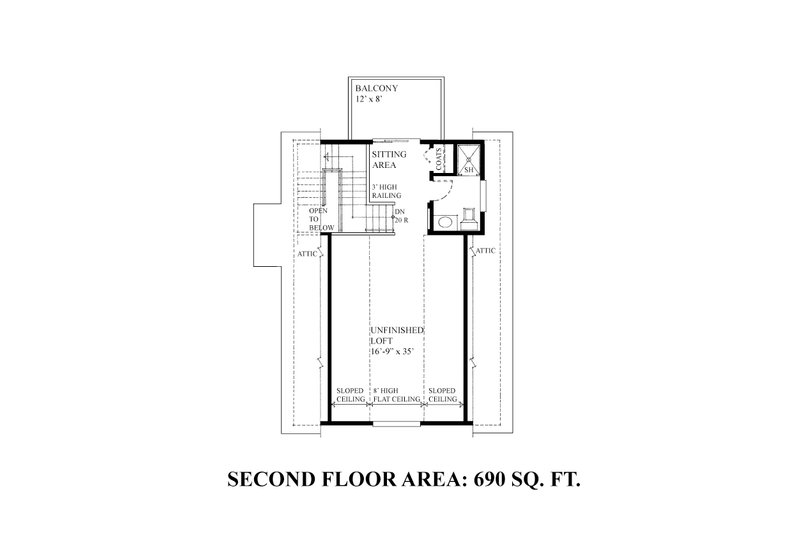

The oversized 18â€™ wide by 10â€™ high overhead garage door and 11â€™-6â€ ceiling height makes this a truly versatile RV Garage space. The spacious open workshop has ample workbench length with numerous upper storage cabinets and is well lit with the rear facing window location. The unfinished second level with vaulted ceilings is intentionally left undeveloped to allow your personalization of this space. A shed dormer contains a bathroom conveniently located at the top of the uniquely designed staircase.
624 sq/ft width 25' x depth 23' 6"
16 sq/ft width 11' 11" x depth 0"
198 sq/ft width 16' x depth 11' 6"
|5 Copy Set
|5 printed plan sets mailed to you.|
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|Ideal for level lot, single layer concrete poured directly on grade.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|A list of building supplies needed to construct the infrastructure of your new house.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
