PLAN 945-63
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 55' 1"
Height : 23' 6"
Width : 71' 1"
Area

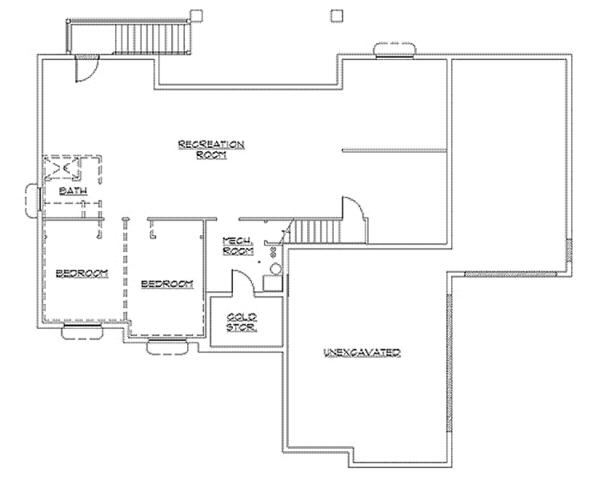

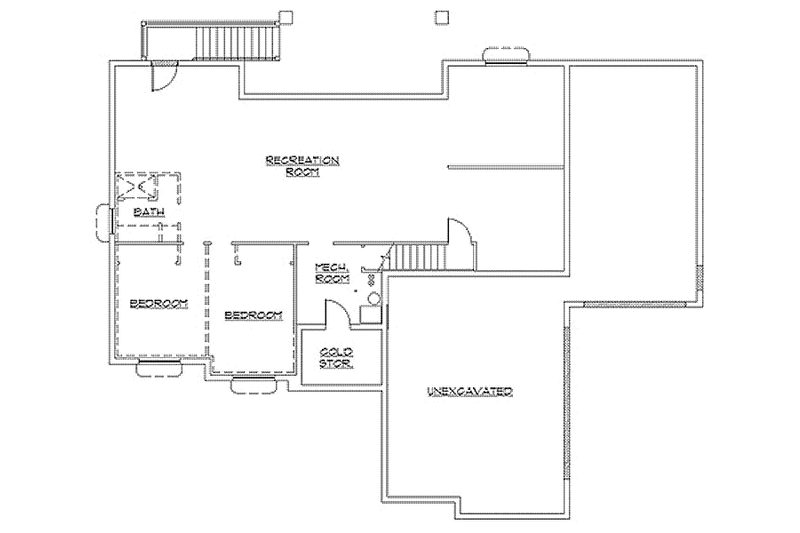

Basement Unfinished: 1520 sq/ft height 9'

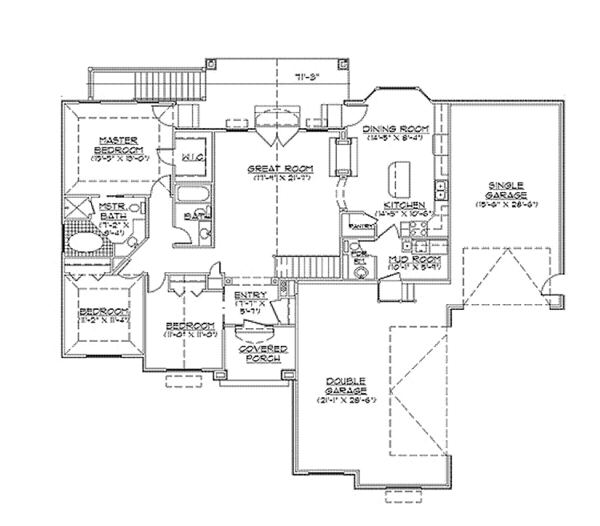

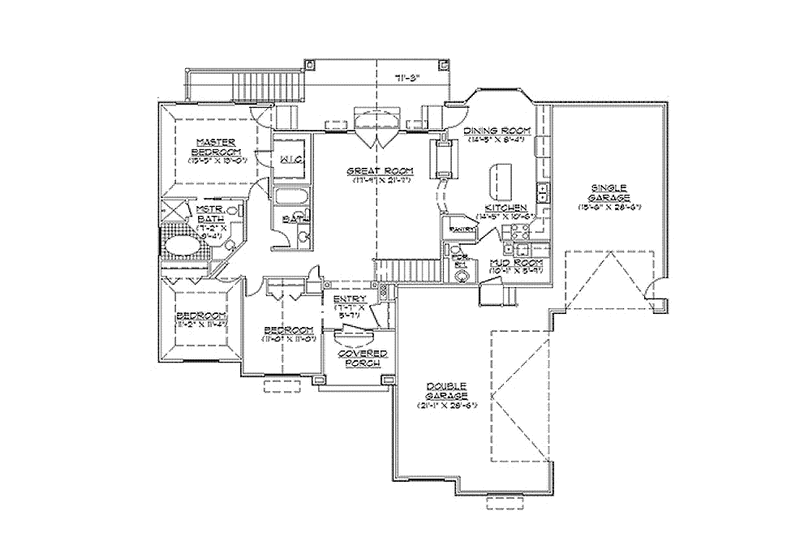

First Floor: 1681 sq/ft height 9'
Garage: 1109 sq/ft height 9'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Rooms
Dining Room:
width 14' 5" x depth 10' 6"
Entry:
width 7' 7" x depth 5' 7"
Garage:
width 21' 1" x depth 28' 6"
Garage 2:
width 15' 6" x depth 28' 6"
Great Room:
width 17' 9" x depth 21' 7"
Kitchen:
width 14' 5" x depth 10' 6"
Master Bath:
width 11' 6" x depth 8' 4"
Master Bedroom:
width 15' 5" x depth 13'
Master Closet:
width 5' 3" x depth 7' 2"
Mud Room:
width 10' 4" x depth 5' 9"
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

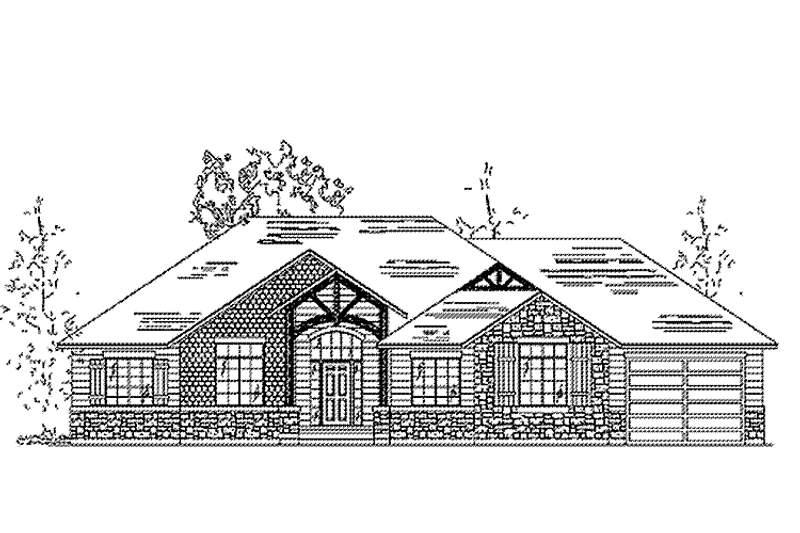

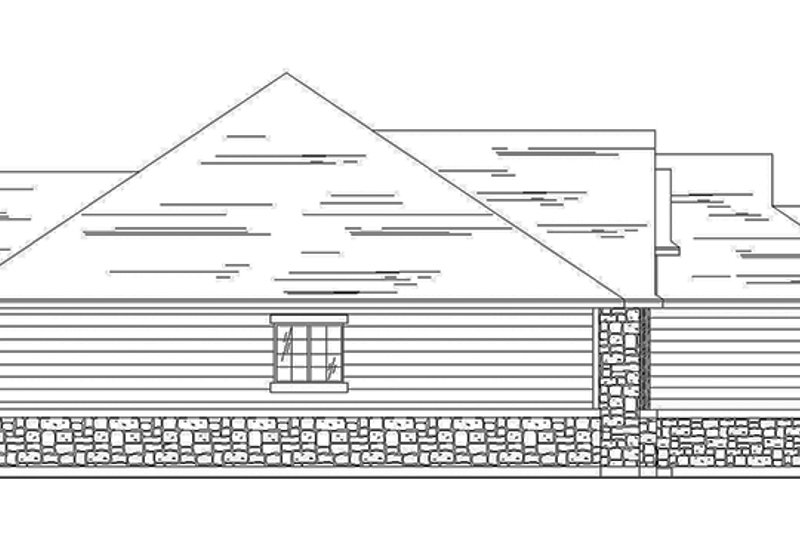

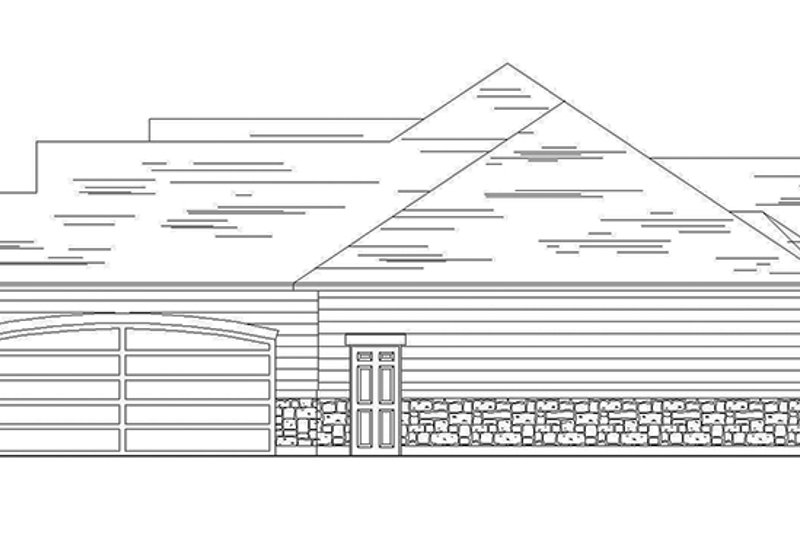

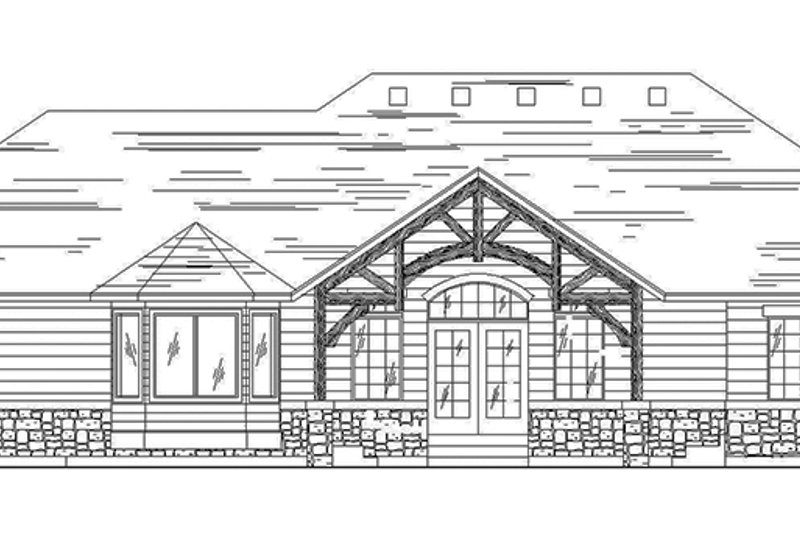

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Plan Set
$2000.00
$2000.00
$350.00
Foundation
$0.00
$0.00
Framing
$0.00
Additional Options
$500.00
$100.00
$39.00
$100.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
