PLAN 945-140

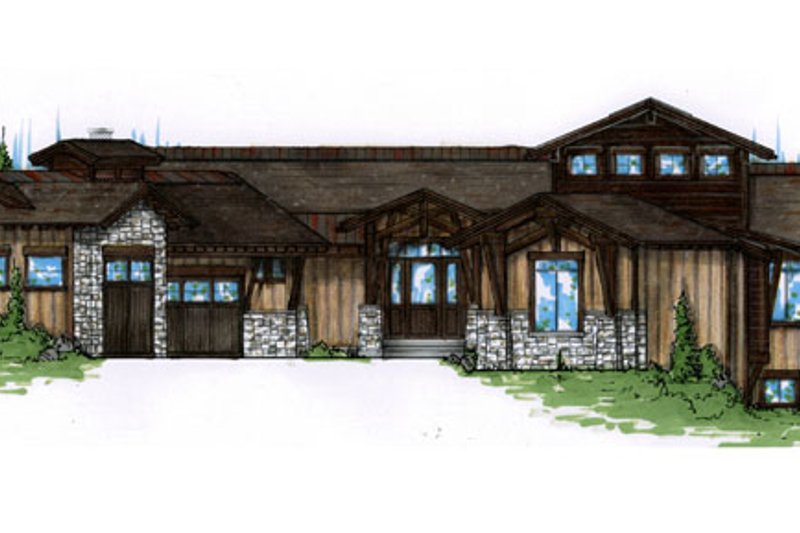

Home Plan - Craftsman Exterior - Front Elevation Plan #945-140
Home Plan - Craftsman Exterior - Front Elevation Plan #945-140
Home Plan - Craftsman Exterior - Rear Elevation Plan #945-140

Key Specs

sq ft





Select Plan Set Options

What's included?
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets
Printed sets showing plan in reverse, text and dimensions will be backwards.
Also order by phone: 1-888-447-1946
Cost-to-Build Estimates
Cost to Build Reports Only $19.99 for a Limited Time!
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 945-140

Key Specs

sq ft





This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Full Specs & Features

Depth : 83' 8"
Height : 26' 9"
Width : 103' 8"
Basement Living: 3353 sq/ft
First Floor: 3407 sq/ft
Garage: 852 sq/ft
Second Floor: 581 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 5:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6
Bedroom Features
2 Master Suites
Guest Suite
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Exercise Room
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Mud Room
Open Floor Plan
Vaulted / Cathedral Ceilings
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

Bedroom 3:

width 14' x depth 12' 5"

Covered Front Porch:

186 sq/ft

Dining Nook:

width 12' 3" x depth 12' 6"

Double Garage:

width 21' 10" x depth 24' 1"


width 26' 3" x depth 7' 8"

Exercise Room:

width 13' 2" x depth 19' 5"

Game Nook:

width 12' 6" x depth 13' 2"

Game Room:

width 14' x depth 16' 7"

Great Room:

width 31' 9" x depth 20' 9"

Guest Bedroom:

width 16' 9" x depth 14' 6"

Guest Bedroom Bath:

width 13' 10" x depth 5' 4"


width 19' 2" x depth 16' 8"

Laundry Room:

width 6' 6" x depth 11' 8"

Master Bath:

width 18' 6" x depth 12' 9"

Master Bedroom B:

width 15' 8" x depth 16' 3"

Master Closet:

width 14' x depth 17' 1"

Master Suite:

width 30' 6" x depth 16' 3"

Mud Room:

width 8' 3" x depth 14' 6"

Powder Room:

width 5' 9" x depth 6' 7"

Rear Deck:

834 sq/ft

Rec. Room:

width 24' 1" x depth 26' 1"

Single Garage:

width 14' 1" x depth 22' 7"


width 18' 8" x depth 22' 6"

Studio Bath:

width 18' 8" x depth 6' 6"


width 13' 7" x depth 17' 2"

Wet Bar:

width 8' 7" x depth 11' 7"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-888-447-1946
Plan Set
5 Copy Set :
5 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.


Daylight Basement:
Ideal for sloping lot, lower level of home partially underground.


Wood 2x6:
Wood 2x6

Additional Options

Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
