PLAN 51-1474
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

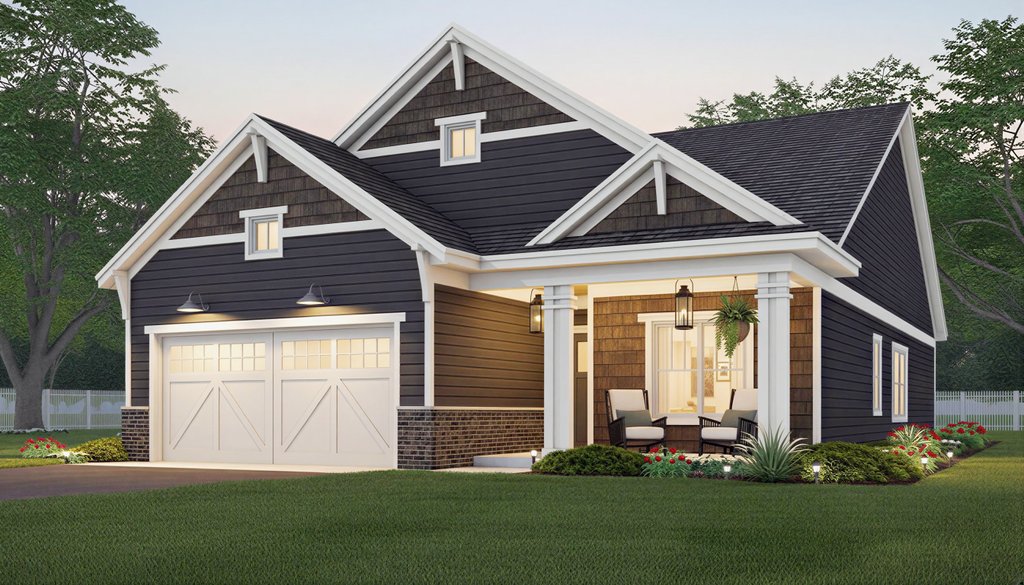

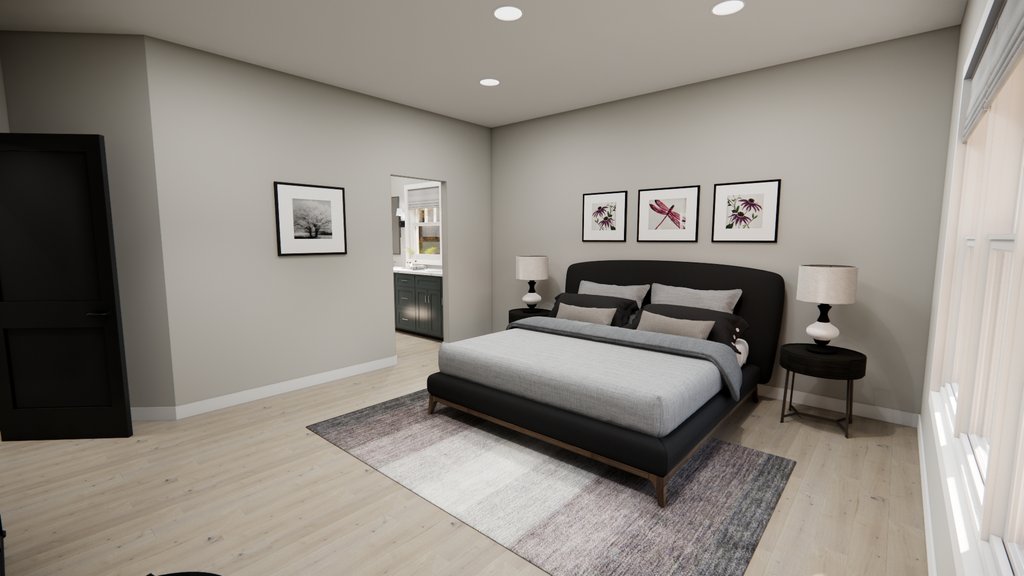

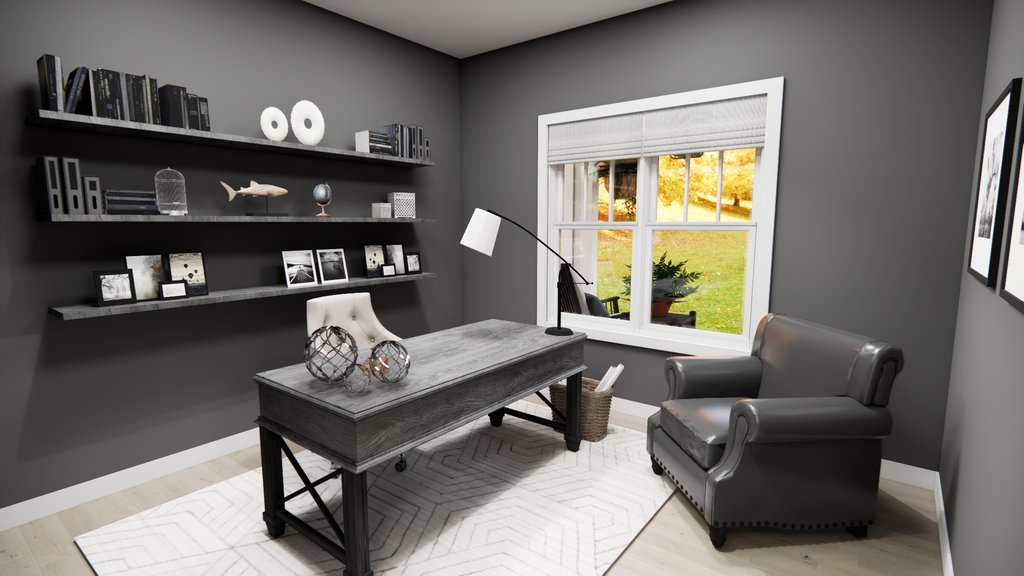

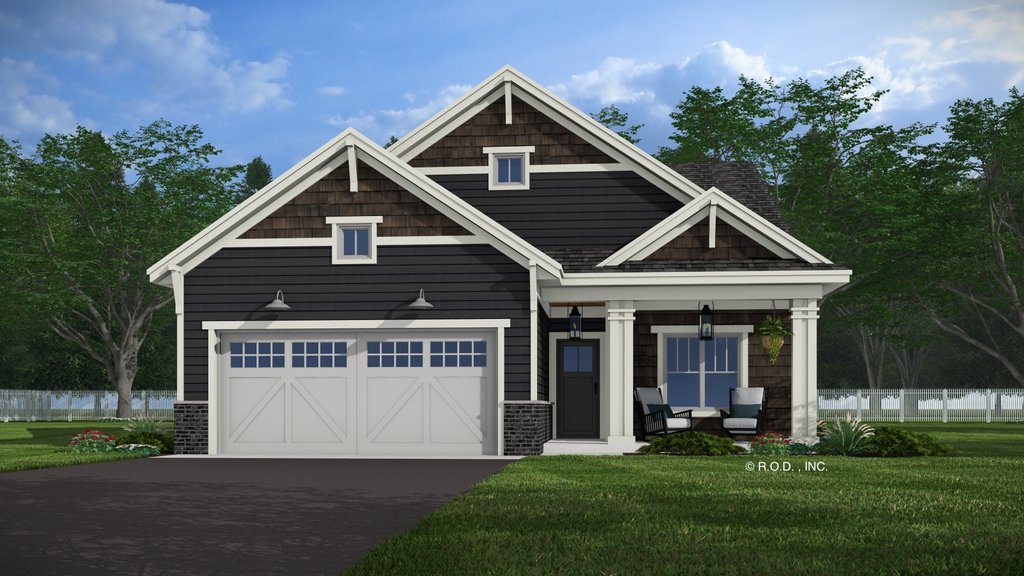

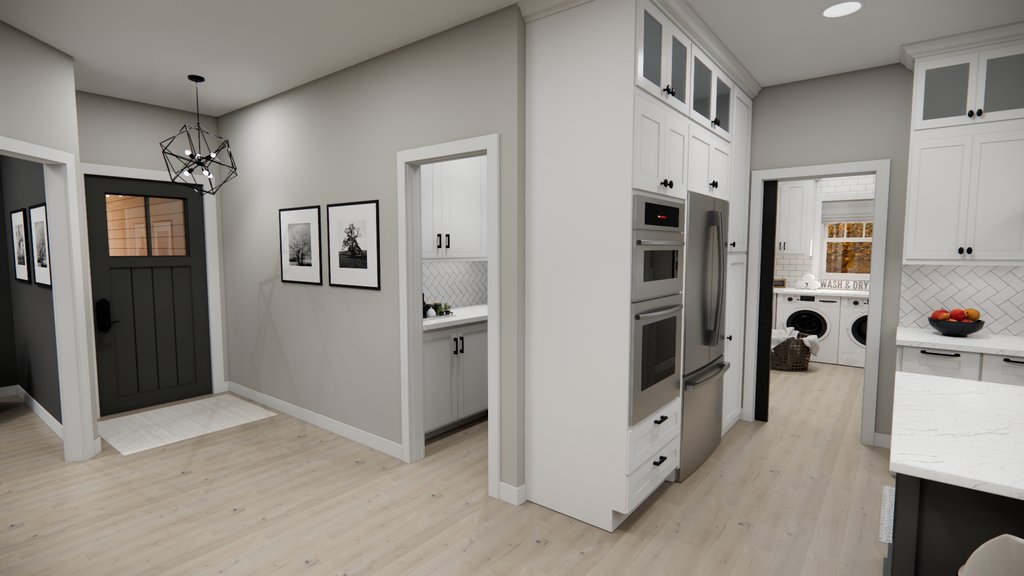

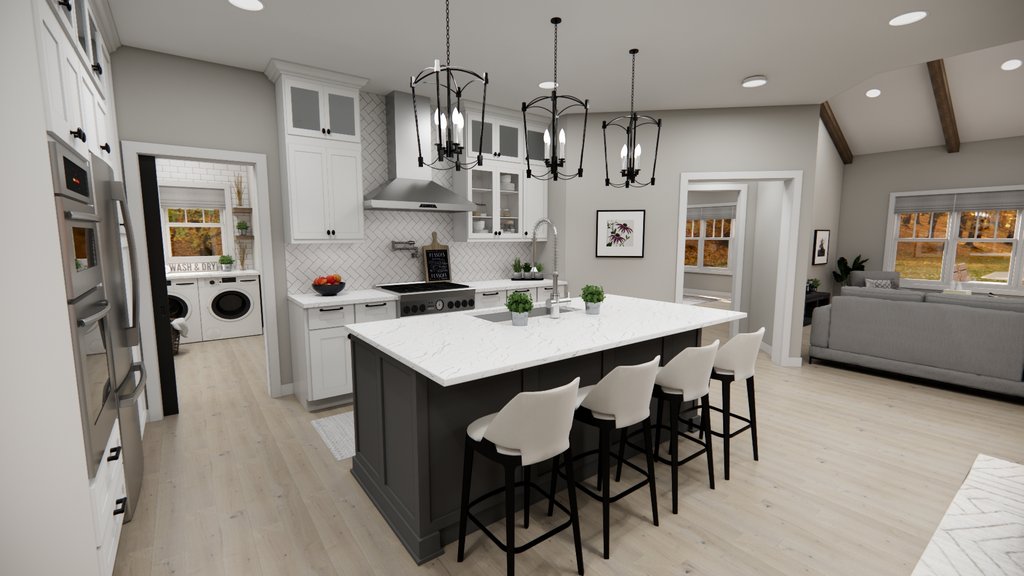

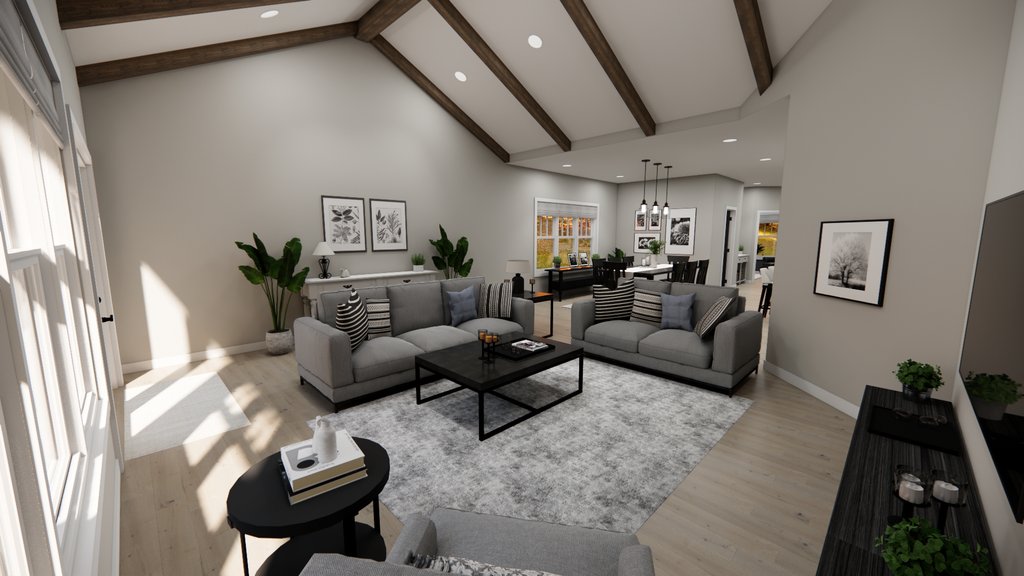

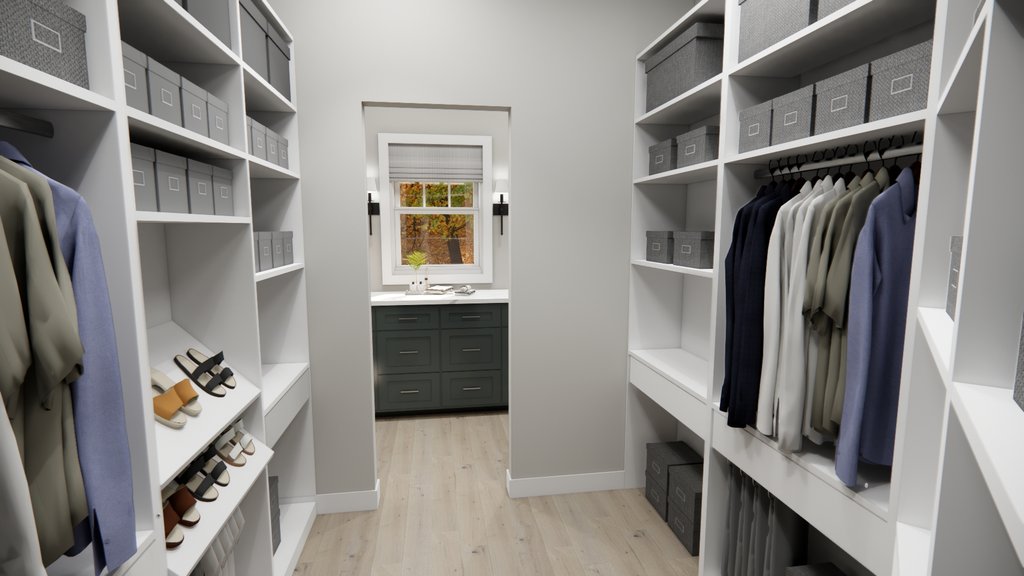

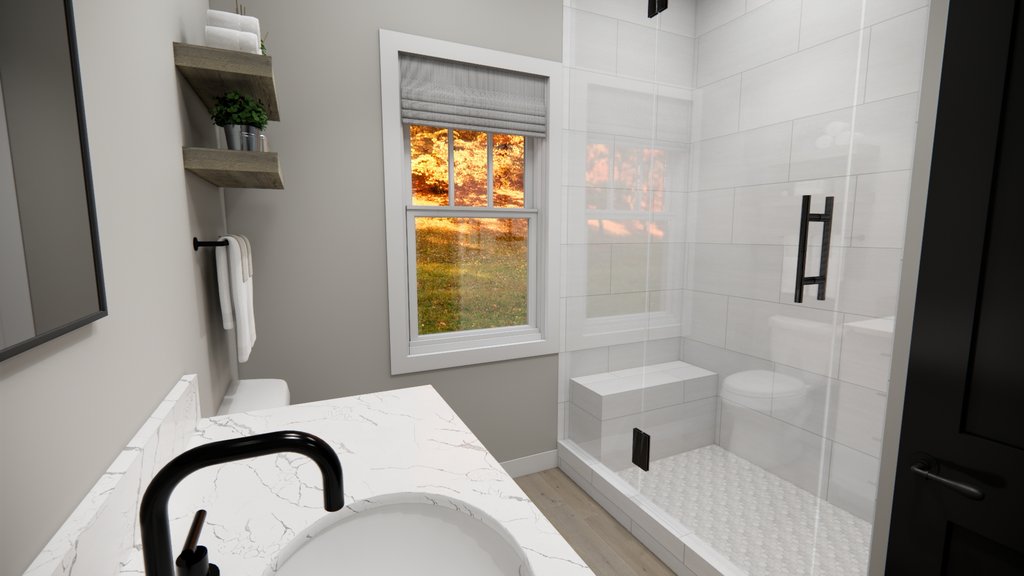

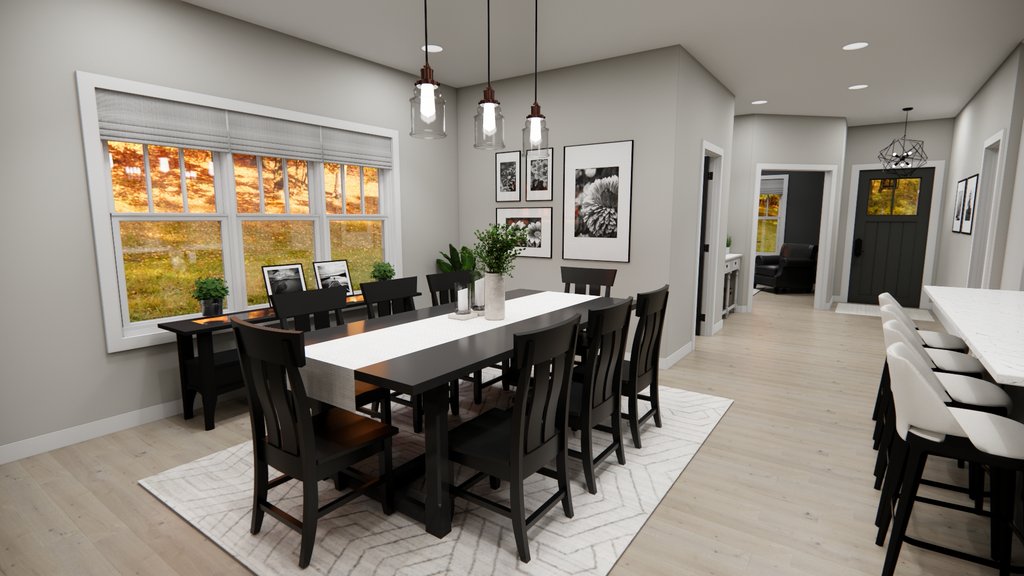

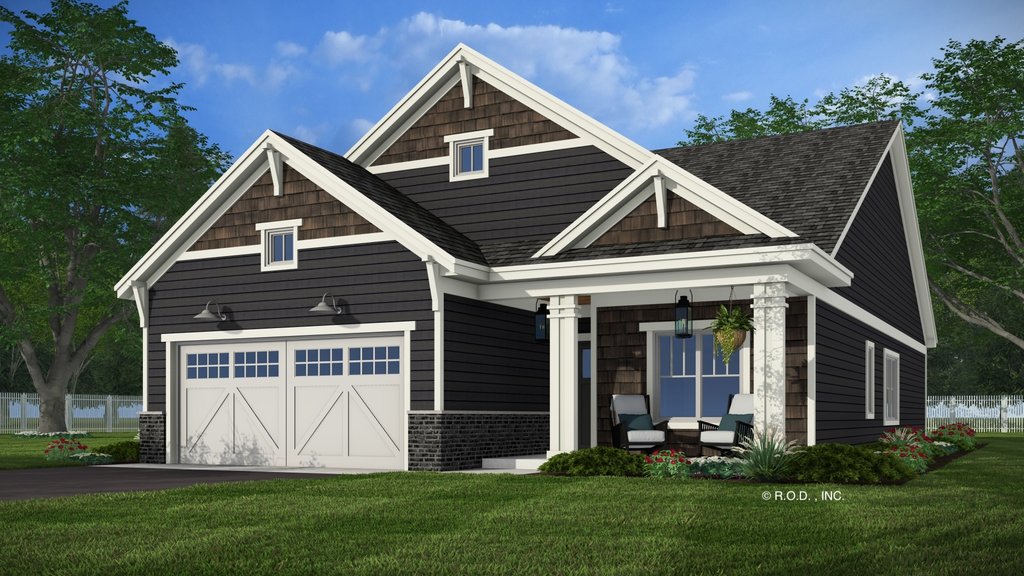

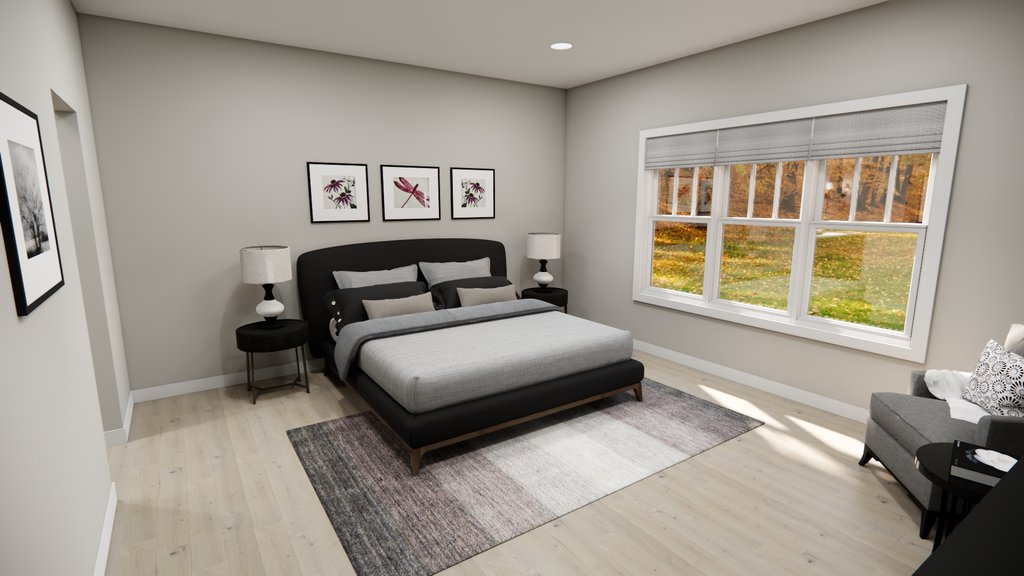

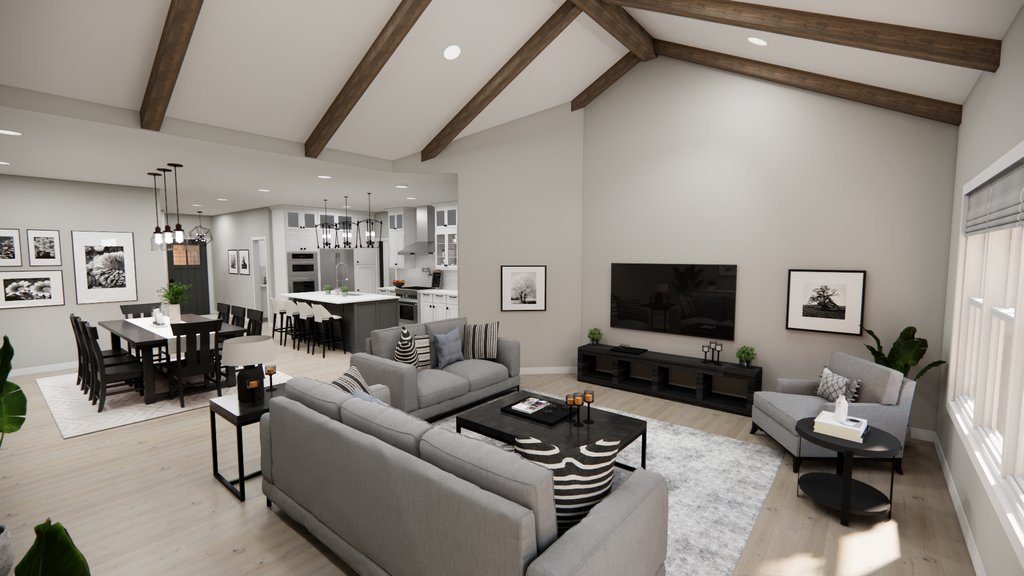

This cozy 1,688 sq. ft. bungalow features a warm and inviting design, starting with a welcoming front porch that sets the tone for the home’s charm. Inside, the kitchen shines as the heart of the home, with a large center island providing seating for four, a walk-in pantry for ample storage, and an adjacent dining area perfect for family meals. The great room offers a relaxed atmosphere with a vaulted ceiling and access to the rear of the home, creating a comfortable space for both entertaining and daily living. The main-level primary suite is a peaceful retreat, featuring a private bath and a roomy walk-in closet. An office space provides flexibility and can easily be converted into a second bedroom, while a dedicated laundry area adds to the convenience of this thoughtfully laid-out bungalow.
Floor Plans

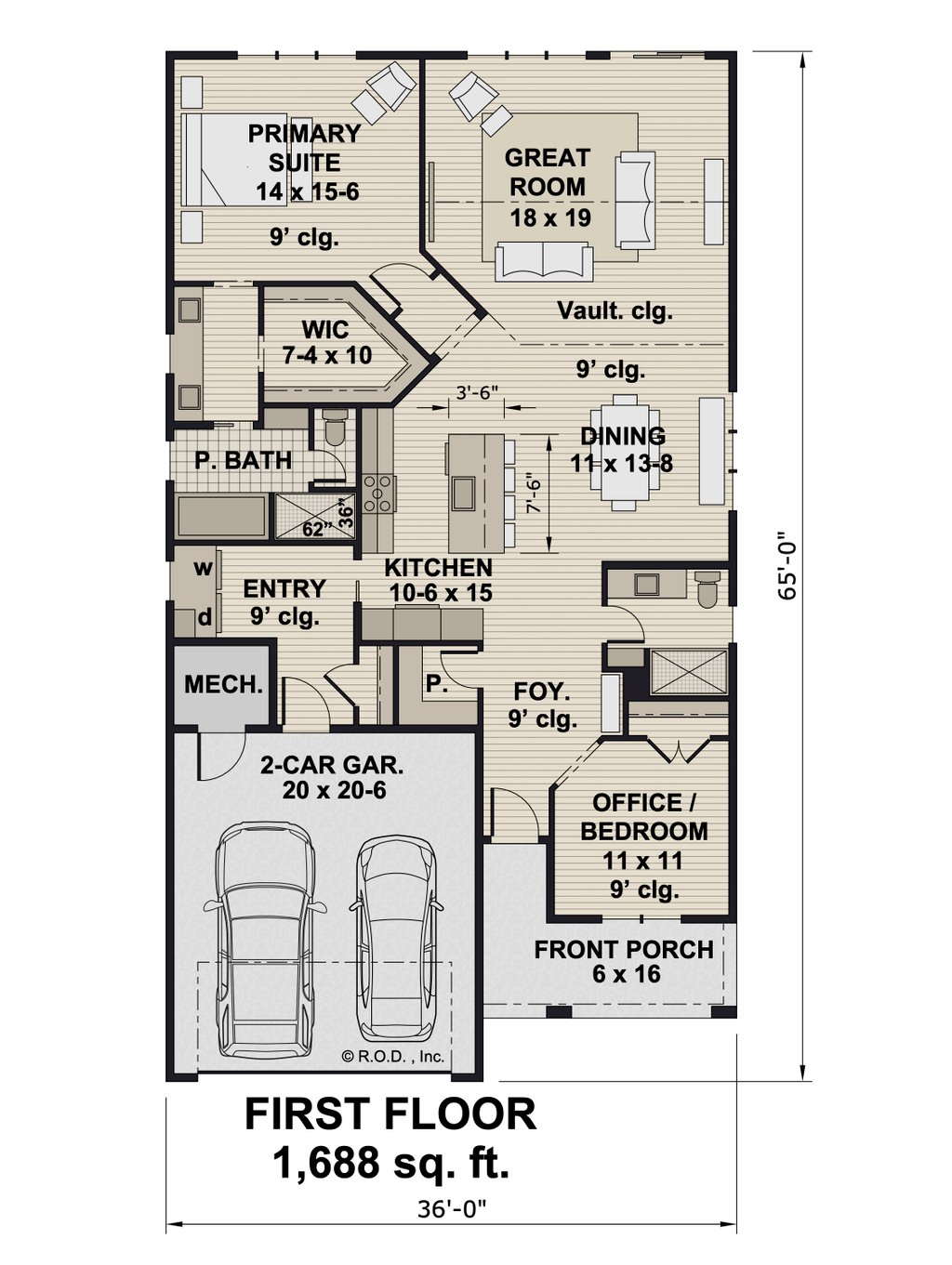

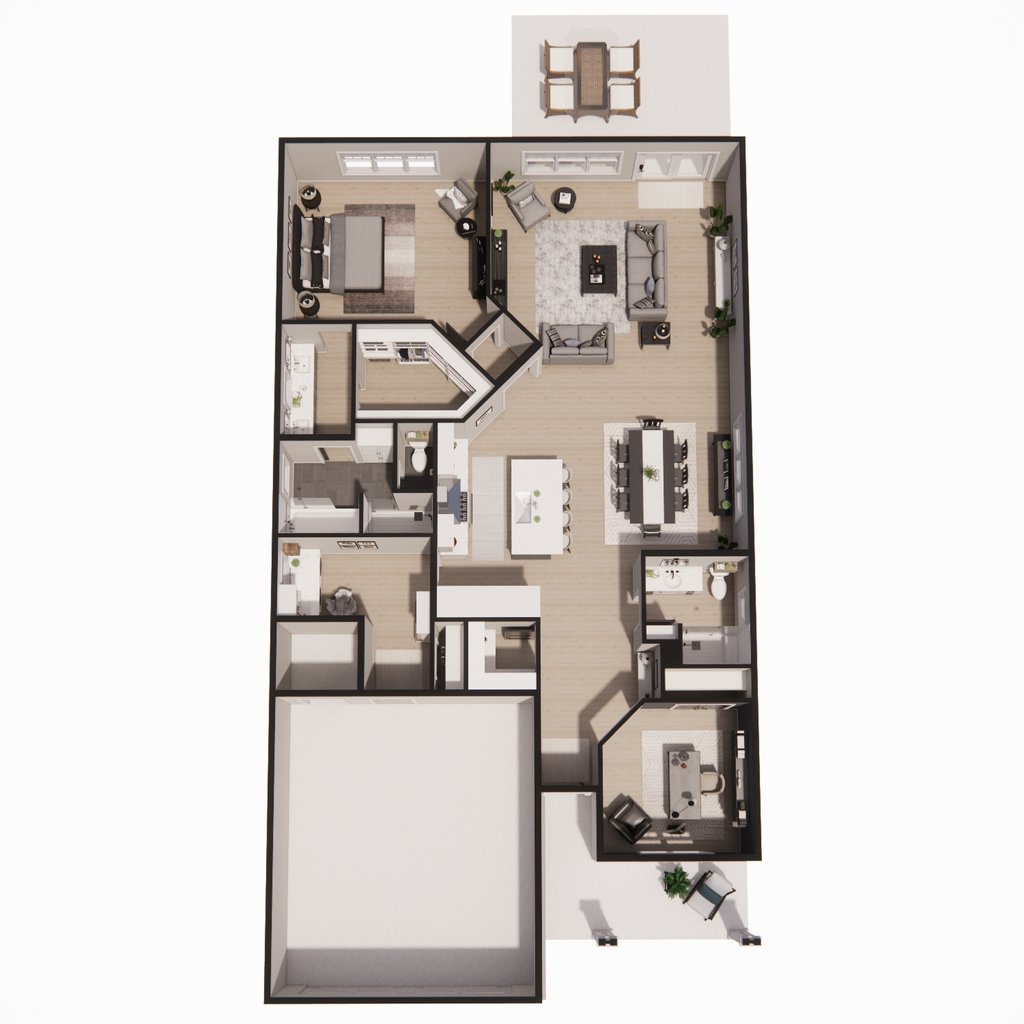

Floor Plan - Main Floor
Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 65'
Height : 24' 9"
Width : 36'
Area
Garage : 431 sq/ft
Main Floor : 1688 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 6:12
Roof Framing : Truss
Secondary Pitch : 8:12
Exterior Wall Framing
Framing : 2x6
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room

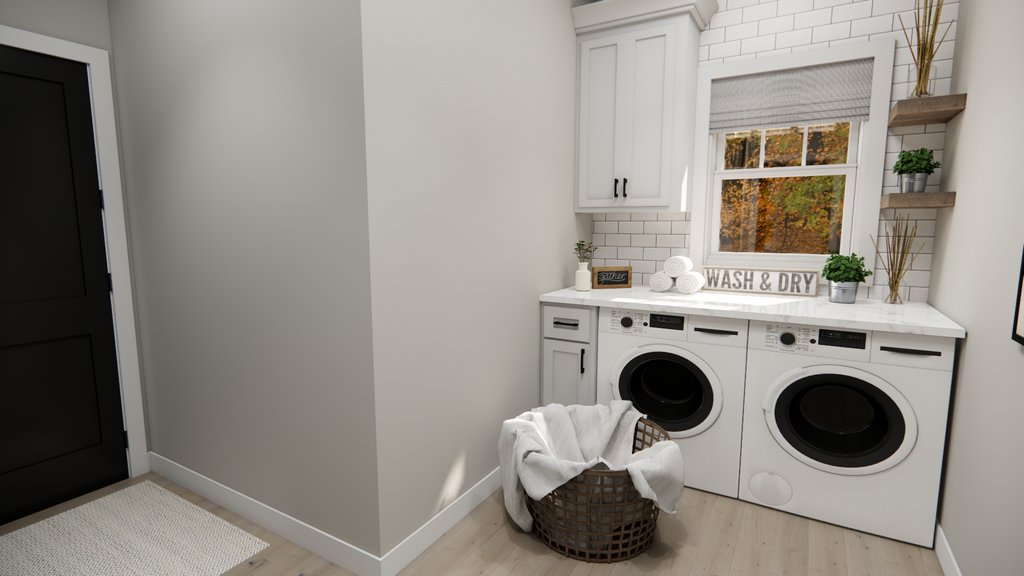

Main Floor Laundry
Garage Features

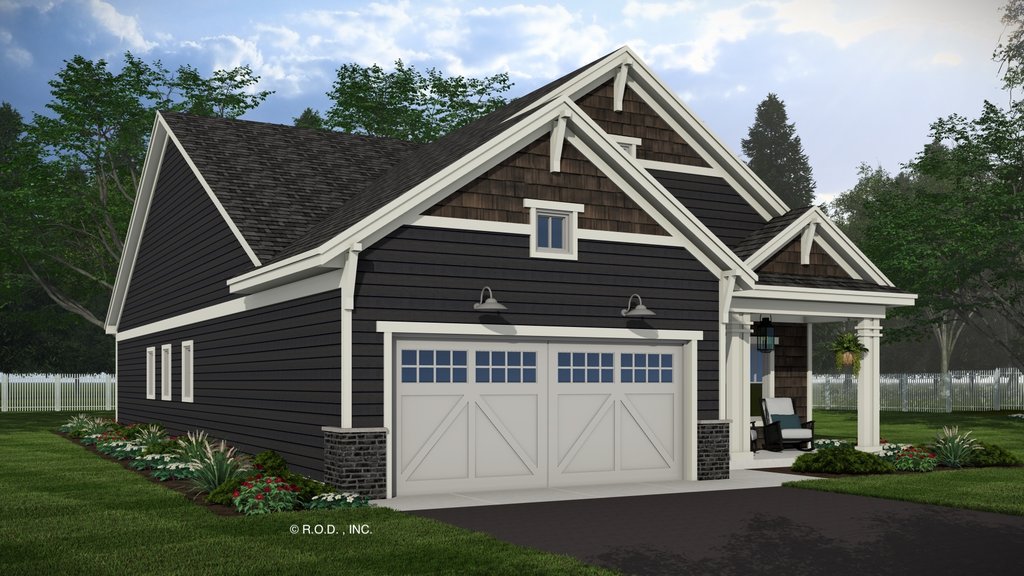

Front Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Outdoor Spaces

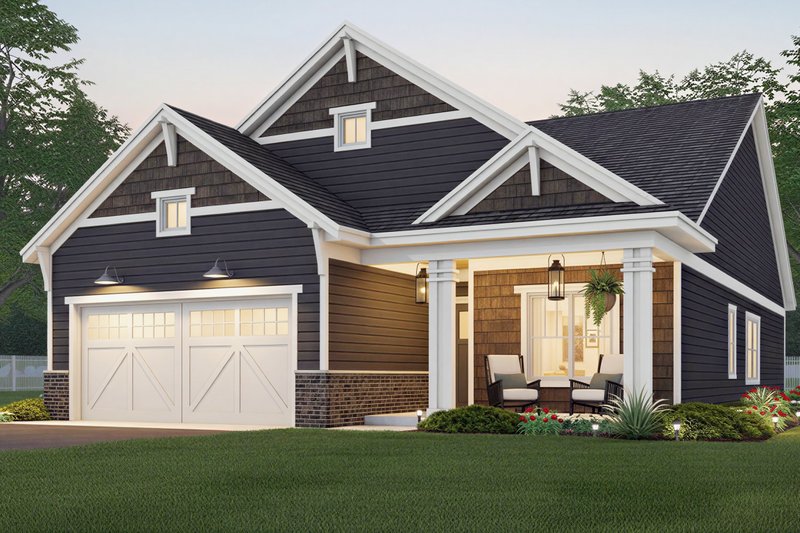

Covered Front Porch
More
Economical To Build
Energy Efficient Features
Energy Efficient Design
What's Included In This Plan Set
Plans are typically drawn to ¼” scale and include:
» See important
information before purchasing.
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Other Note(s): This plan will not contain an electrical layout.
Questions? Call 1-888-447-1946
Plan Set
PDF Set:
$2050.00
$2050.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set:
$2250.00
$2250.00
5 printed plan sets mailed to you.
5 Copy and PDF Set:
$2350.00
$2350.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
8 Copy Set:
$2350.00
$2350.00
8 printed plan sets mailed to you.
CAD Set:
$2700.00
$2700.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set:
$2050.00
$2050.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation
Crawlspace:
$0.00
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$400.00
$400.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x6:
$0.00
$0.00
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$250.00
$250.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$75.00
$75.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
