PLAN 112-262
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Design Highlights: - Cute and functional, this Craftsman home is perfect for narrow lots. - An Open Floor Plan combined with 9’ ceilings give this home a spacious feeling. - The Inviting Foyer leads to the Great Room with a view to the Covered Deck. - The Kitchen is open to the Dining and Great Rooms and features tons of cabinets and countertop space including a large peninsula with eating bar and even features a Walk-In Pantry beneath the stairway. - The Master Bedroom is located for privacy. - The Hall Bath serves two potential Master Bedrooms and guests alike. - The Covered Deck is a great place to entertain or relax. - The Laundry Room with its washer, dryer & sink is adjacent to the entrance from the two car Garage. - Upstairs, two Large Bedrooms share a full Bath. Room Sizes: Front Porch: 5/6x6/0 Foyer: 5/2x7/6 Great Room: 14/0x17/0 Kitchen: 8/2x9/6 Walk-In Pantry: 13/0x3/2 (Sloping Ceiling) Dining: 10/0x8/0 Den/Bedroom: 12/6x10/0 Master: 12/0x12/0 Main Floor Bath: 10/0x7/8 Master Closet: 8/6x2/0 Laundry: 10/0x5/6 Garage 19/0x21/6 Deck: 13/0x6/0 Bedroom 2: 14/6x11/6 Bedroom 2 Closet: 2/0x11/6 Bedroom 3: 14/6x10/0 Bedroom 3 Closet: 2/0x10/0 Upstairs Hall Bath: 8/0x5/0
Floor Plans

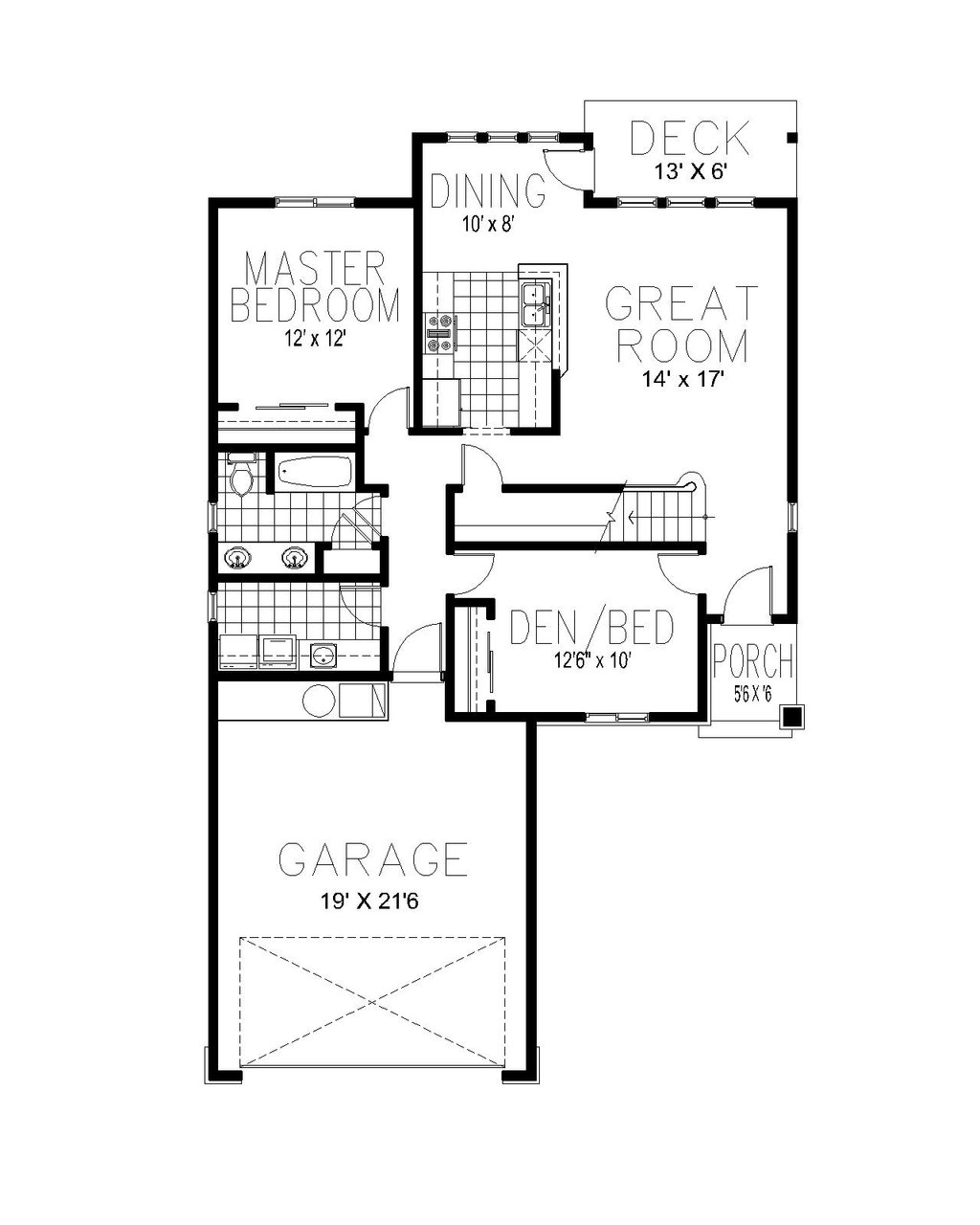

Floor Plan - Main Floor

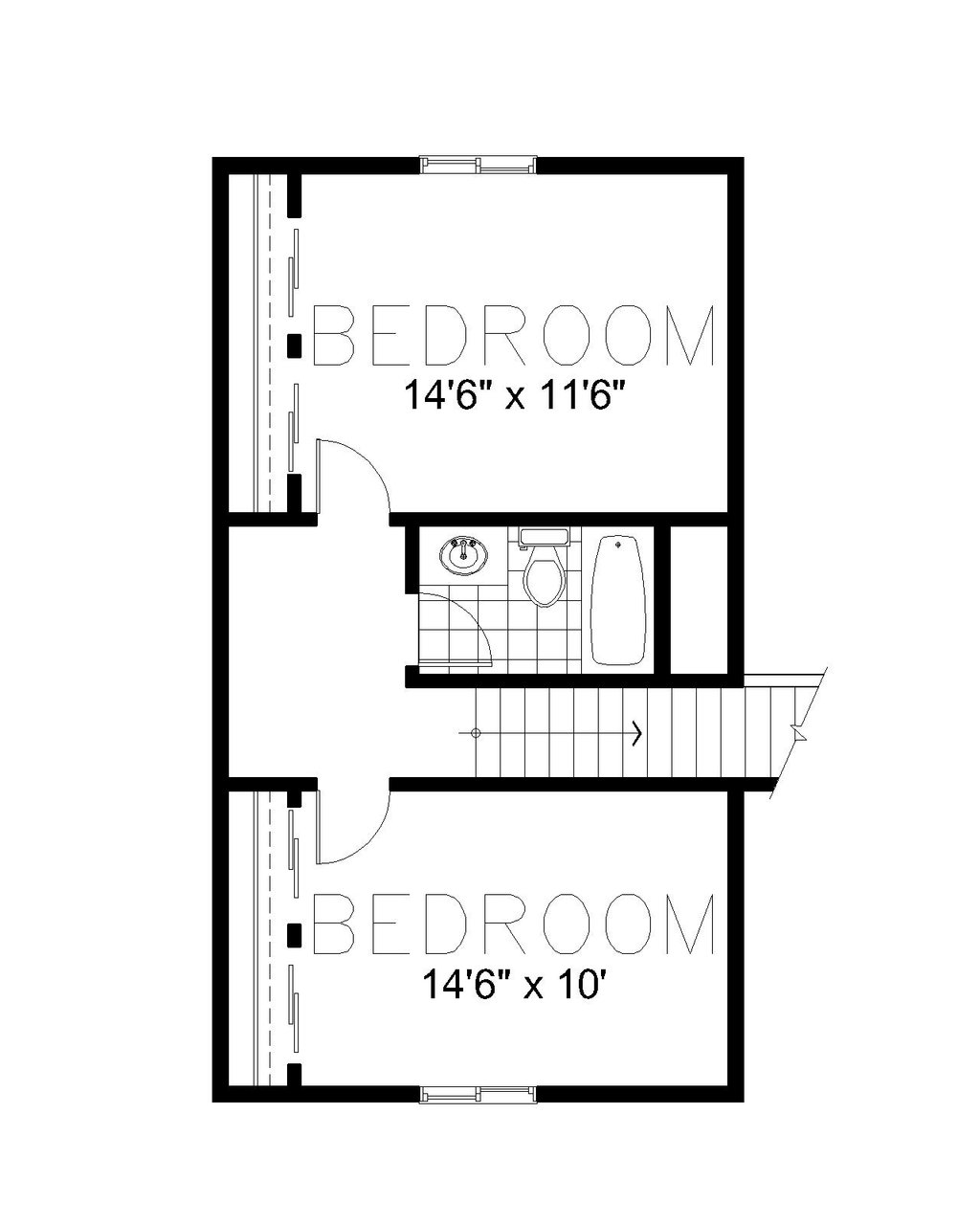

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 58'
Height : 23' 4"
Width : 36'
Area
Bonus : 576 sq/ft
Decks : 78 sq/ft
Garage : 477 sq/ft
Main Floor : 1120 sq/ft
Porch : 33 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Bonus Ceiling : 8'
Ceiling Details : Ceiling Heights: Main Floor: 9’-0” Upper Floor: 8’-0” Garage: 10’-6”
Garage Ceiling : 10' 6"
Main Ceiling : 9'
Roof
Primary Pitch : 8/12
Roof Framing : Roof Trusses
Roof Load : 40 psf Live/15psf Dead
Roof Type : Roof Trusses/Attic Trusses
Exterior Wall Framing
Exterior Wall Finish : Lap Siding/Stone/Shakes
Framing : 2"x6"
Insulation : R-21
Bedroom Features
2 Master Suites
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Kitchen Features
Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Garage Features
Front Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Economical To Build
Empty Nester
Suited For Vacation Home
Energy Efficient Features
Energy Efficient Design
What's Included In This Plan Set
Plans are typically drawn to ¼” scale (or as otherwise noted below) and include:
» See important
information before purchasing.
- Foundation Plan(s): Scale 1/4" = 1'-0". All dimensions and post locations. All foundation wall and footing sizes. Door and window sizes. Floor and deck joist sizes and spacing. Notes pertaining to code requirements. Mechanical and plumbing locations.
- Floor Plan(s): Scale 1/4" = 1'-0". All dimensions and post locations. Door and window sizes. Ceiling details. Floor and deck joist size and spacing. Notes pertaining to code requirements. Mechanical and plumbing locations. Square footage of floor area. Braced wall panel locations. Plate heights. Roof truss types.

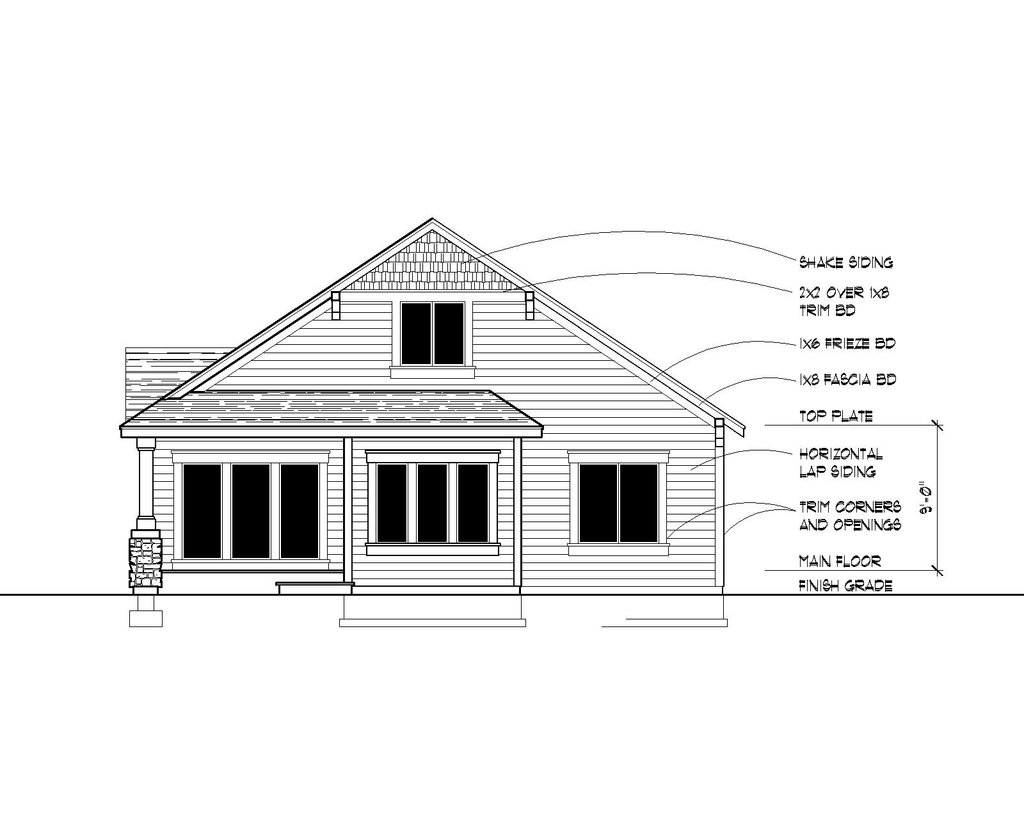

- Exterior Elevations: Front, rear, and side elevations. Scale front elevation: 1/4" = 1'-0" Sides and rear: 1/8” = 1’-0” or 3/16”= 1’-0” Description of finish materials. Overall height. Plate heights.
- Overhead Roof Plan(s): Scale 1/8" = 1'-0". Roof lines, ridges, valleys, and hips. Roof slopes. Square footage under roof. Roof overhangs.
- Cross Section(s): Scale 1/4" = 1'-0". Roof trusses and rafter framing. Special framing details. Plate heights and foundation wall heights. Structural members. Important: design loads and weather conditions vary by region. As a result the size, spacing, and layout of all structural elements in this home design may need approval by a structural engineer or code official based on your specific site location.
- Electrical Plan(s): Scale 1/4" = 1'-0". Location of electrical outlets. Location and type of light switches. Location of smoke and CO2 detectors.
- Kitchen Cabinet Elevation(s): Scale 1" = 1'-0". Dimensions and details of all cabinets.
- Detail Sheet(s): Scale 1" = 1'-0". Partial sections through various walls. Notes pertaining to code requirements. Call out of materials and connections. Outlooker details.
- Construction Notes / Detail(s): Braced panel locations, alternate braced panel locations, engineered panel locations, alternate braced panel details, and braced panel notes and tables. Design loads and weather conditions vary by region. As a result the size, spacing, and layout of all structural elements in this home design may need approval by a structural engineer or code official based on your specific site location. Scale 1/4" = 1'-0"
- Wall Section(s): Scale 1/2" = 1'-0". Materials and construction notes. Framing details. Roof truss detail at wall. Foundation wall details. Insulation requirements.
- Other Note(s): Braced wall panel notes. Nailing patterns. Header notes. Sheathing notes.
Questions? Call 1-888-447-1946
Plan Set
PDF Set:
$1000.00
$1000.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy and PDF Set:
$1250.00
$1250.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set:
$1600.00
$1600.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
CAD Single Build:
$1600.00
$1600.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Unlimited Build:
$1750.00
$1750.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Unlimited Build:
$2300.00
$2300.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Crawlspace:
$0.00
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Framing
Wood 2x6:
$0.00
$0.00
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$295.00
$295.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$75.00
$75.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$295.00
$295.00
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
