PLAN 42-484
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 53' 10"
Height : 21'
Width : 57' 8"
Area
Bonus: 312 sq/ft
First Floor: 1712 sq/ft
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Main Floor Master Bedroom
Split Bedrooms
Kitchen Features
Breakfast Nook
Kitchenette Wet Bar
Additional Room Features
Great Room Living Room
Main Floor Laundry
Open Floor Plan
Unfinished Future Space
Outdoor Spaces
Courtyard
Covered Front Porch
Covered Rear Porch
More
Wheelchair Adaptable
Rooms
3rd BR Closet:
14 sq/ft width 7' x depth 2'
Bathroom 2:
58 sq/ft width 8' x depth 7' 4"
Bedroom 2:
187 sq/ft width 11' x depth 17'
Bedroom 2 Closet:
12 sq/ft width 5' x depth 2' 6"
Bedroom 3:
121 sq/ft width 11' x depth 11'
Bedroom 3 Closet:
12 sq/ft width 5' x depth 2' 6"
Bonus Room - Finished:
252 sq/ft width 12' x depth 21'
Breakfast Room:
90 sq/ft width 9' x depth 10'
Coat Closet:
5 sq/ft width 2' 6" x depth 2'
Covered Porch:
120 sq/ft width 23' 8" x depth 5' 1"
Dining Room:
90 sq/ft width 9' x depth 10'
Foyer:
41 sq/ft width 5' x depth 8' 4"
Garage:
399 sq/ft width 19' x depth 21'
Garage Storage:
16 sq/ft width 5' x depth 3' 4"
Gathering Room:
416 sq/ft width 20' 2" x depth 20' 8"
Hall:
73 sq/ft width 3' 4" x depth 22'
Hall Bathroom:
58 sq/ft width 8' x depth 7' 4"
Hall Closet:
5 sq/ft width 2' 6" x depth 2'
Kitchen:
100 sq/ft width 10' x depth 10'
Linen Closet:
5 sq/ft width 2' x depth 2' 6"
Master Bathroom:
208 sq/ft width 13' x depth 16'
Master Bedroom:
208 sq/ft width 13' x depth 16'
Master Closet:
23 sq/ft width 5' x depth 4' 8"
Master Closet Two:
23 sq/ft width 5' x depth 4' 8"
Patio:
128 sq/ft width 16' x depth 8'
Porch - Front:
118 sq/ft width 23' 8" x depth 5'
Porch - Rear:
128 sq/ft width 16' x depth 8'
Utility Room:
51 sq/ft width 7' x depth 7' 4"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

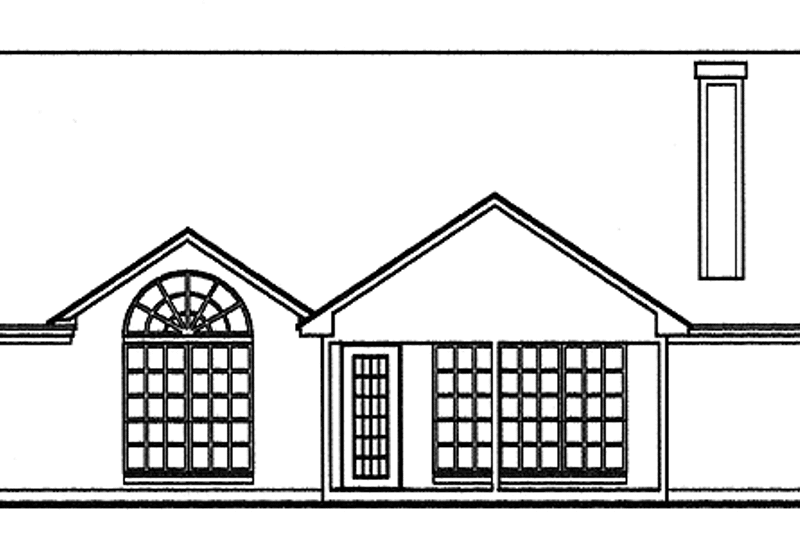

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

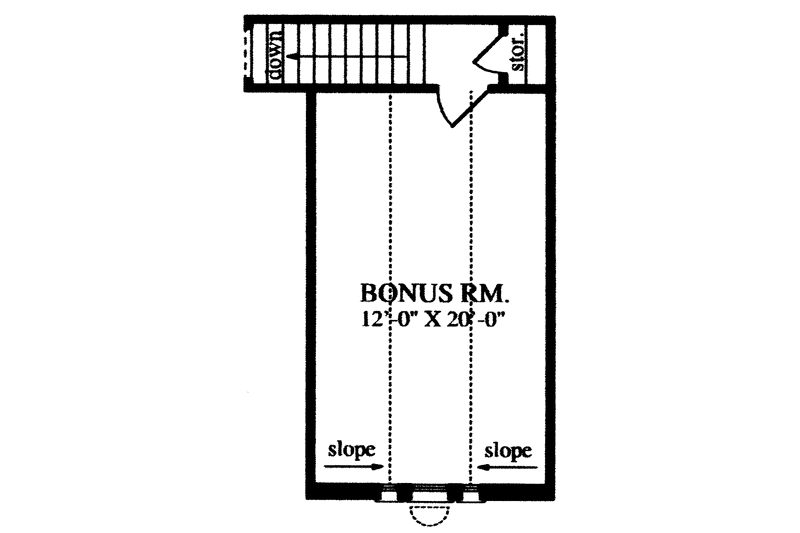

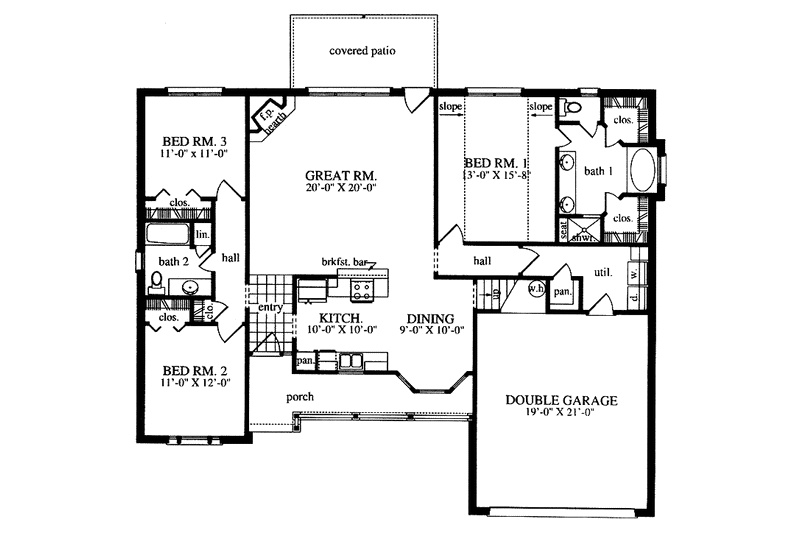

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$800.00
$850.00
$850.00
$750.00
Foundation
$0.00
$0.00
Framing
$0.00
Additional Options
$175.00
$60.00
$100.00
$39.00
$100.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
