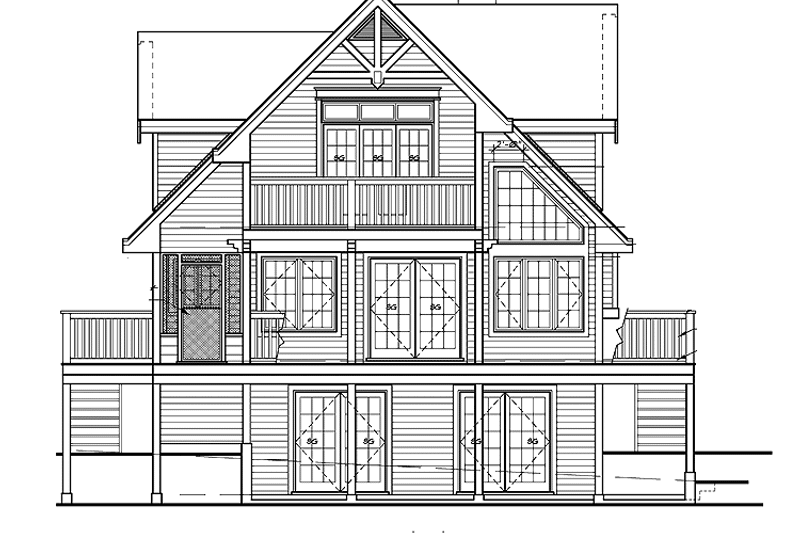

Cabin Exterior - Rear Elevation Plan #118-150

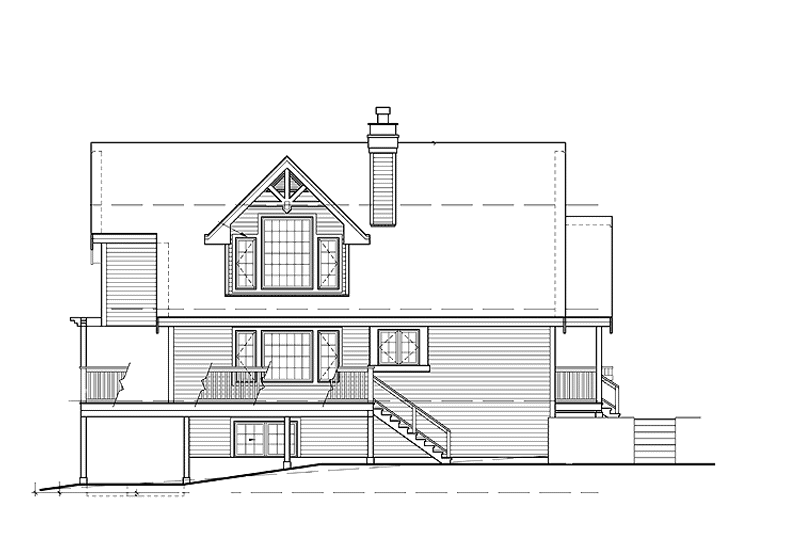

Cabin Exterior - Other Elevation Plan #118-150

Select Plan Set Options

What's included?

	Right-Reading Reverse $195.00 Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets $60.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design $100.00 Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide $39.00 Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design $100.00 Receive an overlay sheet with suggested placement of lighting fixtures.
	Material List $95.00 A list of building supplies needed to construct the infrastructure of your new house.
	Mirror Reversed Sets $120.00 Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$675.00

Best Price Guaranteed*

Also order by phone: 1-888-447-1946

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-888-447-1946

Questions?

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours: Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order, plus exclusive discounts and more.

Join for FREE

Learn More

PLAN 118-150

Key Specs

1741
sq ft

3
Beds

2
Baths

2
Floors

0
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

The great room in this compact design boasts a versatile floor plan, a wood stove, partially vaulted ceilings, window seats, access through French doors to a partially covered wraparound sundeck, access to a side screened porch via folding French doors, and adjacency to the kitchen. One of three bedrooms is on this level. The vaulted second floor is dedicated to two bedrooms, one a massive open studio bedroom with access to a large private covered balcony. The ceilings on this floor boast voluminous 10-and 11-foot heights. The unfinished daylight basement awaits your personal development whether it be additional bedrooms, recreational space, home theater, media room, or hobby/workshop. A separate private entrance transforms this level into an in-law suite or home office.

Floor Plans

Floor Plan - Main Floor Plan

Reverse

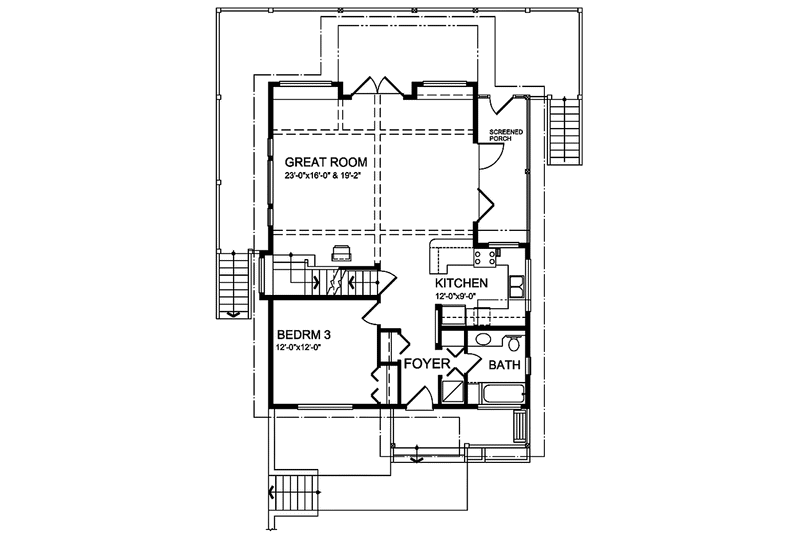

Cabin Floor Plan - Main Floor Plan Plan #118-150

Floor Plan - Upper Floor Plan

Reverse

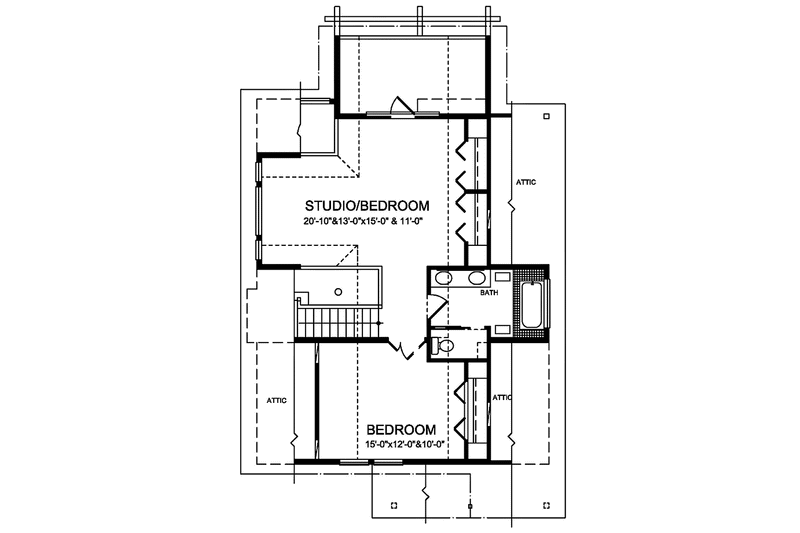

Cabin Floor Plan - Upper Floor Plan Plan #118-150

Floor Plan - Other Floor Plan

Reverse

Cabin Floor Plan - Other Floor Plan Plan #118-150

Full Specs & Features

Dimension

Depth : 51'
Height : 25'
Width : 42'

Area

Basement Unfinished: 978 sq/ft height 8'
First Floor: 978 sq/ft height 8'
Second Floor: 763 sq/ft height 10'

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Metal

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : Wood - 2x6

Bedroom Features

Fireplace
Split Bedrooms
Upstairs Master Bedrooms

Kitchen Features

Kitchenette Wet Bar

Additional Room Features

Great Room Living Room
Loft
Main Floor Laundry
Master Sitting Area
Open Floor Plan
Sunroom
Vaulted / Cathedral Ceilings

Outdoor Spaces

Balcony
Courtyard
Deck
Screened Porch
Wrap Around Porch

Rooms

Bedroom 2:

180 sq/ft width 15' x depth 12'

Bedroom 3:

144 sq/ft width 12' x depth 12'

Great Room:

368 sq/ft width 23' x depth 16'

Master Bedroom:

270 sq/ft width 20' 10" x depth 13'

What's Included In This Plan Set

See a sample plan set

Cover sheet with rendering and art floor plans
General notes and specifications
Site plan at 1/8″=1′-0″ or 1/4″= 1′-0″
Foundation plan at 1/4″=1′-0″
Main floor plan at 1/4″=1′-0″
Second floor plan at 1/4″=1′-0″, if applicable
Structural floor / roof information indicated either on the floor plans or separate framing plans for complicated designs
Electrical floor plans
Minimum of two cross sections at 1/4″=1′-0″
Details as required
All four elevations at 1/4″=1′-0″
Generic detail sheet
Plans are engineered by a structural engineer, but not stamped or sealed
Ground snow load 40 psf. (or composite roof live load 32 psf, dead load 10 psf for total roof design load 42 psf)Floor live load 40 psf
Balcony live load 60 psf and dead load 10 psf for total design load of 70 psf
Assumed soil bearing capacity 1560 psf
Electrical fixtures / switches / smoke alarms by location only on floor plans
Plumbing fixtures by location only on floor plans
Windows are called out as generic nominal sizes on floor plans, opening directions indicated on elevations

» See important information before purchasing.

Questions? Call 1-888-447-1946

Plan Set

5 Copy Set : $675.00	5 printed plan sets mailed to you.
PDF Set : $895.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set : $1095.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Walk Out Basement:
$0.00

Ideal for a sloping lot, lower level with outdoor access.

Framing

Wood 2x6:
$0.00

Wood 2x6

Additional Options

Right-Reading Reverse : $195.00	Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets : $60.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design : $100.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $39.00	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design : $100.00	Receive an overlay sheet with suggested placement of lighting fixtures.
Material List : $95.00	A list of building supplies needed to construct the infrastructure of your new house.
Mirror Reversed Sets : $120.00	A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
