PLAN 1010-100

Key Specs

1746
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

Lovely stone accents and Craftsman-style tapered columns add curb appeal to this great plan. Inside, the 1,746-square-foot layout splits the bedrooms with the master suite (boasting a walk-in closet and dual sinks) on one end and two additional bedrooms sharing a hall bath on the other. In the middle, the great room flows into the open dining area and the kitchen, where the snack bar stands ready for casual meals. Extra storage in the garage and a bench just inside are practical touches.

Floor Plans

Floor Plan - Main Floor Plan

Reverse

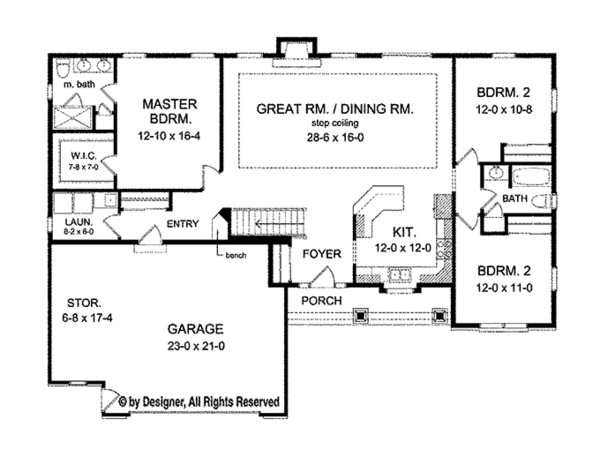

Ranch Floor Plan - Main Floor Plan Plan #1010-100

Full Specs & Features

Dimension

Depth : 45'
Height : 23'
Width : 63'

Area

Basement Unfinished: 1746 sq/ft
First Floor: 1746 sq/ft height 9'
Garage: 588 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12
Roof Framing : Combination Truss/Conventional
Roof Type : Asphalt
Secondary Pitch : 10:12

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6

Bedroom Features

Fireplace
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Kitchen Island

Additional Room Features

Great Room Living Room
Main Floor Laundry
Mud Room
Open Floor Plan
Storage Area

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Front Porch

Rooms

Bedroom 2:

width 12' x depth 10' 8"

Bedroom 3:

width 12' x depth 11'

Covered Front Porch:

90 sq/ft

Garage:

width 23' x depth 21'

Garage Storage:

width 6' 8" x depth 17' 4"

Great Room/ Dining Area:

width 28' 6" x depth 16'

Kitchen:

width 12' x depth 12'

Laundry Room:

width 8' 2" x depth 6'

Master Closet:

width 7' 8" x depth 7'

Master Bedroom:

width 12' 10" x depth 16' 4"

What's Included In This Plan Set

See a sample plan set All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Roof Plan: ?” scale; this shows roof rafter or trusses and how the roof is framed.
CAD Plans are in AutoDesk Architecture.

» See important information before purchasing.

Plan Set

5 Copy Set : $1250.00	5 printed plan sets mailed to you.
PDF Set : $1250.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set : $2500.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set : $800.00	One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Basement:
$0.00

Ideal for level lot, lower level of home partially or fully underground.

Framing

Wood 2x6:
$0.00

Wood 2x6

Additional Options

Additional Construction Sets : $60.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design : $100.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $39.00	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design : $100.00	Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets : $75.00	A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
