PLAN 42-433
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

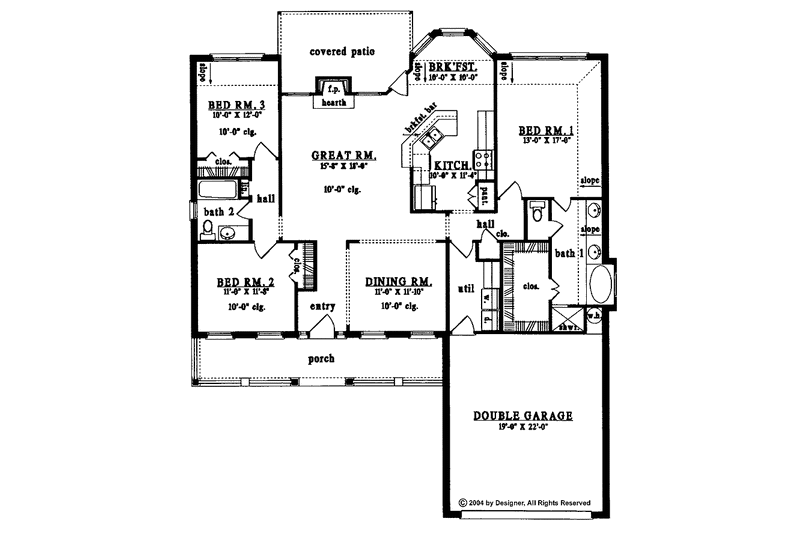

Floor Plans
Full Specs & Features
Dimension
Depth : 62' 10"
Height : 22'
Width : 52' 8"
Area
First Floor: 1747 sq/ft
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Open Floor Plan
Storage Area
Outdoor Spaces
Courtyard
Covered Front Porch
Covered Rear Porch
More
Wheelchair Adaptable
Rooms
3rd BR Closet:
14 sq/ft width 7' x depth 2'
Bathroom 2:
48 sq/ft width 6' 4" x depth 7' 8"
Bedroom 2:
128 sq/ft width 11' x depth 11' 8"
Bedroom 2 Closet:
10 sq/ft width 5' x depth 2'
Bedroom 3:
120 sq/ft width 10' x depth 12'
Bedroom 3 Closet:
10 sq/ft width 5' x depth 2'
Breakfast Room:
100 sq/ft width 10' x depth 10'
Coat Closet:
5 sq/ft width 2' 6" x depth 2'
Covered Porch:
184 sq/ft width 30' 8" x depth 6'
Dining Room:
130 sq/ft width 11' x depth 11' 10"
Foyer:
66 sq/ft width 6' x depth 11'
Front Entry:
66 sq/ft width 6' x depth 11'
Garage:
418 sq/ft width 19' x depth 22'
Gathering Room:
282 sq/ft width 15' 8" x depth 18'
Hall:
69 sq/ft width 3' 4" x depth 21'
Hall Bathroom:
48 sq/ft width 6' 4" x depth 7' 8"
Hall Closet:
5 sq/ft width 2' 6" x depth 2'
Kitchen:
113 sq/ft width 10' x depth 11' 4"
Laundry Room:
69 sq/ft width 6' 4" x depth 11'
Linen Closet:
30 sq/ft width 20' 6" x depth 1' 6"
Master Bathroom:
82 sq/ft width 6' 4" x depth 13'
Master Bedroom:
221 sq/ft width 13' x depth 17'
Master Closet:
62 sq/ft width 5' 8" x depth 11'
Pantry:
6 sq/ft width 2' x depth 3'
Patio:
163 sq/ft width 16' 4" x depth 10'
Porch - Front:
184 sq/ft width 30' 8" x depth 6'
Porch - Rear:
163 sq/ft width 16' 4" x depth 10'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

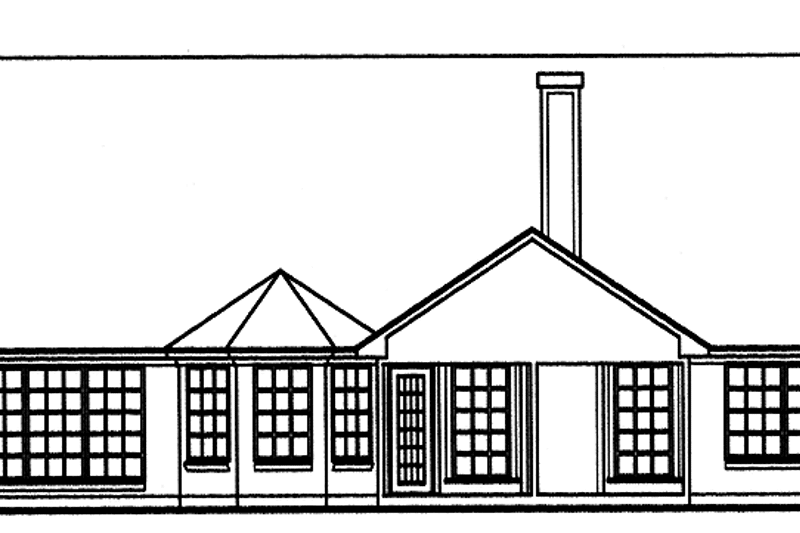

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$800.00
$850.00
$850.00
$750.00
Foundation
$0.00
$0.00
Framing
$0.00
Additional Options
$175.00
$60.00
$100.00
$39.00
$100.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
