PLAN 42-393
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

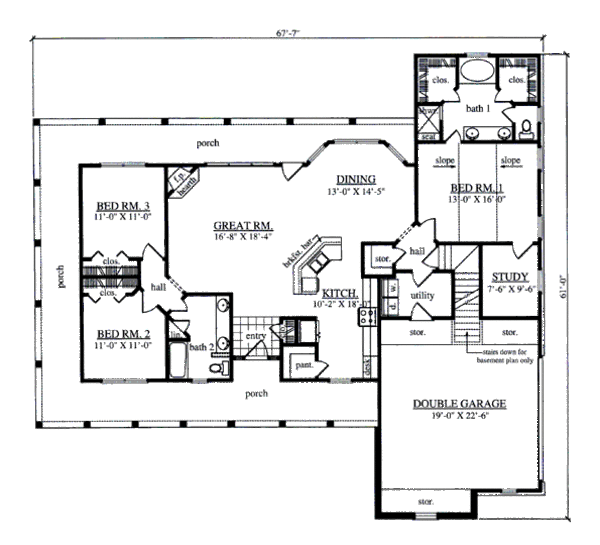

Floor Plans
Full Specs & Features
Dimension
Depth : 61'
Height : 25'
Width : 67' 7"
Area
Bonus: 285 sq/ft
First Floor: 1817 sq/ft height 10'
Garage: 555 sq/ft
Porch: 737 sq/ft
Ceiling
Ceiling Details : Ceiling slopes to 10'-0" in Bedroom 1.
Garage Ceiling : 8'
Main Ceiling : 8'
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Composition
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Stone/Horizontal Siding
Framing : 2"x4"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Play Flex Room
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Wrap Around Porch
Code Compliance
Irc 2006
Structural Information Provided
Foundation Drawing
Structural Roof Framing
Rooms
Bedroom 1:
208 sq/ft width 13' x depth 16'
Bedroom 2:
121 sq/ft width 11' x depth 11'
Bedroom 3:
121 sq/ft width 11' x depth 11'
Dining Room:
187 sq/ft width 13' x depth 14' 5"
Garage:
427 sq/ft width 19' x depth 22' 6"
Great Room:
305 sq/ft width 16' 8" x depth 18' 4"
Kitchen:
183 sq/ft width 10' 2" x depth 18'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$722.50
$765.00
$765.00
$1270.75
$680.00
Foundation
$0.00
$0.00
$0.00
Additional Options
$127.50
$34.00
$85.00
$33.15
$85.00
$0.00
