The graceful arches of the entry and front windows give this one-story Mediterranean plan an inviting and tasteful look. Inside, the formal dining room is perfect for hosting dinner parties while the open concept plan is terrific for family living. A long covered patio allows the party to move outdoors. Double doors lead to the relaxing master bedroom with its sprawling walk-in-closet and deluxe bath with garden tub and a sit-down shower. Rounding out the floor plan are two more bedrooms and a hall bath.

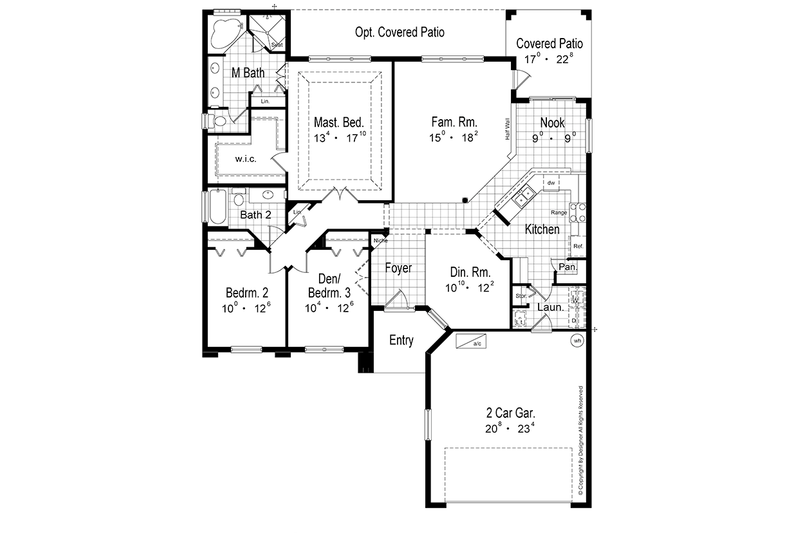

width 10' x depth 12' 6"
Bedroom 3/ Den:
width 10' 4" x depth 12' 6"
width 9' x depth 9'
Covered Rear Porch:
166 sq/ft width 17' x depth 22'
width 10' 10" x depth 12' 2"
width 15' x depth 18' 2"
480 sq/ft width 20' 8" x depth 23' 4"
width 13' 4" x depth 17' 10"
