PLAN 417-482

Home > Style > Mediterranean

Key Specs

1868
sq ft

4
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This innovative plan features an angled entry into the home, lending visual impact to the facade and giving the interior floor plan space for a fourth bedroom. A fabulous central living area with a volume ceiling includes a dining area with kitchen access, a great room with a built-in media center, and access to the rear covered patio. The bayed breakfast area with another volume ceiling shares natural light with the tiled kitchen. The kitchen and breakfast nook overlook the outdoor living space, which even offers an optional summer kitchen--great for entertaining. A plush master suite opens from the great room through a privacy door and offers vistas to the rear and side grounds.

Floor Plans

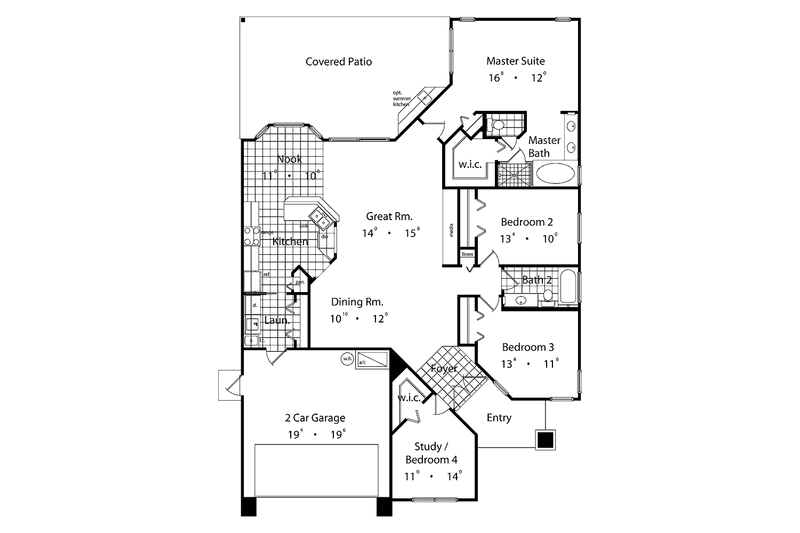

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

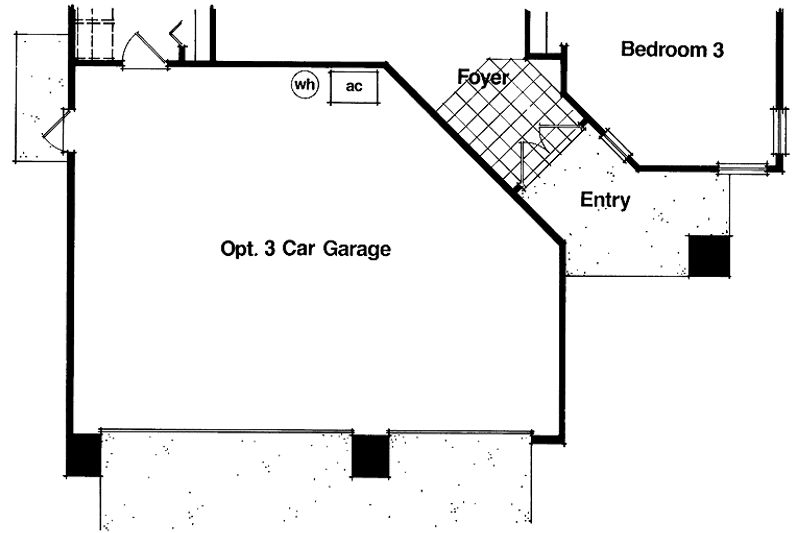

Floor Plan - Other Floor

Reverse

Full Specs & Features

Dimension

Depth : 66'

Height : 20'

Width : 45'

Area

First Floor: 1868 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Block

Bedroom Features

Formal Dining Room

Main Floor Master Bedroom

Kitchen Features

Breakfast Nook

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Great Room Living Room

Main Floor Laundry

Open Floor Plan

Outdoor Spaces

Courtyard

Covered Rear Porch

Rooms

3rd BR Closet:

13 sq/ft width 2' x depth 6' 7"

Bathroom 2:

49 sq/ft width 5' 4" x depth 9' 3"

Bedroom 2:

130 sq/ft width 13' x depth 10'

Bedroom 2 Closet:

23 sq/ft width 2' 4" x depth 9' 11"

Bedroom 3:

109 sq/ft width 9' 10" x depth 11' 2"

Bedroom 3 Closet:

23 sq/ft width 2' 4" x depth 9' 11"

Bedroom 4:

144 sq/ft width 10' 8" x depth 13' 7"

Breakfast Room:

100 sq/ft width 10' 2" x depth 9' 11"

Dining Room:

115 sq/ft width 10' 10" x depth 10' 8"

Foyer:

21 sq/ft width 4' 4" x depth 5'

Garage:

367 sq/ft width 19' x depth 19' 4"

Gathering Room:

233 sq/ft width 14' x depth 16' 8"

Kitchen:

136 sq/ft width 11' 8" x depth 11' 8"

Laundry Room:

44 sq/ft width 6' 4" x depth 7'

Master Bathroom:

169 sq/ft width 17' 6" x depth 9' 8"

Master Bedroom:

190 sq/ft width 16' 4" x depth 11' 8"

Master Closet:

49 sq/ft width 6' 8" x depth 7' 5"

Porch - Front:

200 sq/ft width 7' 4" x depth 27' 4"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

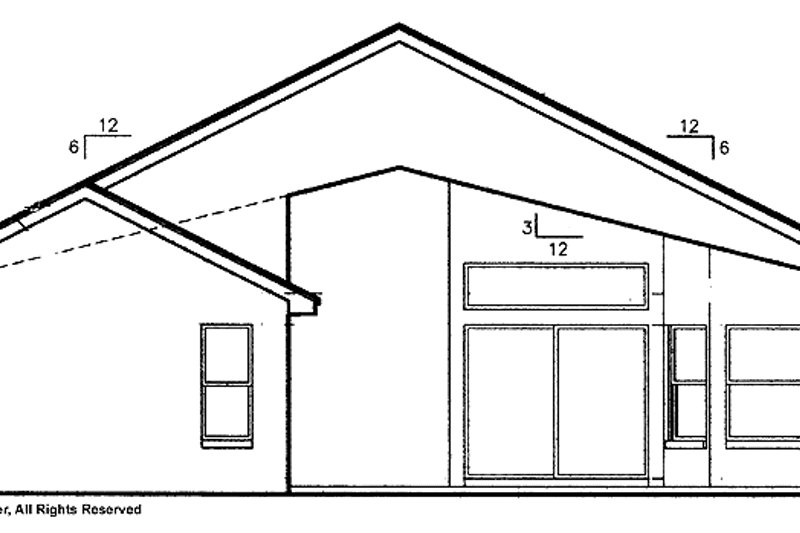

Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-888-447-1946

Plan Set

PDF Set:
$807.50

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$977.50

5 printed plan sets mailed to you.

5 Copy and PDF Set:
$1105.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Single Build:
$1615.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Study Set:
$510.00

One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Block:
$0.00

Concrete Block Exterior Walls (Upper Levels may be wood-framed)

Additional Options

Additional Construction Sets:
$42.50

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$85.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$85.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List:
$72.25

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Mirror Reversed Sets:
$25.50

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
