Plan Description
This country design floor plan is 1875 sq ft and has 3 bedrooms and 2.5 bathrooms.
Floor Plans

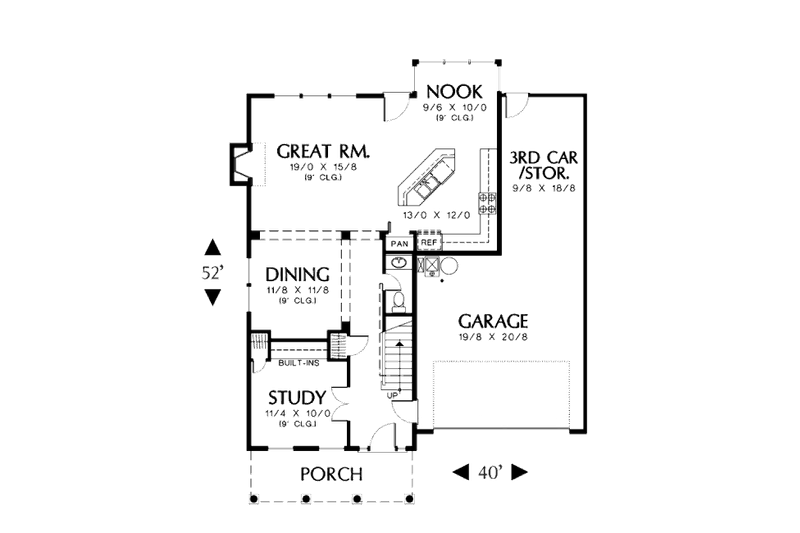

Floor Plan - Main Floor

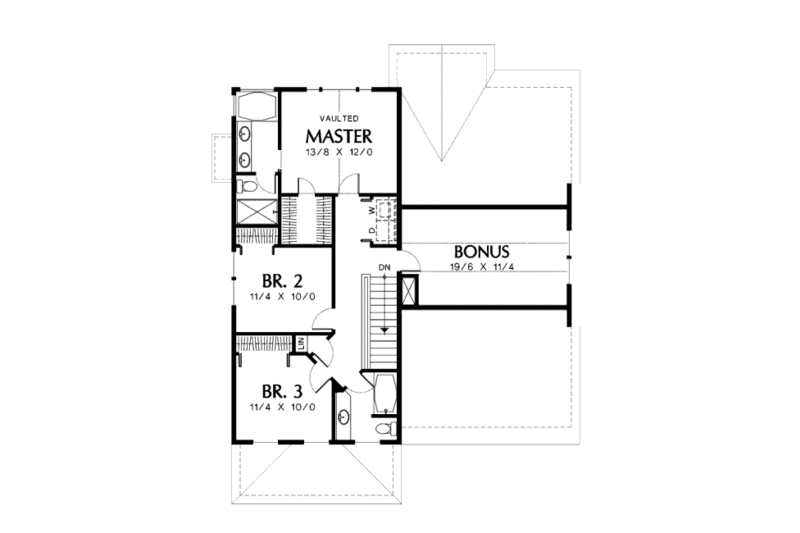

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 52'
Height : 28'
Width : 40'
Area
Bonus: 250 sq/ft
First Floor: 1082 sq/ft height 9'
Second Floor: 793 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 10:12
Roof Framing : Combination Truss/Conventional
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x6"
Bedroom Features
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Play Flex Room
Storage Area
Upstairs Laundry
Workshop
Garage Features
Front Entry Garage
Oversized Garage
Tandem Garage
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Rooms
Bedroom 2:
113 sq/ft width 11' 4" x depth 10'
Bedroom 3:
113 sq/ft width 11' 4" x depth 10'
Bonus Room - Finished:
220 sq/ft width 19' 6" x depth 11' 4"
Dining Room:
136 sq/ft width 11' 8" x depth 11' 8"
Garage:
406 sq/ft width 19' 8" x depth 20' 8"
Great Room:
297 sq/ft width 19' x depth 15' 8"
Master Bedroom:
164 sq/ft width 13' 8" x depth 12'
Nook:
95 sq/ft width 9' 6" x depth 10'
Storage:
180 sq/ft width 9' 8" x depth 18' 8"
Study:
113 sq/ft width 11' 4" x depth 10'
What's Included In This Plan Set

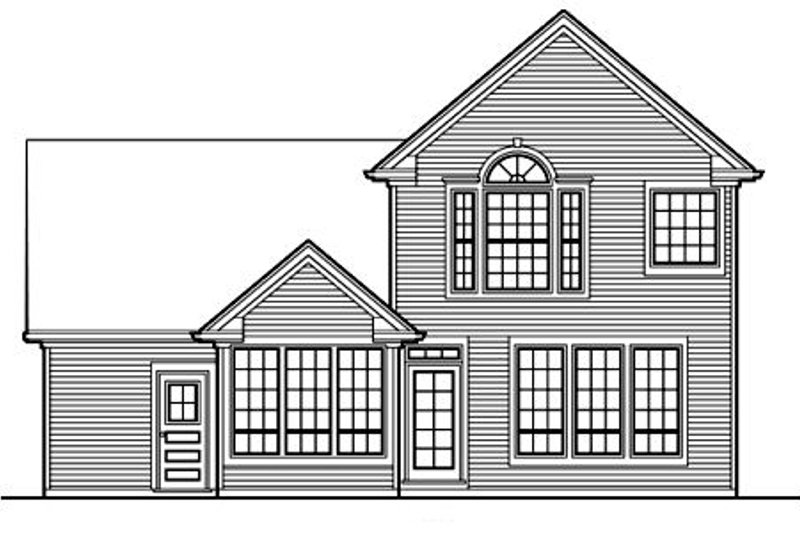

- Exterior Elevations
