PLAN 51-606
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 76'
Height : 19' 6"
Width : 37' 8"
Area
First Floor: 1883 sq/ft height 9'
Garage: 528 sq/ft
Roof
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Great Room Living Room
Main Floor Laundry
Outdoor Spaces
Courtyard
Rooms
Bedroom 2:
182 sq/ft width 14' x depth 13'
Bedroom 2 Closet:
48 sq/ft width 8' x depth 6'
Dinette:
147 sq/ft width 12' 8" x depth 11' 8"
Dining Room:
188 sq/ft width 10' 8" x depth 17' 8"
Garage:
528 sq/ft width 24' x depth 22'
Great Room:
300 sq/ft width 17' x depth 17' 8"
Kitchen:
245 sq/ft width 15' 8" x depth 15' 8"
Master Bathroom:
100 sq/ft width 10' x depth 10'
Master Bedroom:
232 sq/ft width 16' x depth 14' 6"
Master Walk-In Closet:
52 sq/ft width 9' 4" x depth 5' 8"
Utility Room:
87 sq/ft width 14' 6" x depth 6'
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

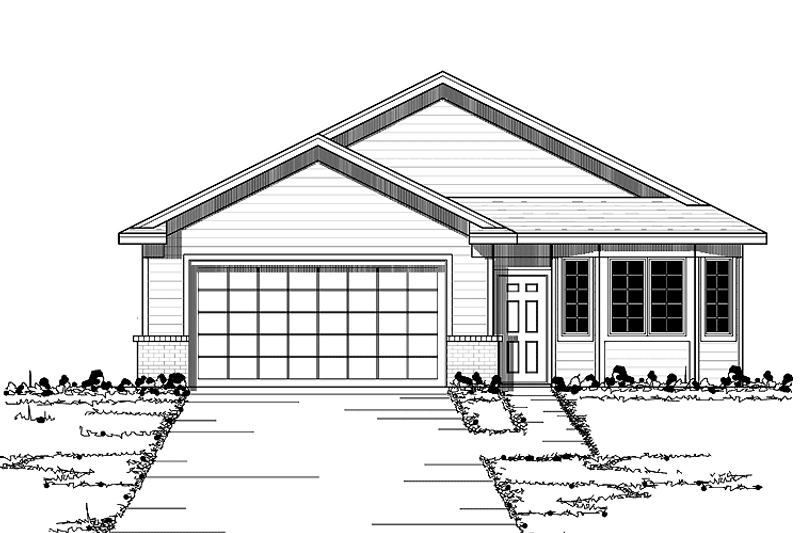

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.

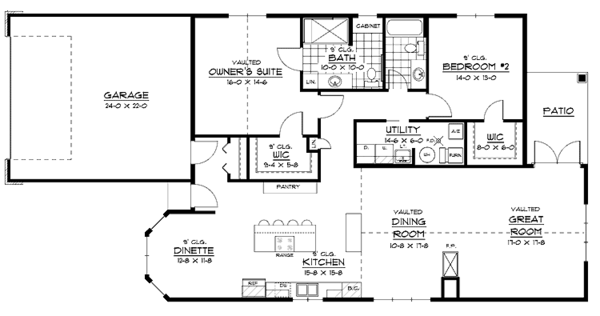

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Roof Layout: Overhead view of roof showing ridges, valleys, and pitch.
- Note: These plans will not contain an electrical layout.
