PLAN 42-536

Photographs may show modified designs.

Save
  • Jump to:
  • All (5)
  • Floor plans (2)
Questions? Get Personalized Help
Home  >  Style  >  Country

Key Specs


Plan Sq Ft

1899
sq ft

Plan Bedrooms

4
Beds

Plan Bathrooms

2
Baths

Plan Floors

1
Floors

Plan Garages

2
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Right-Reading Reverse
$175.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
$60.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Subtotal
$850.00
Best Price Guaranteed*

Also order by phone: 1-888-447-1946

Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.


Wow!
Cost to Build Reports
are Only $4.99
with Code CTB2025 (limit 1)
This report will provide you cost estimates based on location and building materials.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

PLAN 42-536

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

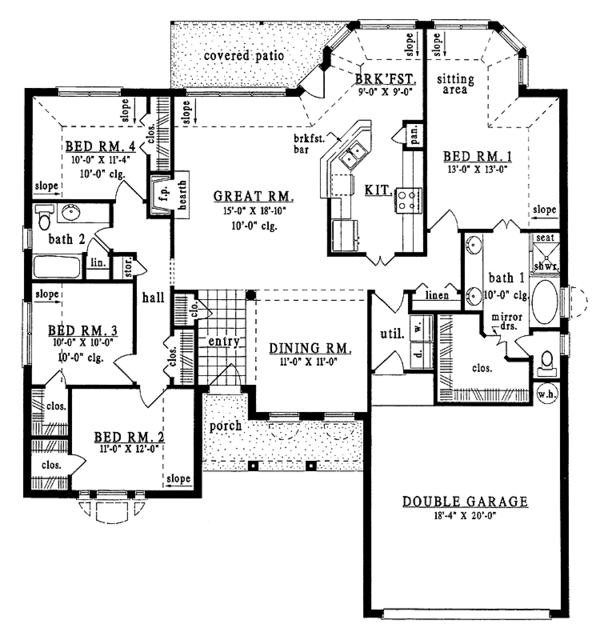

Plan Description


The fenestration on this plan makes abundant use of bay and bow windows, to provide maximum light and aesthetic quality. Bedroom 2, facing the street, features a large, bay Palladian window, and the formal dining room has two smaller bow windows, furnishing it with an air of elegance. An impressive entrance is formed by the constellation of entry, dining room and great room, with the double-doored entrance to the kitchen around the corner from the dining room visible from here. The opulent master suite, with a private sitting area, is on the right of the plan, on the other side of the kitchen. A linen closet, laundry, and access to the double garage is across from the kitchen entrance.

Full Specs & Features


Dimension

Depth : 58' 6"

Height : 24'

Width : 53' 2"

Area

First Floor: 1899 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12

Roof Framing : Conventional

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick

Framing : Wood - 2x4

Bedroom Features

Fireplace

Formal Dining Room

Split Bedrooms

Kitchen Features

Breakfast Nook

Kitchenette Wet Bar

Additional Room Features

Great Room Living Room

Main Floor Laundry

Open Floor Plan

Outdoor Spaces

Courtyard

Covered Front Porch

Covered Rear Porch

Rooms

3rd BR Closet:

20 sq/ft width 4' x depth 5'

Bedroom 2:

132 sq/ft width 11' x depth 12'

Bedroom 2 Closet:

20 sq/ft width 4' x depth 5'

Bedroom 3:

100 sq/ft width 10' x depth 10'

Bedroom 3 Closet:

20 sq/ft width 4' x depth 5'

Bedroom 4:

113 sq/ft width 10' x depth 11' 4"

Bedroom 4 Closet:

16 sq/ft width 2' x depth 8'

Breakfast Room:

81 sq/ft width 9' x depth 9'

Dining Room:

121 sq/ft width 11' x depth 11'

Foyer:

45 sq/ft width 5' x depth 9'

Garage:

366 sq/ft width 18' 4" x depth 20'

Gathering Room:

282 sq/ft width 15' x depth 18' 10"

Hall Bathroom:

64 sq/ft width 8' x depth 8'

Hall Closet:

6 sq/ft width 2' x depth 3'

Kitchen:

117 sq/ft width 9' x depth 13'

Master Bathroom:

108 sq/ft width 9' x depth 12'

Master Bedroom:

169 sq/ft width 13' x depth 13'

Master Closet:

81 sq/ft width 9' x depth 9'

Porch - Front:

84 sq/ft width 6' x depth 14'

Porch - Rear:

176 sq/ft width 8' x depth 22'

Wash Room:

45 sq/ft width 6' x depth 7' 6"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

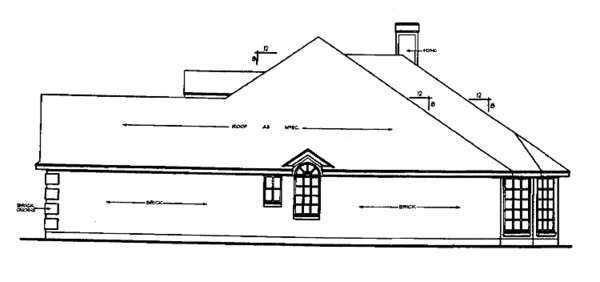

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-888-447-1946

Plan Set

5 Copy Set:
$850.00
5 printed plan sets mailed to you.
8 Copy Set:
$900.00
8 printed plan sets mailed to you.
PDF Set:
$900.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Single Set:
$800.00
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x4:
$0.00
Wood 2x4 Exterior Walls

Additional Options

Right-Reading Reverse:
$175.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
