PLAN 472-181
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Plan Description

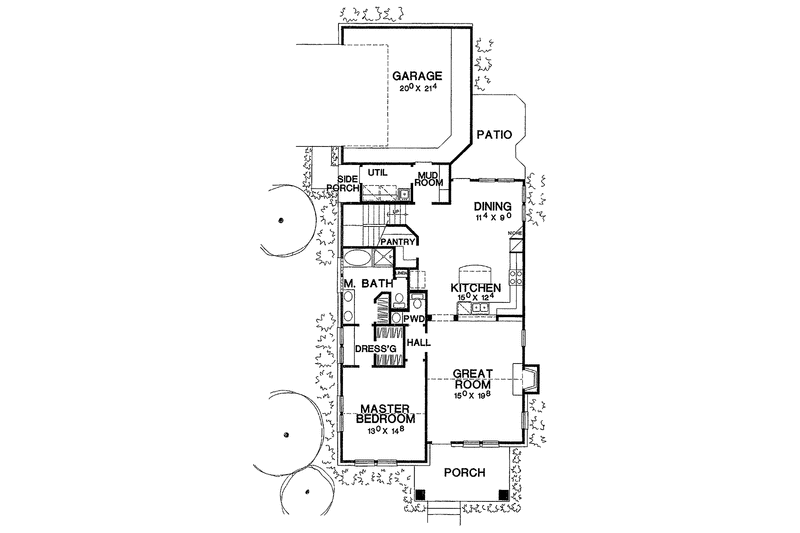

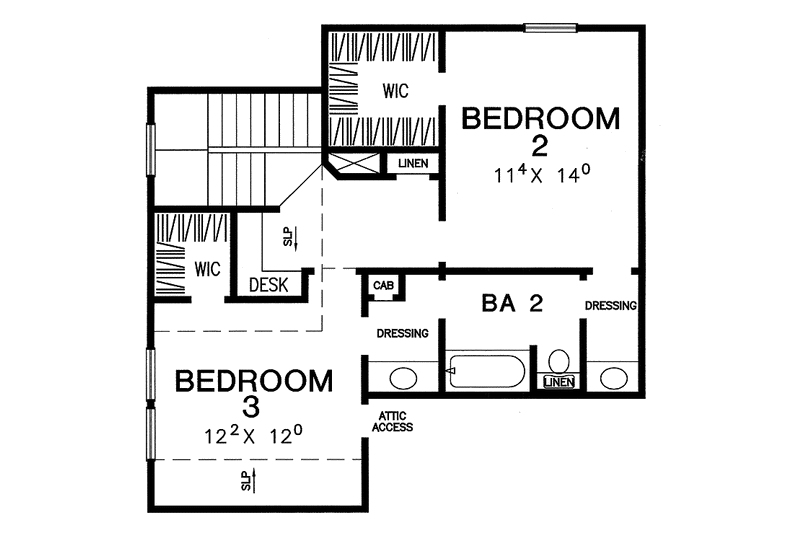

This petite bungalow, perfect for a narrow lot, boasts a charming exterior and a practical floor plan. The front door opens directly to the great room, which offers a fireplace. Just to the left, a short hallway leads to the master suite, with its large walk-in closet and private bath; straight ahead are the kitchen and dining room. Special features here include a walk-in pantry, a built-in niche, and access to a covered rear patio. Two second-floor bedrooms, each with private vanity areaa, share a full bath; a nearby built-in desk provides a convenient space for homework.
As per the Texas Board of Architectural Examiners, Reproducible and CAD versions of this plan are not permitted for sale to persons with Texas addresses. You may order 1-sets, 5-sets, or 8-sets. Contact Hanley Wood Customer service at 888.846.8188 with any questions.
Full Specs & Features
Height : 25'
Width : 31' 10"
Second Floor: 618 sq/ft
Roof Framing : Conventional
Roof Type : Shingle
Framing : Wood - 2x4
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Island
Kitchenette Wet Bar
Great Room Living Room
Main Floor Laundry
Covered Front Porch
3rd BR Closet:
22 sq/ft width 4' 6" x depth 5'
Bathroom 2:
84 sq/ft width 7' x depth 12'
Bedroom 2:
158 sq/ft width 11' 4" x depth 14'
Bedroom 2 Closet:
43 sq/ft width 6' 6" x depth 6' 8"
Bedroom 3:
146 sq/ft width 12' 2" x depth 12'
Bedroom 3 Closet:
43 sq/ft width 6' 6" x depth 6' 8"
Dining Room:
101 sq/ft width 11' 4" x depth 9'
Garage:
420 sq/ft width 20' x depth 21'
Gathering Room:
285 sq/ft width 15' x depth 19'
Kitchen:
184 sq/ft width 15' x depth 12' 4"
Master Bathroom:
97 sq/ft width 8' x depth 12' 2"
Master Bedroom:
190 sq/ft width 13' x depth 14' 8"
Master Closet:
24 sq/ft width 4' x depth 6'
Porch - Front:
124 sq/ft width 15' x depth 8' 4"
Powder Room:
12 sq/ft width 2' 6" x depth 5'
Wash Room:
44 sq/ft width 7' 8" x depth 5' 10"
What's Included In This Plan Set
- ELECTRICAL SCHEMATIC
- EXTERIOR ELEVATIONS
- CABINET ELEVATIONS
- CEILING FRAMING
- ROOF FRAMING
- FOUNDATION OF CHOICE AS AVAILABLE (SLAB, CRAWLSPACE OR BASEMENT) APPROPRIATE FOUNDATION DETAIL SHEET
- BUILDING CROSS SECTION IF MULTISTORY
- ALSO 4 PAGE FHA DESCRIPTION OF MATERIALS FORM (NOT A MATERIALS LIST OF QUANTITIES)
- GENERIC WALL SECTIONS
-
Note: Reproducible and CAD files are not available if building in Texas, Oklahoma, New Mexico, or Louisiana. Architect must update and stamp all plans being sent to these states.
