PLAN 472-36
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

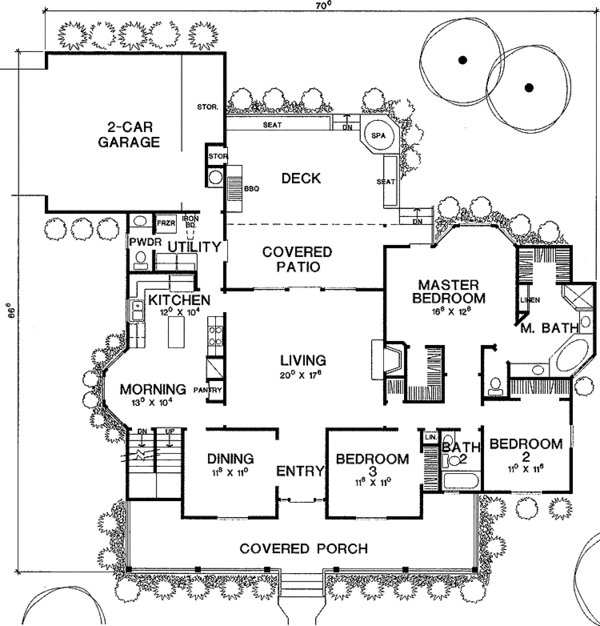

Floor Plans
Full Specs & Features
Dimension
Depth : 66' 6"
Height : 28'
Width : 70'
Area

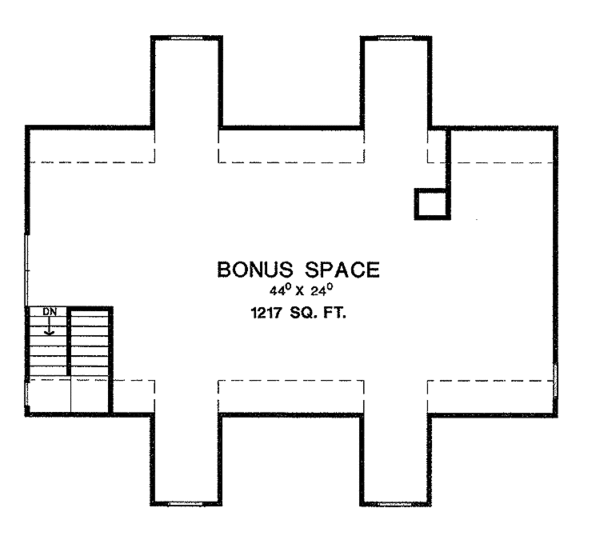

Bonus: 1216 sq/ft
First Floor: 1917 sq/ft height 9'
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Walk In Closet
Kitchen Features
Kitchen Island
Additional Room Features
Great Room Living Room
Main Floor Laundry
Unfinished Future Space
Garage Features
Side Entry Garage
Outdoor Spaces
Courtyard
Covered Front Porch
What's Included In This Plan Set
- ELECTRICAL SCHEMATIC
- EXTERIOR ELEVATIONS
- CABINET ELEVATIONS
- CEILING FRAMING
- ROOF FRAMING
- FOUNDATION OF CHOICE AS AVAILABLE (SLAB, CRAWLSPACE OR BASEMENT) APPROPRIATE FOUNDATION DETAIL SHEET
- BUILDING CROSS SECTION IF MULTISTORY
- ALSO 4 PAGE FHA DESCRIPTION OF MATERIALS FORM (NOT A MATERIALS LIST OF QUANTITIES)
- GENERIC WALL SECTIONS
-
