PLAN 56-237
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

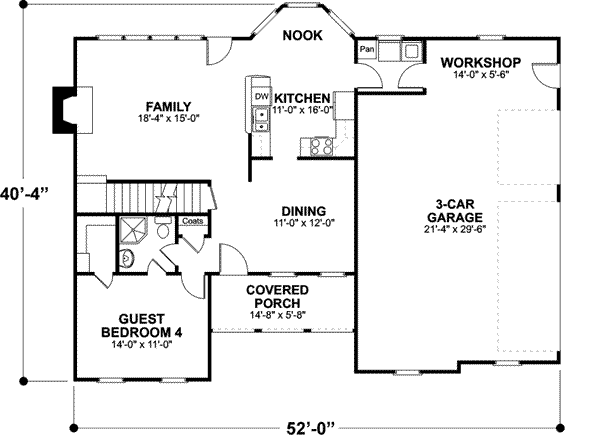

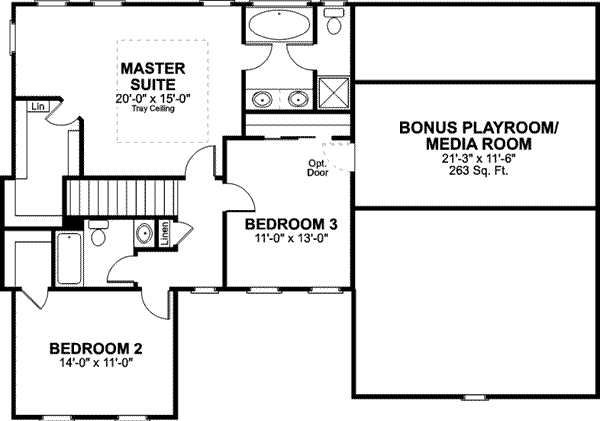

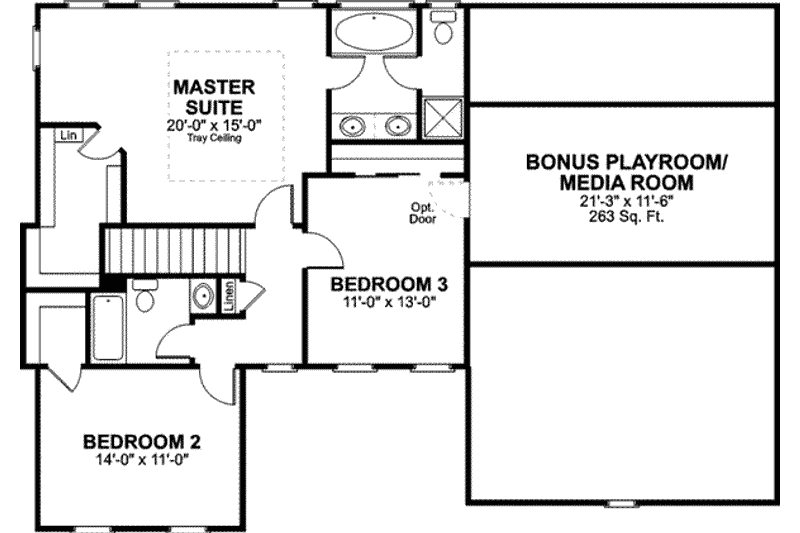

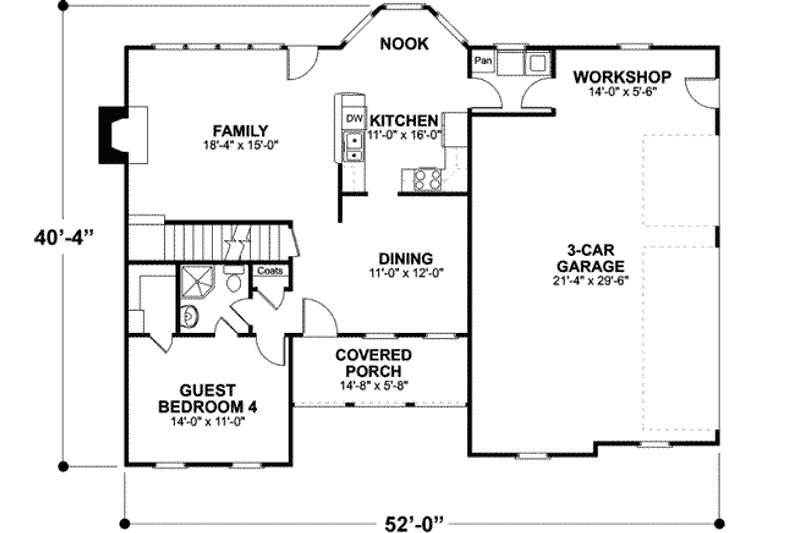

Floor Plans
Full Specs & Features
Dimension
Depth : 40' 4"
Height : 27' 6"
Width : 52'
Area
Bonus: 263 sq/ft
First Floor: 1012 sq/ft height 9'
Second Floor: 920 sq/ft height 9'
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : 2"x4"
Bedroom Features
Main Floor Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Additional Room Features
Great Room Living Room
Master Sitting Area
Play Flex Room
Workshop
Garage Features
Oversized Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Rooms
Bedroom 2:
154 sq/ft width 14' x depth 11'
Bedroom 2 Closet:
20 sq/ft width 4' x depth 5'
Bedroom 3:
143 sq/ft width 11' x depth 13'
Bedroom 3 Closet:
18 sq/ft width 9' 3" x depth 2'
Bedroom 4:
154 sq/ft width 14' x depth 11'
Bedroom 4 Closet:
26 sq/ft width 4' 3" x depth 6' 2"
Bonus Room - Finished:
244 sq/ft width 21' 3" x depth 11' 6"
Covered Porch:
83 sq/ft width 14' 8" x depth 5' 8"
Family Room:
274 sq/ft width 18' 4" x depth 15'
Foyer:
15 sq/ft width 7' 6" x depth 2'
Garage:
629 sq/ft width 21' 4" x depth 29' 6"
Kitchen:
176 sq/ft width 11' x depth 16'
Master Bathroom:
83 sq/ft width 9' 3" x depth 9'
Master Bedroom:
300 sq/ft width 20' x depth 15'
Master Closet:
63 sq/ft width 5' 8" x depth 11' 2"
Work Shop:
77 sq/ft width 14' x depth 5' 6"
What's Included In This Plan Set

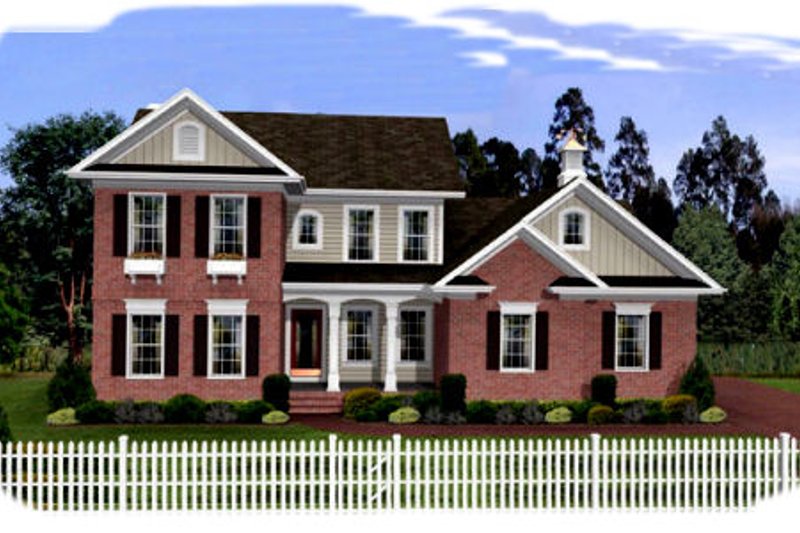

- Artist Rendering
- Exterior Elevations: All four sides
- Floor Plans(s)
- Foundation Plan
- Cross Sections
- Cabinet Elevations
- Roof Plan
- 3D Overview: most but not all plans by this designer are offered with a 3D overview. If this is important to you please contact one of our project advisors for verification.
- Electrical Drawings: Most plans Detail Sheets: Includes general specifications, not specific to individual plans.
Plan Set
$1295.00
$1345.00
$1395.00
$1550.00
$1795.00
Foundation
$0.00
$350.00
$350.00
Framing
$0.00
$350.00
Additional Options
$295.00
$65.00
$750.00
$100.00
$39.00
$100.00
$295.00
$1500.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
