A gabled Palladian dormer window atop a covered veranda garnishes this brick exterior. Also note the planters and shutters surrounding the three windows on the facade of the attached garage. Bow windows on the dining room and secondary bedroom decorate the veranda and provide enhanced beauty on the interior. The great room boasts a ribbon-style bow window looking out on the covered patio. A breakfast bay affords additional opportunities for
Full Specs & Features
Height : 20'
Width : 66' 6"
First Floor: 1955 sq/ft
Roof Framing : Conventional
Roof Type : Shingle
Framing : Wood - 2x4
Formal Dining Room
Split Bedrooms
Kitchenette Wet Bar
Main Floor Laundry
Open Floor Plan
Covered Front Porch
Covered Rear Porch
Outdoor Fireplace
3rd BR Closet:
14 sq/ft width 2' x depth 7'
Bedroom 2:
141 sq/ft width 10' 7" x depth 13' 4"
Bedroom 2 Closet:
12 sq/ft width 2' 6" x depth 5'
Bedroom 3:
143 sq/ft width 11' x depth 13'
Bedroom 3 Closet:
12 sq/ft width 2' 6" x depth 5'

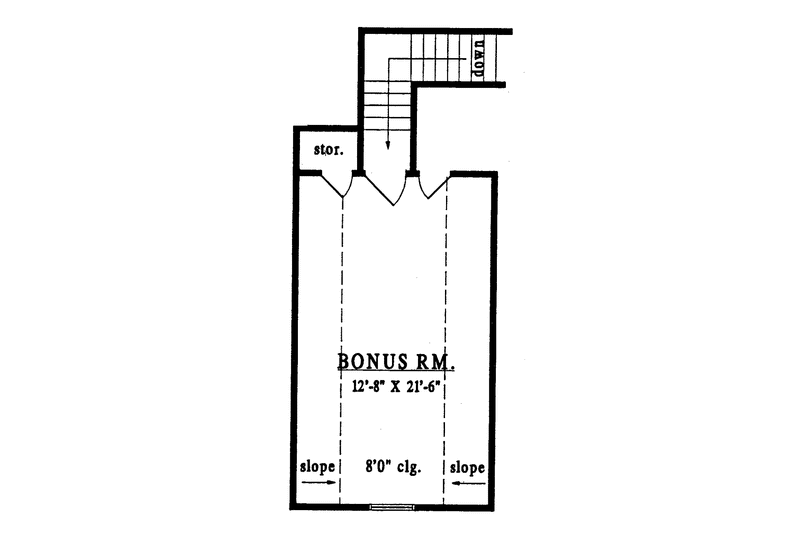

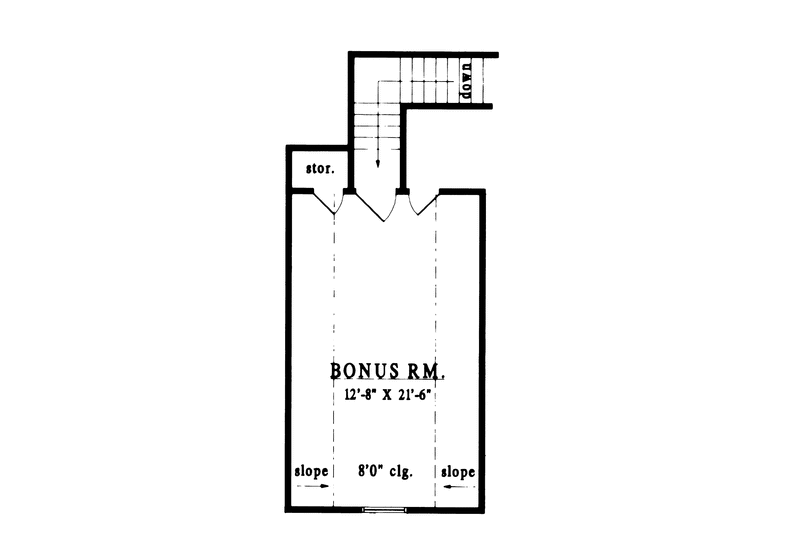

Bonus Room - Finished:
158 sq/ft width 12' 8" x depth 12' 6"
Breakfast Room:
150 sq/ft width 10' x depth 15'
Dining Room:
141 sq/ft width 10' 7" x depth 13' 4"
Foyer:
66 sq/ft width 6' x depth 11'
Garage:
441 sq/ft width 21' x depth 21'
Gathering Room:
314 sq/ft width 17' x depth 18' 6"
Hall Bathroom:
64 sq/ft width 8' x depth 8'
Hall Closet:
5 sq/ft width 2' x depth 2' 6"
Kitchen:
120 sq/ft width 10' x depth 12'
Master Bathroom:
128 sq/ft width 8' x depth 16'
Master Bedroom:
225 sq/ft width 15' x depth 15'
Master Closet:
54 sq/ft width 6' x depth 9'
Porch - Front:
180 sq/ft width 6' x depth 30'
Porch - Rear:
180 sq/ft width 6' x depth 30'
Utility Room:
31 sq/ft width 5' 4" x depth 6'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

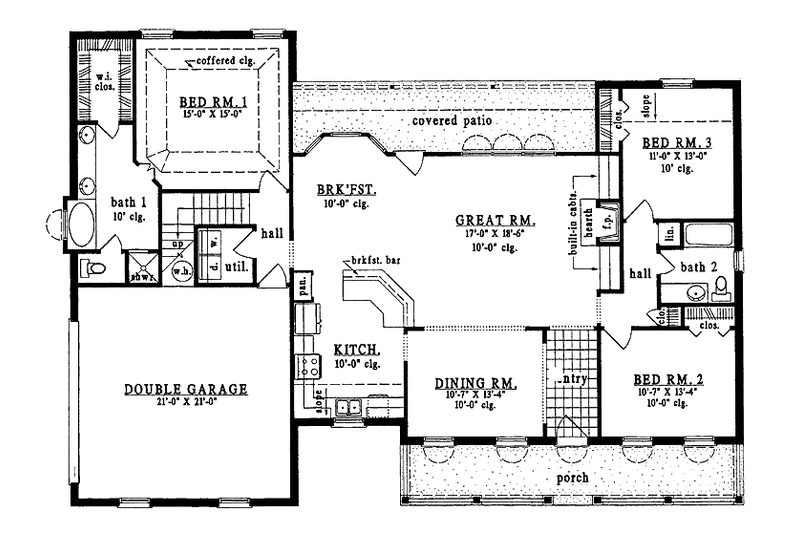

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
