PLAN 46-888
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Plan Description
A blend of materials creates an exterior with harmonious curb appeal. Inside, the open layout encourages everyone to relax in the great room or at the kitchen's island. Unwind in the master suite's large bedroom and private bathroom.
Full Specs & Features
Dimension
Depth : 58' 2"
Height : 25'
Width : 59' 11"
Height : 25'
Width : 59' 11"
Area
Basement : 1955 sq/ft
Garage : 463 sq/ft
Main Floor : 1955 sq/ft
Porch : 506 sq/ft
Garage : 463 sq/ft
Main Floor : 1955 sq/ft
Porch : 506 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : Tray Ceiling in Great Room and Dining Room
Main Ceiling : 9'
Main Ceiling : 9'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Composition
Secondary Pitch : 10:12
Roof Framing : Truss
Roof Type : Composition
Secondary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone/Shingle
Framing : 2x4
Framing : 2x4
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Mud Room
Main Floor Laundry
Mud Room
Garage Features
Front Entry Garage
Lot Characteristics
Suited For Sloping Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Covered Rear Porch
More
Economical To Build
Empty Nester
Empty Nester
Rooms
Bedroom 1:
width 11' x depth 12' 4"
Bedroom 2:
width 11' x depth 14' 8"
Covered Porch:
width 21' 8" x depth 15' 6"
Garage:
width 20' x depth 25' 5"
Great Room / Dining:
width 25' x depth 20'
Kitchen:
width 17' 1" x depth 14' 7"
Master Bedroom:
width 12' 2" x depth 17' 7"
What's Included In This Plan Set
Special Offer: When you buy a 5 copy or 8 copy printed set, a PDF set will be emailed to you.

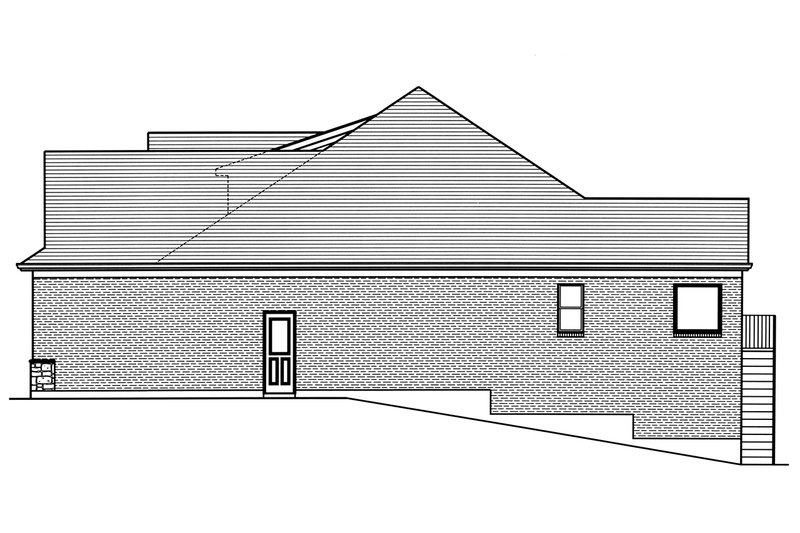

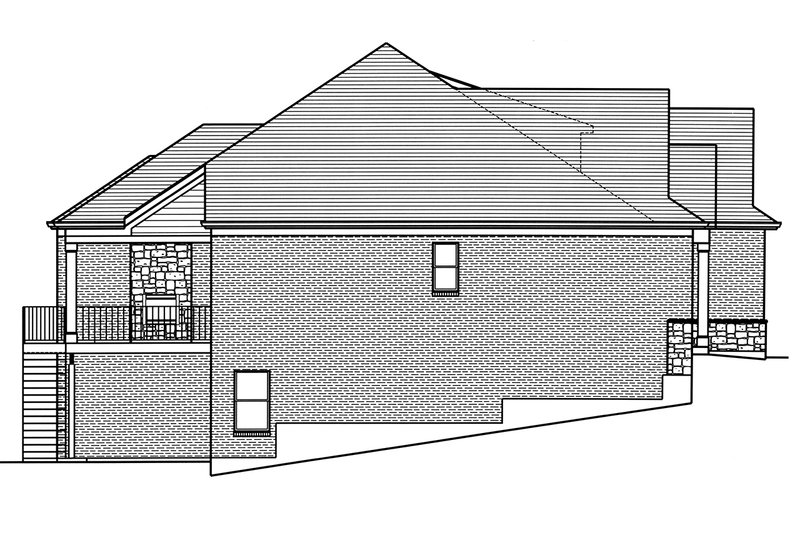

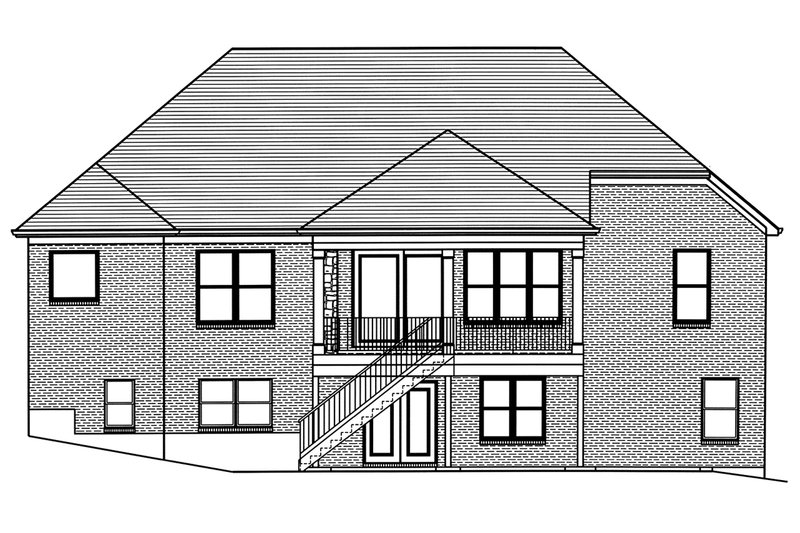

- Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.

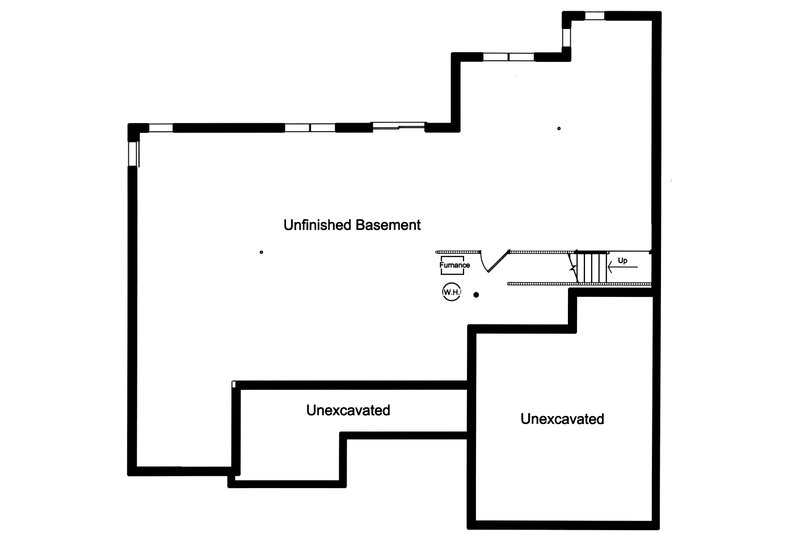

- Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).

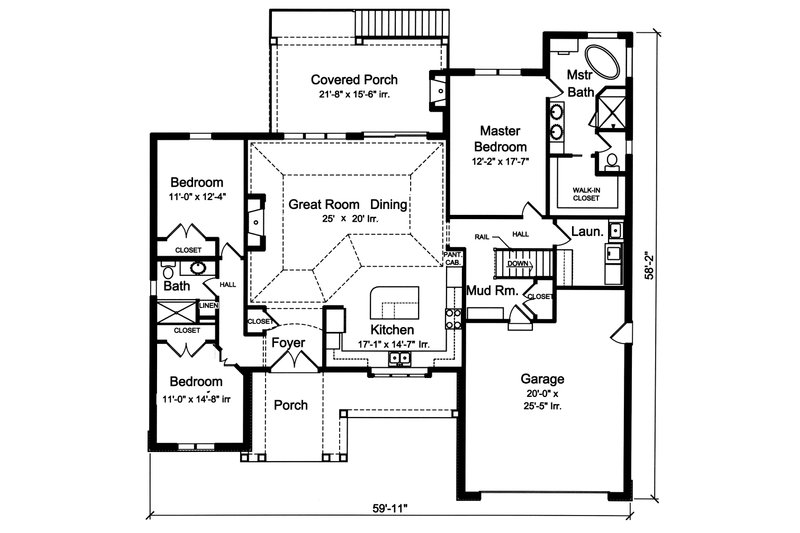

- Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
- Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys
- Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
- Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
- Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
- Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
- Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
- Fireplace detail shows how the fireplace is to be built.
- Wall section shows typical framing detail of house.
Questions? Call 1-888-447-1946
Plan Set
| PDF Set
: $895.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| 5 Copy and PDF Set
: $950.00 |
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| 8 Copy Set
: $950.00 |
8 printed plan sets mailed to you. |
| Eight Copy and PDF Set
: $995.00 |
8 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| CAD Set
: $1350.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Walk Out Basement: $0.00 |
Ideal for a sloping lot, lower level with outdoor access. |
Framing
| Wood 2x4: $0.00 |
Wood 2x4 |
Additional Options
| Right-Reading Reverse
: $150.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets
: $50.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design
: $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide
: $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design
: $100.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Mirror Reversed Sets
: $35.00 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
