Plan Description

The hub of this charming plan is the spacious kitchen with an island and serving bar. The nearby breakfast nook accesses the greenhouse with its wall of windows and three large skylights. A built-in media center beside a warming fireplace is the focal point of the family room. Bedroom 2 shares a full bath with the den/study, which might also be a third bedroom. The master suite features large His and Hers vanity sinks, a corner tub with an open walk-in shower, and a supersized walk-in closet. Future space over the garage can expand the living space as your family grows.

Floor Plans

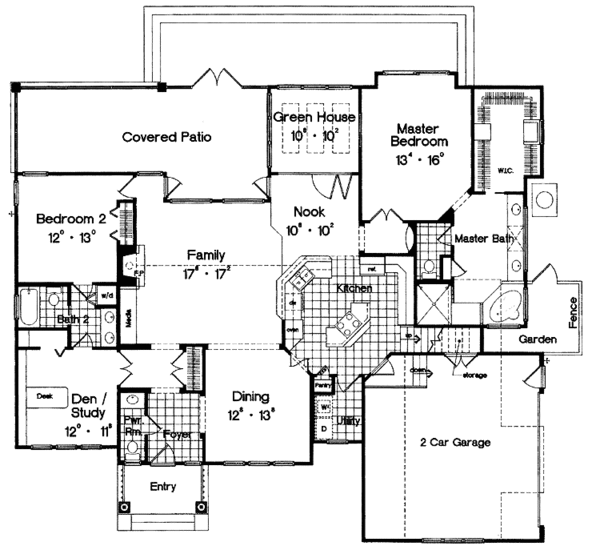

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

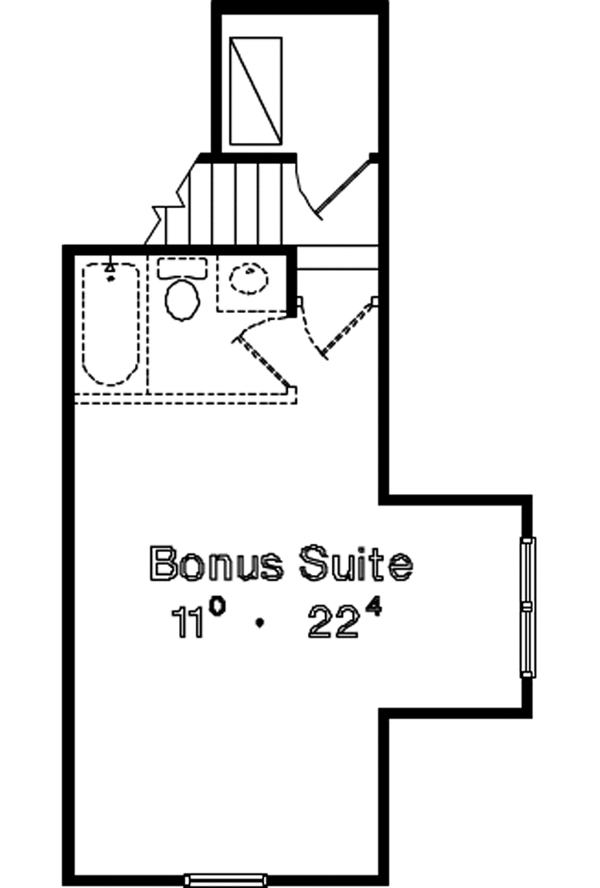

Floor Plan - Upper Floor

Reverse

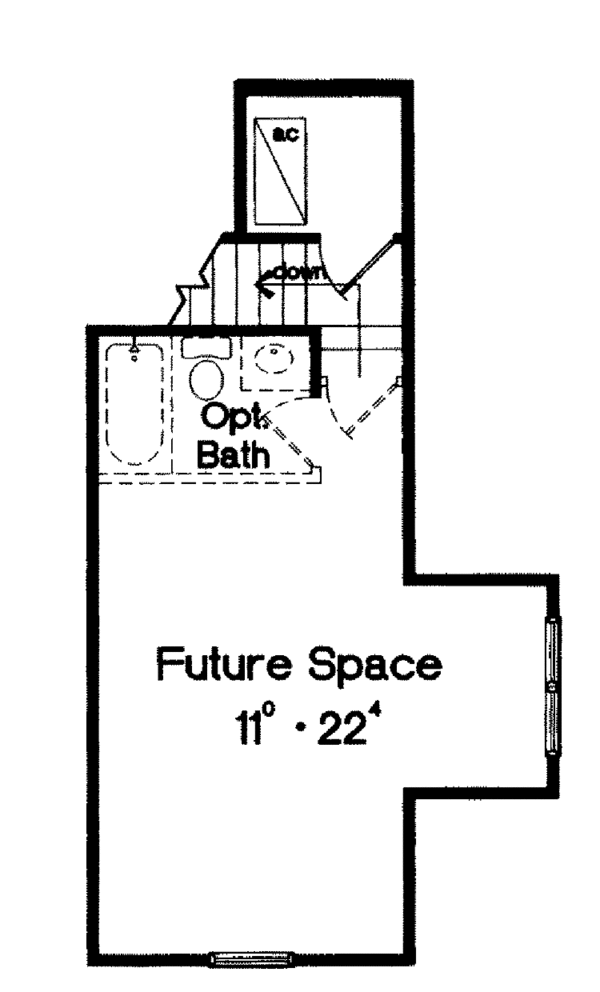

Floor Plan - Other Floor

Reverse

Full Specs & Features

Dimension

Depth : 63'

Height : 25'

Width : 64' 4"

Area

Bonus: 310 sq/ft

First Floor: 1997 sq/ft height 10'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 9:12

Roof Framing : Truss

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : Wood - 2x4

Bedroom Features

Fireplace

Formal Dining Room

Kitchen Features

Breakfast Nook

Kitchen Island

Kitchenette Wet Bar

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Great Room Living Room

Main Floor Laundry

Open Floor Plan

Sunroom

Garage Features

Side Entry Garage

Outdoor Spaces

Courtyard

Deck

Screened Porch

Rooms

Bathroom 2:

90 sq/ft width 12' x depth 7' 6"

Foyer:

55 sq/ft width 6' 8" x depth 8' 4"

Garage:

437 sq/ft width 21' 2" x depth 20' 8"

Hall:

35 sq/ft width 7' 8" x depth 4' 8"

Kitchen:

224 sq/ft width 15' 8" x depth 14' 4"

Master Bathroom:

203 sq/ft width 13' x depth 15' 8"

Master Closet:

100 sq/ft width 8' x depth 12' 6"

Porch - Front:

66 sq/ft width 11' x depth 6'

Porch - Rear:

424 sq/ft width 30' 8" x depth 13' 10"

Powder Room:

27 sq/ft width 3' 4" x depth 8' 4"

Storage:

14 sq/ft width 3' x depth 4' 8"

Utility Room:

44 sq/ft width 5' 10" x depth 7' 8"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-888-447-1946

Plan Set

PDF Set:
$950.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$1150.00

5 printed plan sets mailed to you.

5 Copy and PDF Set:
$1300.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Single Build:
$1900.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Study Set:
$600.00

One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x4:
$0.00

Wood 2x4 Exterior Walls

Additional Options

Additional Construction Sets:
$50.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$100.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List:
$85.00

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Mirror Reversed Sets:
$30.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
