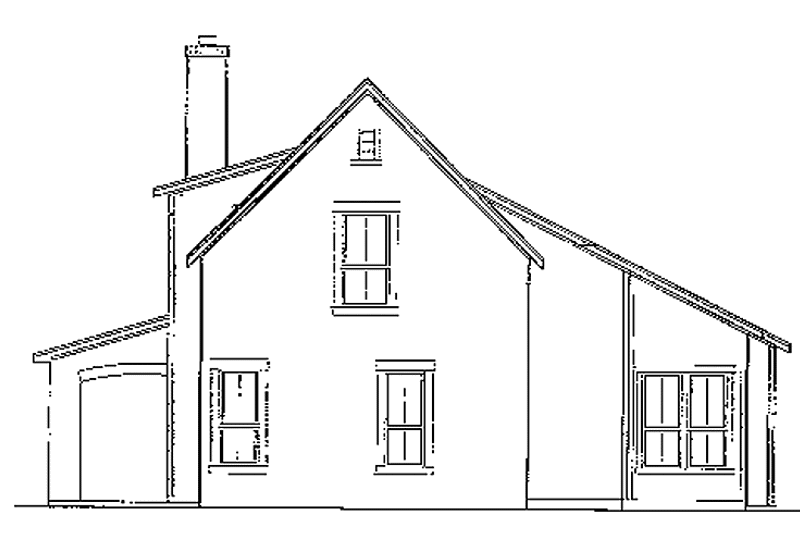

Colonial Exterior - Rear Elevation Plan #472-183
Colonial Exterior - Front Elevation Plan #472-183

Select Plan Set Options

What's included?
Additional Construction Sets
$54.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Subtotal
NOW $1300.50
You save $144.50
(10% savings)
Sale ends soon!
Also order by phone: 1-888-447-1946
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Questions?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 472-183

Key Specs


2005
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description


Stone and vertical siding combine to create a memorable exterior for this beautiful bungalow. The front door opens directly to the great room, which boasts a corner fireplace. Nearby, the dining room is conveniently close to the efficient kitchen. A box-bay window highlights the master suite, secluded to the rear of the plan; this suite includes a walk-in closet and a private bath with a luxurious corner tub. Upstairs, two secondary bedrooms—one with a built-in desk—share a full bath.

As per the Texas Board of Architectural Examiners, Reproducible and CAD versions of this plan are not permitted for sale to persons with Texas addresses. You may order 1-sets, 5-sets, or 8-sets. Contact Hanley Wood Customer service at 888.846.8188 with any questions.

Full Specs & Features


Dimension
Depth : 57' 6"
Height : 27'
Width : 44' 2"
Area
First Floor: 1569 sq/ft
Second Floor: 436 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchenette Wet Bar
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Loft
Main Floor Laundry
Master Sitting Area
Garage Features
Detached Garage
Outdoor Spaces
Balcony
Covered Front Porch
Wrap Around Porch
Rooms

3rd BR Closet:

40 sq/ft width 6' 8" x depth 6'

Bathroom 2:

40 sq/ft width 5' x depth 8'

Bedroom 2:

137 sq/ft width 11' 2" x depth 12' 4"

Bedroom 2 Closet:

15 sq/ft width 4' x depth 3' 9"

Bedroom 3:

115 sq/ft width 10' 2" x depth 11' 4"

Bedroom 3 Closet:

15 sq/ft width 4' x depth 3' 9"

Dining Room:

137 sq/ft width 12' 6" x depth 11'

Garage:

480 sq/ft width 20' x depth 24'

Gathering Room:

479 sq/ft width 19' 2" x depth 25'

Hall Closet:

18 sq/ft width 3' 4" x depth 5' 8"

Kitchen:

143 sq/ft width 12' 10" x depth 11' 2"

Master Bathroom:

132 sq/ft width 10' 2" x depth 13'

Master Bedroom:

234 sq/ft width 16' 4" x depth 14' 4"

Master Closet:

34 sq/ft width 6' 10" x depth 5'

Porch - Front:

285 sq/ft width 9' 6" x depth 30'

Porch - Right:

199 sq/ft width 9' 6" x depth 21'

Powder Room:

21 sq/ft width 3' x depth 7'

Utility Room:

51 sq/ft width 5' 8" x depth 9' 2"

What's Included In This Plan Set


  • ELECTRICAL SCHEMATIC
  • EXTERIOR ELEVATIONS
  • CABINET ELEVATIONS
  • CEILING FRAMING
  • ROOF FRAMING
  • FOUNDATION OF CHOICE AS AVAILABLE (SLAB, CRAWLSPACE OR BASEMENT) APPROPRIATE FOUNDATION DETAIL SHEET
  • BUILDING CROSS SECTION IF MULTISTORY
  • ALSO 4 PAGE FHA DESCRIPTION OF MATERIALS FORM (NOT A MATERIALS LIST OF QUANTITIES)
  • GENERIC WALL SECTIONS
    Note: Reproducible and CAD files are not available if building in Texas, Oklahoma, New Mexico, or Louisiana. Architect must update and stamp all plans being sent to these states.
