PLAN 46-466
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

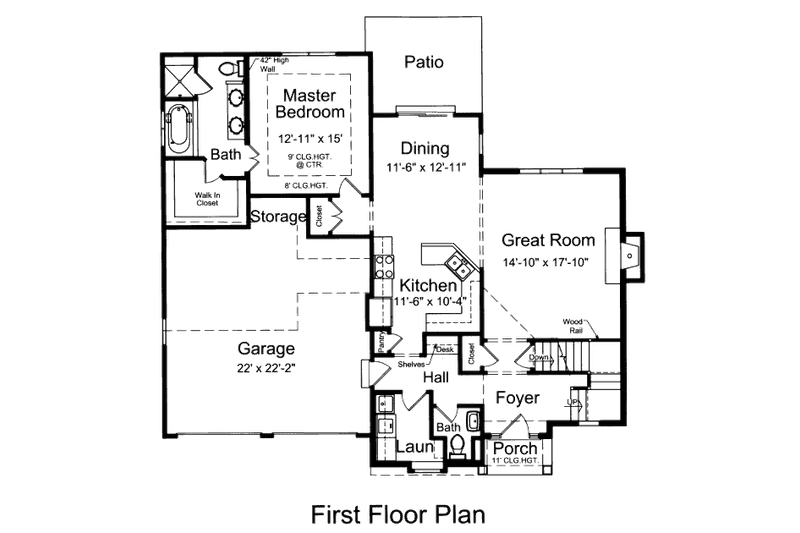

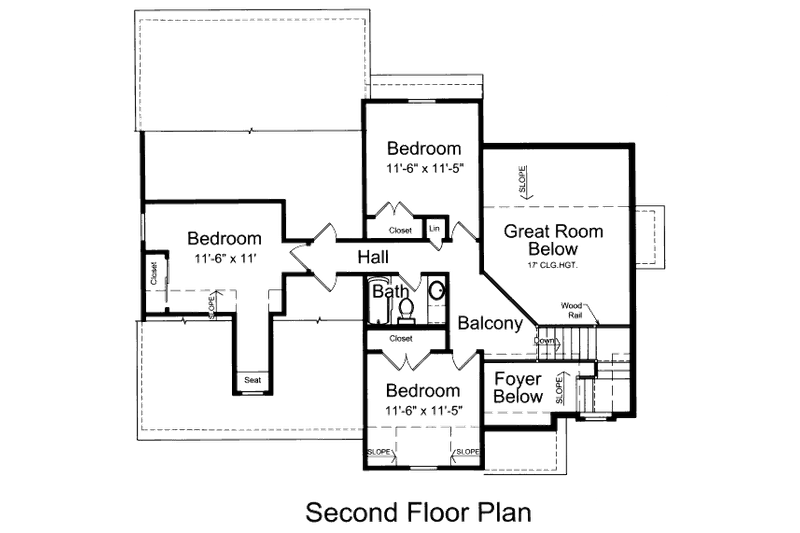

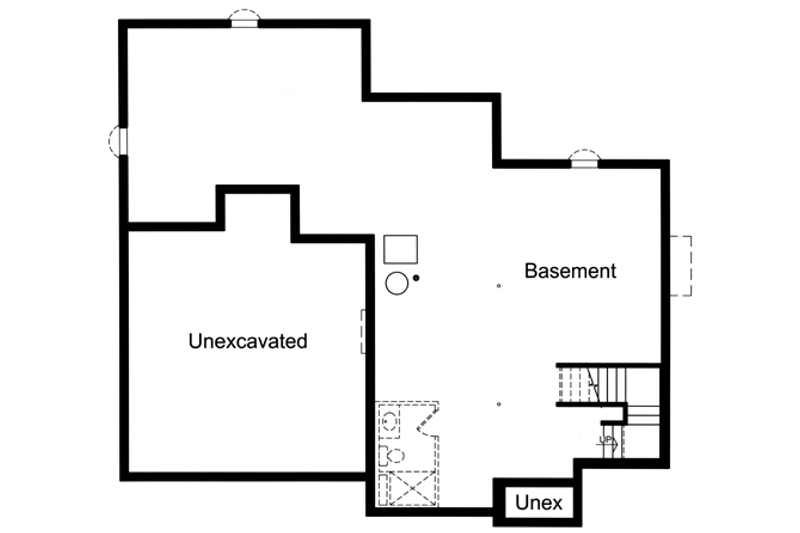

Floor Plans
Full Specs & Features
Dimension
Depth : 45' 7"
Height : 27'
Width : 51' 10"
Area
First Floor: 1297 sq/ft
Garage: 498 sq/ft
Second Floor: 713 sq/ft
Ceiling
Main Ceiling : 8'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding/Stucco
Framing : 2"x4"
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Additional Room Features
Great Room Living Room
Loft
Storage Area
Unfinished Future Space
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Outdoor Spaces
Balcony
Covered Front Porch
Rooms
Balcony:
66 sq/ft width 8' 10" x depth 7' 6"
Bedroom 2:
131 sq/ft width 11' 6" x depth 11' 5"
Bedroom 2 Closet:
16 sq/ft width 8' x depth 2' 1"
Bedroom 3:
131 sq/ft width 11' 6" x depth 11' 5"
Bedroom 3 Closet:
11 sq/ft width 5' 9" x depth 2' 1"
Bedroom 4:
153 sq/ft width 13' 10" x depth 11' 1"
Bedroom 4 Closet:
12 sq/ft width 2' 1" x depth 6'
Breakfast Room:
148 sq/ft width 11' 6" x depth 12' 11"
Coat Closet:
8 sq/ft width 2' 1" x depth 3' 11"
Family Room:
264 sq/ft width 14' 10" x depth 17' 10"
Foyer:
59 sq/ft width 9' 5" x depth 6' 4"
Garage:
487 sq/ft width 22' x depth 22' 2"
Gathering Room:
264 sq/ft width 14' 10" x depth 17' 10"
Hall Bathroom:
40 sq/ft width 8' x depth 5'
Hall Closet:
40 sq/ft width 8' x depth 5'
Kitchen:
113 sq/ft width 11' 6" x depth 9' 10"
Laundry Room:
42 sq/ft width 5' 10" x depth 7' 4"
Linen Closet:
4 sq/ft width 2' x depth 2' 1"
Master Bathroom:
85 sq/ft width 8' 7" x depth 10'
Master Bedroom:
193 sq/ft width 12' 11" x depth 15'
Master Closet:
62 sq/ft width 8' 9" x depth 7' 2"
Pantry:
3 sq/ft width 1' 6" x depth 2' 6"
Powder Room:
29 sq/ft width 5' 2" x depth 5' 8"
What's Included In This Plan Set
- Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
- Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).
- Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
- Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys
- Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
- Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
- Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
- Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
- Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
- Fireplace detail shows how the fireplace is to be built.
- Wall section shows typical framing detail of house.
