PLAN 56-664

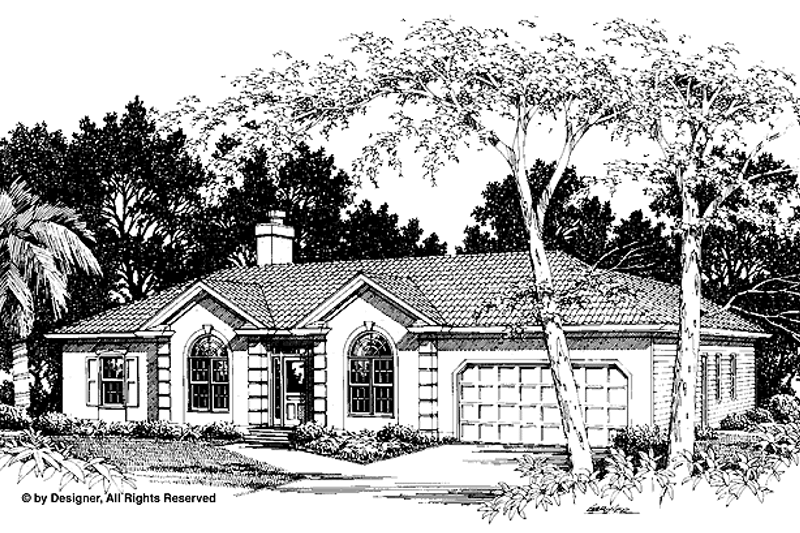

Photographs may show modified designs.

Save
Home  /  Style  /  Mediterranean

Key Specs


Plan Sq Ft

2020
sq ft

Plan Bedrooms

3
Beds

Plan Bathrooms

2
Baths

Plan Floors

1
Floors

Plan Garages

2
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Subtotal
NOW $1100.75
You save $194.25 (15% savings)
Sale ends soon!
Best Price Guaranteed*

Also order by phone: 1-888-447-1946
Cost-to-Build Estimates

Cost to Build Reports Only $4.99 with Code CTBFALL (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-888-447-1946
Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Hours: Mon - Fri 8:30 - 8:30 (EDT)

See our Terms & Conditions and Privacy Policy.

PLAN 56-664

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

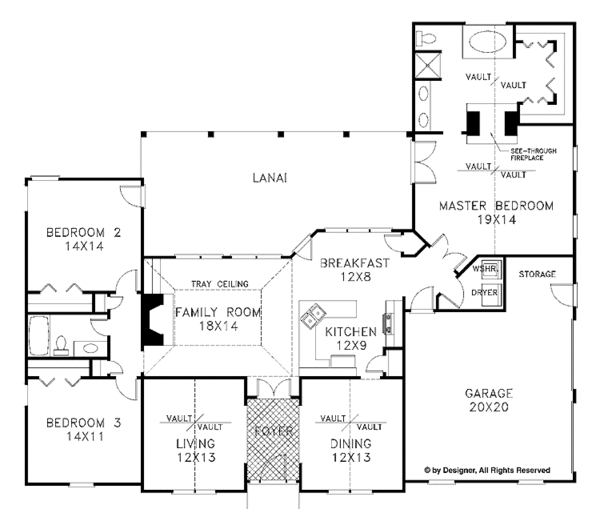

This attractive 2,020 sq.ft. Mediterranean ranch design, with 3 bedrooms and 2 baths, is loaded with luxurious features. Vaulted ceilings are featured in the formal living and dining areas as well as the master bedroom. The 18'x14' family room has a fireplace, an entertainment center, and a trey ceiling. A see-through fireplace is one of the highlights of the master bedroom which has access to a large lanai. (The lanai is also accessible from bedroom #2.) Featuring a vaulted ceiling, the master bath has both a garden tub and a shower. Closet space abounds in the spacious triple closet. The two remaining bedrooms are isolated from the master suite and share a hall bath. Numerous windows throughout the breakfast and family rooms make these rooms bright and airy.

Full Specs & Features


Dimension

Depth : 54'

Height : 20'

Width : 66'

Area

First Floor: 2020 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Roof Framing : Conventional

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Wood - 2x4

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Split Bedrooms

Kitchen Features

Breakfast Nook

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room

Storage Area

Outdoor Spaces

Courtyard

Covered Front Porch

Rooms

Bedroom 2:

124 sq/ft width 14' 4" x depth 8' 8"

Bedroom 3:

168 sq/ft width 14' x depth 12'

Dining Room:

155 sq/ft width 12' x depth 12' 11"

Gathering Room:

236 sq/ft width 13' 3" x depth 17' 10"

Kitchen:

124 sq/ft width 14' 4" x depth 8' 8"

Living Room:

156 sq/ft width 12' x depth 13'

Master Bedroom:

245 sq/ft width 18' 11" x depth 13'

What's Included In This Plan Set


  • Artist Rendering
  • Exterior Elevations: All four sides
  • Floor Plans(s)
  • Foundation Plan
  • Cross Sections
  • Cabinet Elevations
  • Roof Plan
  • 3D Overview: most but not all plans by this designer are offered with a 3D overview. If this is important to you please contact one of our project advisors for verification.
  • Electrical Drawings: Most plans Detail Sheets: Includes general specifications, not specific to individual plans.
» See important information before purchasing.
Questions? Call 1-888-447-1946

Plan Set

PDF Set:
$1100.75
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set:
$1143.25
5 printed plan sets mailed to you.
8 Copy Set:
$1185.75
8 printed plan sets mailed to you.
Reproducible Set:
$1228.25
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set:
$1525.75
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x4:
$0.00
Wood 2x4

Additional Options

Right-Reading Reverse:
$165.75
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$55.25
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Additional Use License:
$250.75
Additional Use License.
Audio Video Design:
$85.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$85.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List:
$165.75
A list of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
Unlimited Use License:
$850.00
Unlimited Use License.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
