Full Specs & Features
Depth : 40'
Height : 22' 7"
Width : 83'
First Floor: 2022 sq/ft
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Tile
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block
Formal Dining Room
Walk In Closet
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Great Room Living Room
Vaulted / Cathedral Ceilings
Covered Rear Porch
128 sq/ft width 11' 4" x depth 11' 4"
93 sq/ft width 10' 10" x depth 8' 8"
132 sq/ft width 11' x depth 12'
420 sq/ft width 21' x depth 20'
326 sq/ft width 20' x depth 16' 4"
177 sq/ft width 15' x depth 11' 10"
224 sq/ft width 16' x depth 14'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

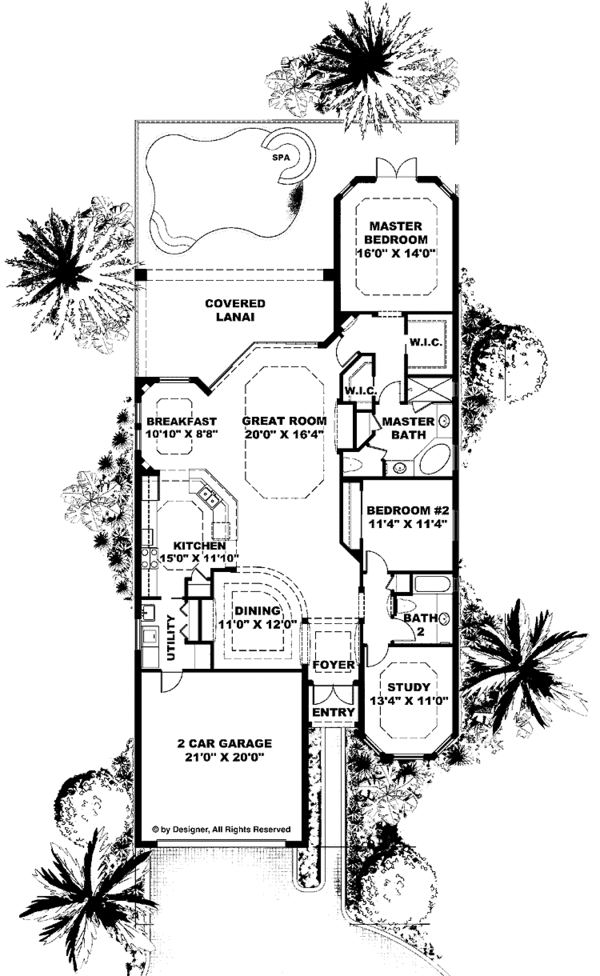

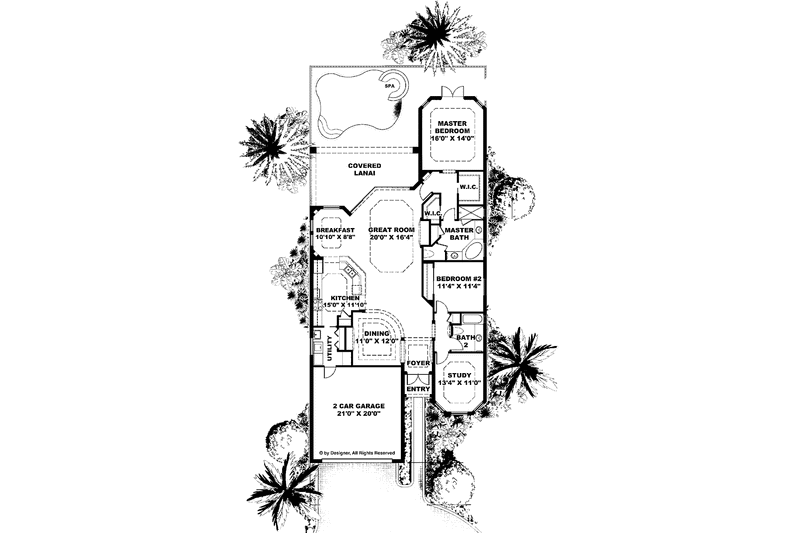

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
