PLAN 1017-45

Key Specs

6718
sq ft

5
Beds

6.5
Baths

2
Floors

5
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

The courtyard entry creates an authentically Mediterranean impression that continues throughout the home. Inside, the dining room is attractively set in a turret. The family room will surely be the family hub, with close proximity to the kitchen as well as the hearth-warmed covered lanai and outdoor kitchen. The master suite includes two walk-in closets, a plush master bath, and French doors to a private lanai. A spiral staircase leads to the second-floor lanai, which can be reached from one of three bedroom suites and a theater. Note: First story walls are constructed of concrete block; upper stories are 2 x 6 wood-framed.

Floor Plans

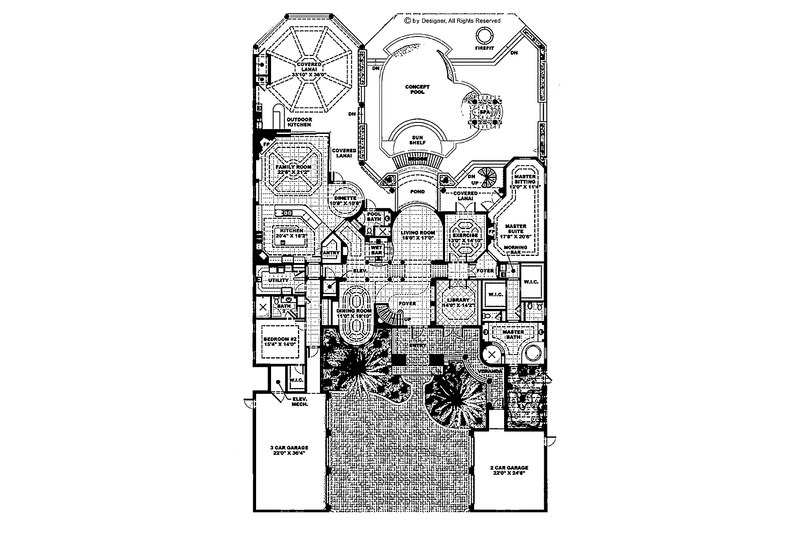

Floor Plan - Main Floor Plan

Reverse

Mediterranean Floor Plan - Main Floor Plan Plan #1017-45

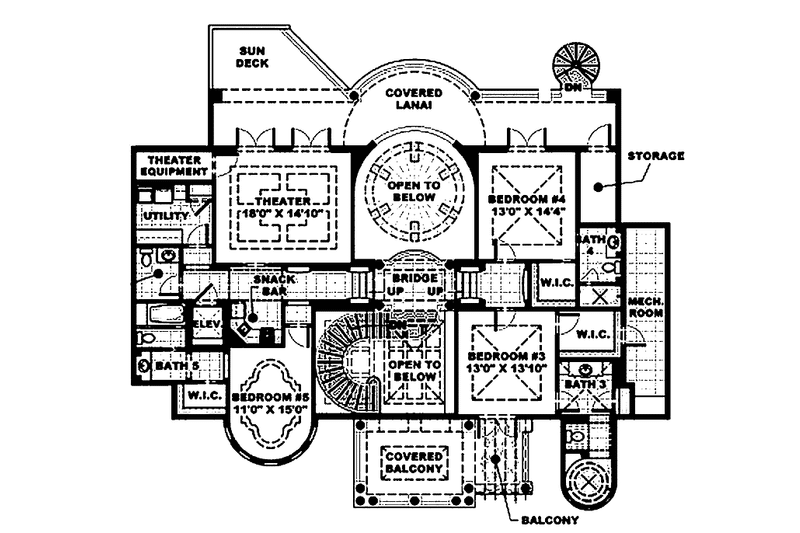

Floor Plan - Upper Floor Plan

Reverse

Mediterranean Floor Plan - Upper Floor Plan Plan #1017-45

Full Specs & Features

Dimension

Depth : 156' 10"
Height : 34' 2"
Width : 91'

Area

First Floor: 4822 sq/ft
Garage: 1632 sq/ft
Second Floor: 1896 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Bedroom Features

Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Exercise Room
Family Room Keeping Room
Loft
Master Sitting Area
Open Floor Plan
Upstairs Laundry
Vaulted / Cathedral Ceilings

Outdoor Spaces

Balcony
Covered Front Porch

Wheelchair Adaptable

Rooms

Bedroom 2:

214 sq/ft width 15' 4" x depth 14'

Bedroom 3:

179 sq/ft width 13' x depth 13' 10"

Bedroom 4:

186 sq/ft width 13' x depth 14' 4"

Bedroom 5:

165 sq/ft width 11' x depth 15'

Dining Room:

218 sq/ft width 11' x depth 19' 10"

Exercise Room:

192 sq/ft width 13' x depth 14' 10"

Family Room:

476 sq/ft width 22' 6" x depth 21' 2"

Garage:

799 sq/ft width 22' x depth 36' 4"

Garage Two:

542 sq/ft width 22' x depth 24' 8"

Kitchen:

369 sq/ft width 20' 4" x depth 18' 2"

Lanai:

1217 sq/ft width 33' 10" x depth 36'

Library:

198 sq/ft width 14' x depth 14' 2"

Living Room:

272 sq/ft width 16' x depth 17'

Master Suite:

362 sq/ft width 17' 8" x depth 20' 6"

Theatre Room:

266 sq/ft width 18' x depth 14' 10"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

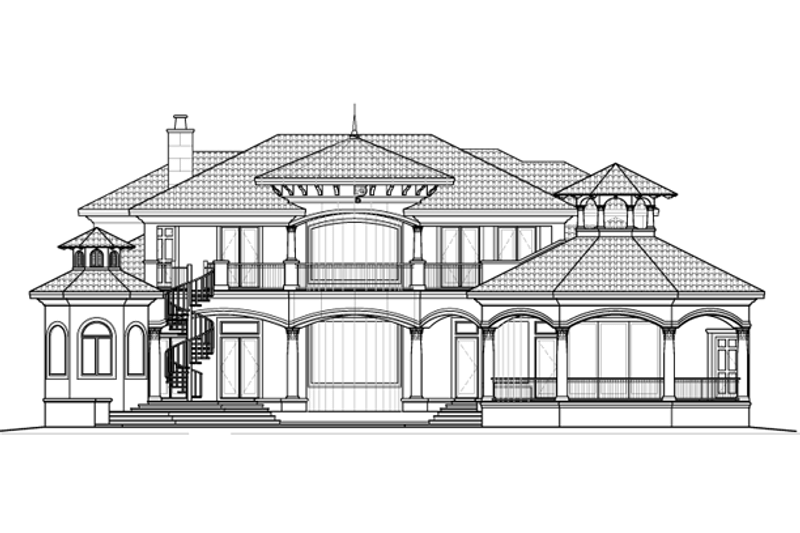

Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

» See important information before purchasing.

Plan Set

CAD Set : $5200.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set : $5200.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set : $5200.00	For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Additional Construction Sets : $90.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design : $100.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $39.00	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner : $19.00	This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design : $200.00	Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets : $75.00	A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
