This traditional design floor plan is 2059 sq ft and has 3 bedrooms and 2.5 bathrooms.

Floor Plans

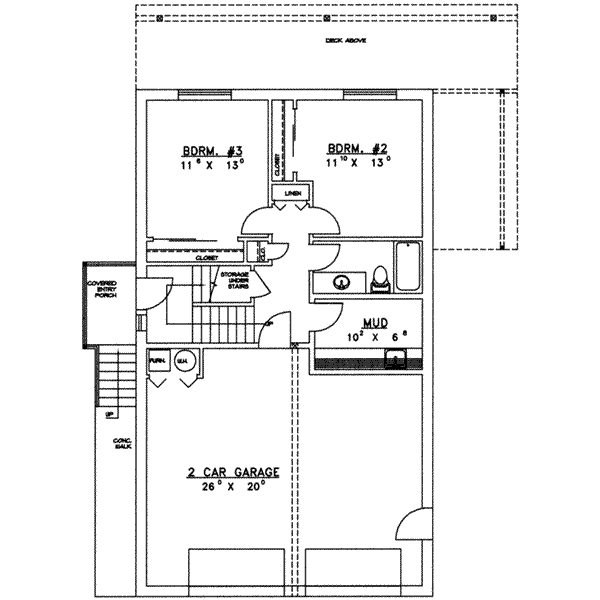

Floor Plan - Lower Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

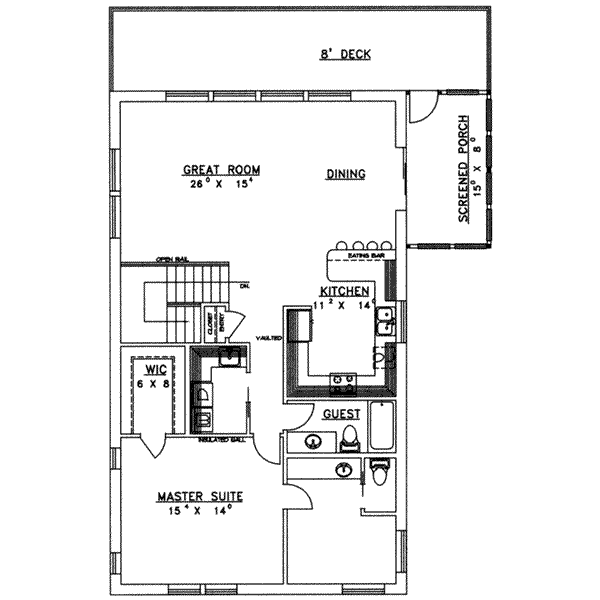

Floor Plan - Main Floor

Reverse

Full Specs & Features

Dimension

Depth : 48'

Height : 27' 9"

Width : 28' 4"

Area

Basement Living: 715 sq/ft

First Floor: 1344 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : ICF

Bedroom Features

Walk In Closet

Kitchen Features

Eating Bar

Additional Room Features

Great Room Living Room

Storage Area

Sunroom

Garage Features

Garage Under

Outdoor Spaces

Screened Porch

Rooms

Bedroom 2:

153 sq/ft width 11' 10" x depth 13'

Bedroom 3:

148 sq/ft width 11' 5" x depth 13'

Deck:

296 sq/ft width 37' x depth 8'

Garage:

520 sq/ft width 26' x depth 20'

Great Room:

398 sq/ft width 26' x depth 15' 4"

Kitchen:

156 sq/ft width 11' 2" x depth 14'

Master Suite:

214 sq/ft width 15' 4" x depth 14'

Mud Room:

67 sq/ft width 10' 2" x depth 6' 8"

Porch - Screened:

120 sq/ft width 15' x depth 8'

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-888-447-1946

Plan Set

5 Copy Set:
$1195.00

5 printed plan sets mailed to you.

CAD Single Build:
$1295.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set:
$1295.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy and PDF Set:
$1445.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Unlimited Build:
$1995.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse:
$195.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$50.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$295.00

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.
