PLAN 46-891
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Full Specs & Features
Dimension
Depth : 58'
Height : 28'
Width : 50' 6"
Height : 28'
Width : 50' 6"
Area
Basement : 1411 sq/ft
Garage : 524 sq/ft
Main Floor : 1411 sq/ft
Porch : 393 sq/ft
Upper Floor : 669 sq/ft
Garage : 524 sq/ft
Main Floor : 1411 sq/ft
Porch : 393 sq/ft
Upper Floor : 669 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Garage Ceiling : 11' 6"
Lower Ceiling : 7' 10"
Main Ceiling : 9' 1"
Upper Ceiling Ft : 8' 1"
Lower Ceiling : 7' 10"
Main Ceiling : 9' 1"
Upper Ceiling Ft : 8' 1"
Roof
Primary Pitch : 8/12
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 8/12
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 8/12
Exterior Wall Framing
Exterior Wall Finish : Stone/Siding
Framing : 2x4
Framing : 2x4
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Additional Room Features
Great Room Living Room
Main Floor Laundry
Main Floor Laundry
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Covered Rear Porch
What's Included In This Plan Set
Special Offer: When you buy a 5 copy or 8 copy printed set, a PDF set will be emailed to you.

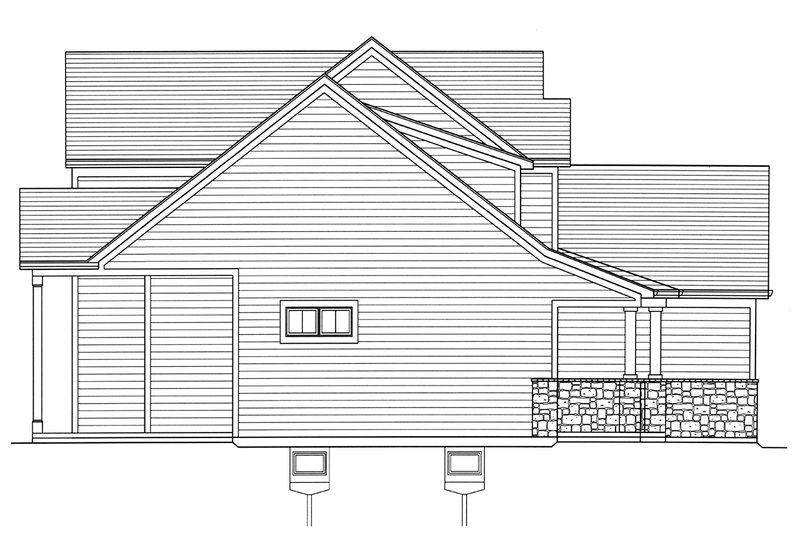

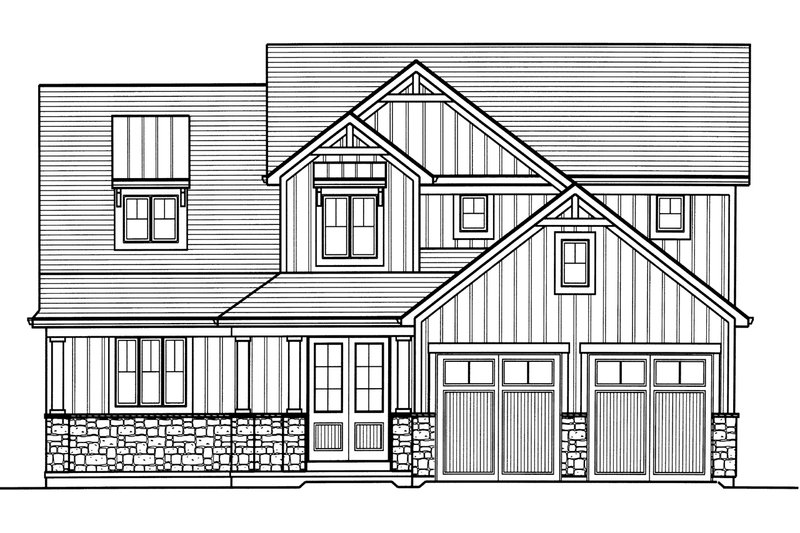

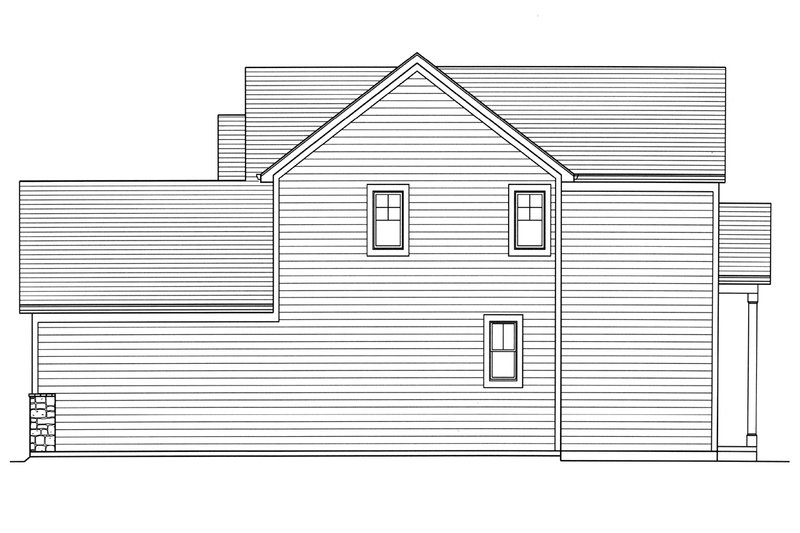

- Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
- Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).

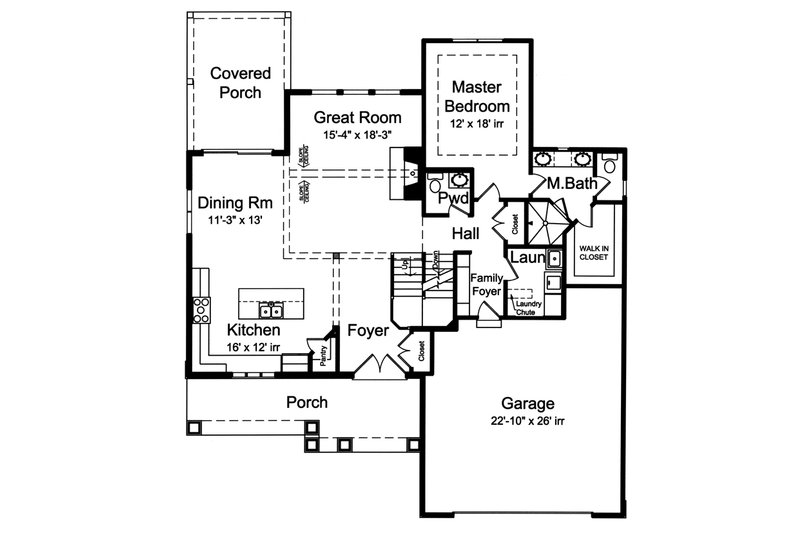

- Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
- Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys
- Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
- Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
- Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
- Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
- Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
- Fireplace detail shows how the fireplace is to be built.
- Wall section shows typical framing detail of house.
Questions? Call 1-888-447-1946
Plan Set
| PDF Set : $845.75 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Reproducible Set : $845.75 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
| 5 Copy and PDF Set : $892.50 |
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| 8 Copy Set : $892.50 |
8 printed plan sets mailed to you. |
| Eight Copy and PDF Set : $913.75 |
8 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| CAD Set : $1402.50 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
| Study Set : $675.75 |
One electronic set for bidding purposes only. Not a legal building set for construction. |
Foundation
| Basement: $0.00 |
Ideal for level lot, lower level of home partially or fully underground. |
Framing
| Wood 2x4: $0.00 |
Wood 2x4 |
Additional Options
| Right-Reading Reverse : $127.50 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Audio Video Design : $85.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $33.15 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
