PLAN 417-723

Mediterranean Exterior - Front Elevation Plan #417-723

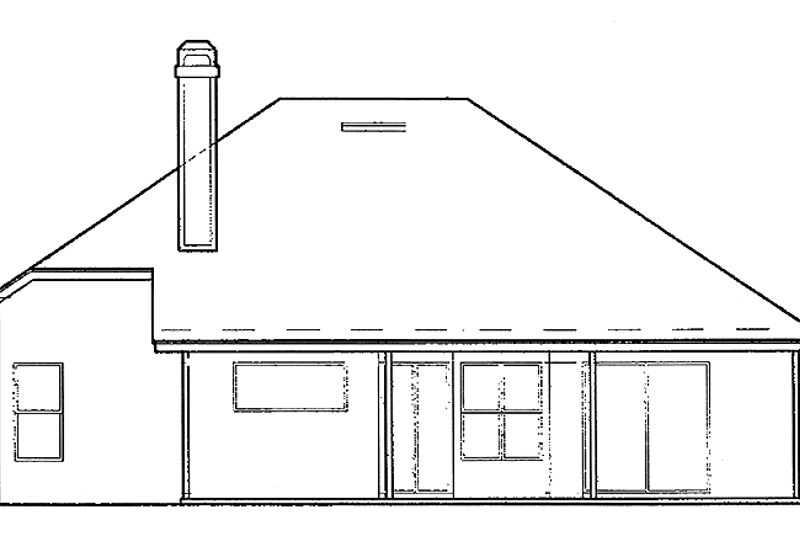

Mediterranean Exterior - Rear Elevation Plan #417-723

Select Plan Set Options

What's included?
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets
Printed sets showing plan in reverse, text and dimensions will be backwards.
NOW $756.00
You save $84.00
(10% savings)
Sale ends soon!
Also order by phone: 1-888-447-1946
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 417-723

Key Specs

sq ft





This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description

Formal living/dining spaces bring tradition back to house design. Bedroom 2 is perfect for in-laws and guests with a private pool bath. Bedroom 4 can easily become a home office/library with its double doors that can open into the living room. Mitered glass gives the breakfast area an airy feel. The kitchen is a dream with its walk-in pantry and bar seating. Double doors open into the master suite with a grand bed wall, sumptuous bath and a step-down "doorless" shower.

Floor Plans

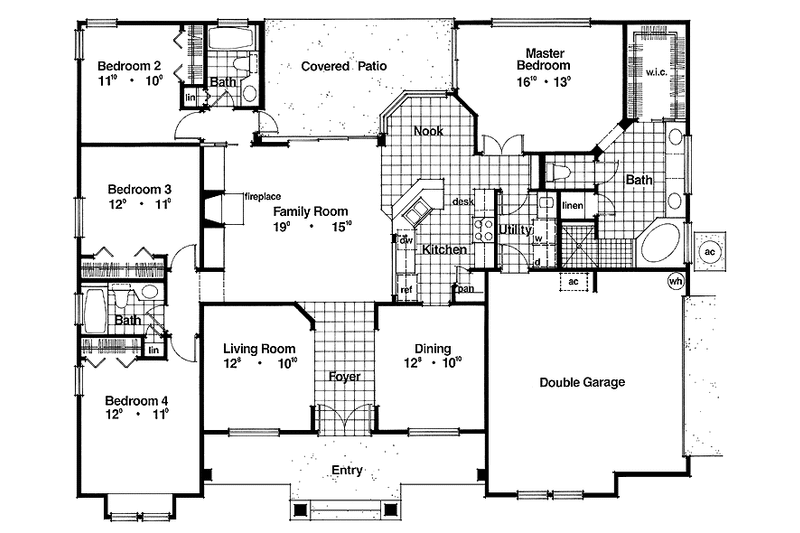

Floor Plan - Main Floor Plan

Full Specs & Features

Depth : 49' 11"
Height : 20'
Width : 61' 8"
First Floor: 2131 sq/ft height 10'
Garage: 439 sq/ft
Patio: 197 sq/ft
Porch: 142 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Split Bedrooms
Kitchen Features
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Open Floor Plan
Storage Area
Outdoor Spaces

Bath 2:

68 sq/ft width 8' 10" x depth 7' 8"

Bath 3:

42 sq/ft width 5' 8" x depth 8' 4"

Bedroom 2:

118 sq/ft width 11' 10" x depth 10'

Bedroom 3:

132 sq/ft width 12' x depth 11'

Bedroom 4:

132 sq/ft width 12' x depth 11'

Covered Back porch:

197 sq/ft width 19' x depth 12' 2"

Covered Front porch:

142 sq/ft width 28' 4" x depth 8'

Dining Room:

135 sq/ft width 10' 10" x depth 12' 6"

Family Room:

301 sq/ft width 19' x depth 15' 10"


439 sq/ft width 20' 4" x depth 22' 3"


439 sq/ft width 20' 4" x depth 22' 3"


113 sq/ft width 10' x depth 11' 4"

Laundry Room:

45 sq/ft width 6' x depth 7' 6"

Living Room:

135 sq/ft width 10' 10" x depth 12' 6"

Master Closet:

62 sq/ft width 6' 4" x depth 9' 10"

Master Bath:

134 sq/ft width 10' 2" x depth 13' 2"

Master Bedroom:

219 sq/ft width 16' 10" x depth 13'


81 sq/ft width 9' x depth 9'

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
5 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.


Ideal for level lot, single layer concrete poured directly on grade.


Wood 2x4:
Wood 2x4

Additional Options

Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
