PLAN 46-493

Photographs may show modified designs.

Home Plan - Traditional Exterior - Front Elevation Plan #46-493

Home Plan - Traditional Exterior - Rear Elevation Plan #46-493

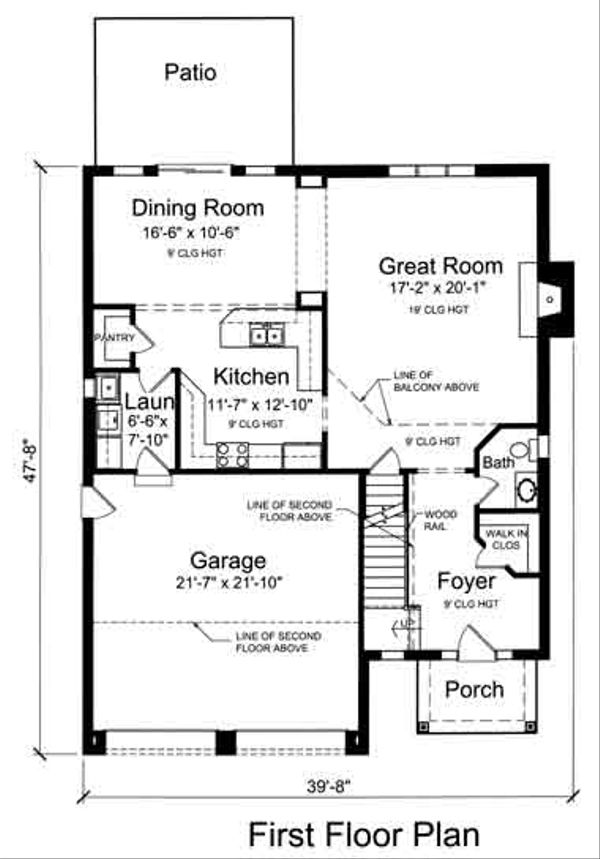

Home Plan - Traditional Floor Plan - Main Floor Plan #46-493

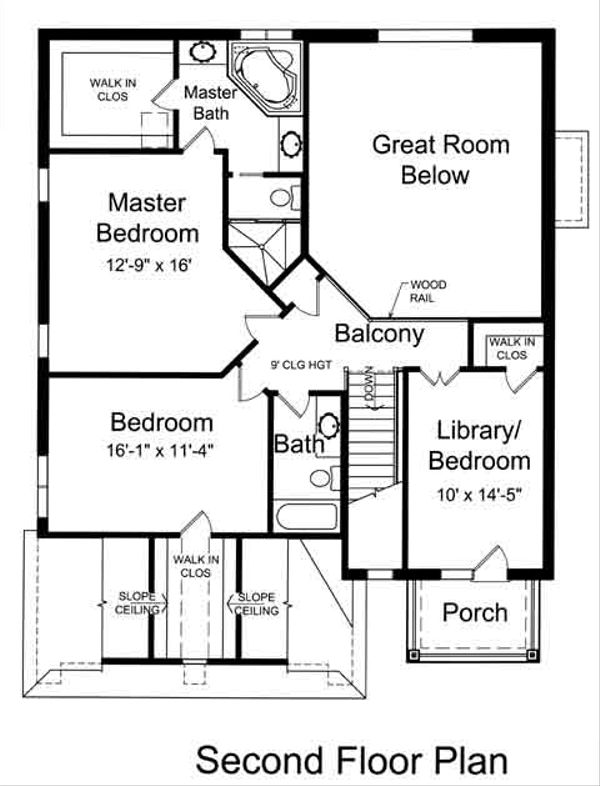

Home Plan - Traditional Floor Plan - Upper Floor Plan #46-493

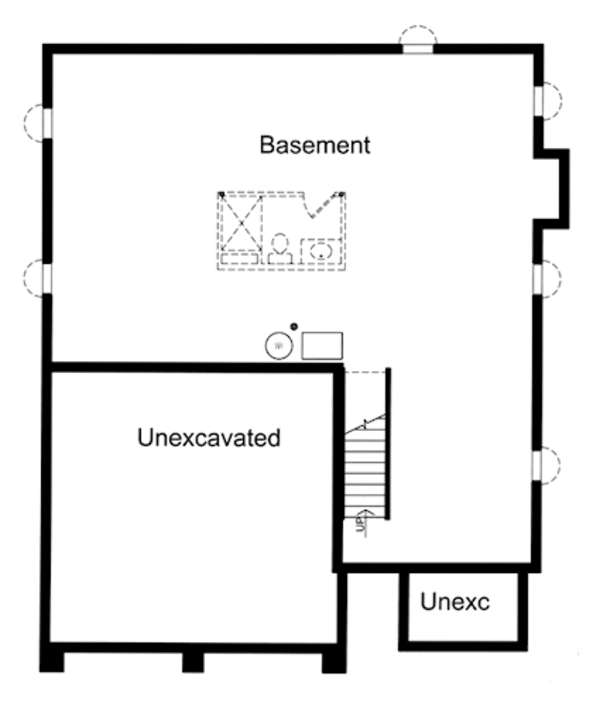

Home Plan - Traditional Floor Plan - Lower Floor Plan #46-493

Jump to:
All (5)
Exterior (2)
Floor plans (3)

Get Personalized Help

Home > Style > Traditional

Key Specs

2137
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$200.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$55.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

$1050.00

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBSUMMER

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 46-493

Home > Style > Traditional

Key Specs

2137
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This traditional design floor plan is 2137 sq ft and has 3 bedrooms and 2.5 bathrooms.

Floor Plans

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

Floor Plan - Lower Floor

Reverse

Full Specs & Features

Dimension

Depth : 47' 8"

Height : 30' 2"

Width : 39' 8"

Area

First Floor: 1112 sq/ft height 9'

Garage: 448 sq/ft height 9'

Porch: 58 sq/ft

Second Floor: 1025 sq/ft height 9'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Upper Ceiling Ft : 9'

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Roof Load : 47

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick/Shingle

Framing : 2"x4"

Bedroom Features

Upstairs Bedrooms

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Eating Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Main Floor Laundry

Storage Area

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch

Rooms

Balcony:

58 sq/ft width 9' 8" x depth 6'

Bedroom 2:

182 sq/ft width 16' 1" x depth 11' 4"

Bedroom 2 Closet:

53 sq/ft width 6' 1" x depth 8' 10"

Bedroom 3:

144 sq/ft width 10' x depth 14' 5"

Bedroom 3 Closet:

144 sq/ft width 10' x depth 14' 5"

Coat Closet:

24 sq/ft width 5' x depth 4' 11"

Covered Porch:

58 sq/ft width 9' 8" x depth 6'

Dining Room:

173 sq/ft width 16' 6" x depth 10' 6"

Foyer:

56 sq/ft width 9' 9" x depth 5' 10"

Garage:

453 sq/ft width 21' 7" x depth 21'

Hall Bathroom:

31 sq/ft width 4' 10" x depth 6' 7"

Kitchen:

148 sq/ft width 11' 7" x depth 12' 10"

Laundry Room:

50 sq/ft width 6' 6" x depth 7' 10"

Linen Closet:

5 sq/ft width 3' 6" x depth 1' 8"

Master Bathroom:

141 sq/ft width 9' 2" x depth 15' 5"

Master Bedroom:

204 sq/ft width 12' 9" x depth 16'

Master Closet:

72 sq/ft width 9' 1" x depth 8'

Pantry:

14 sq/ft width 3' 1" x depth 4' 10"

Porch - Front:

57 sq/ft width 9' 6" x depth 6'

Powder Room:

31 sq/ft width 4' 10" x depth 6' 7"

Toilet Closet:

16 sq/ft width 5' 5" x depth 3' 1"

Walk-In Closet:

25 sq/ft width 5' x depth 5'

What's Included In This Plan Set

See a sample plan set

Special Offer: When you buy a 5 copy or 8 copy printed set, a PDF set will be emailed to you.

Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).
Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys

Miscellaneous Details:

Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
Fireplace detail shows how the fireplace is to be built.
Wall section shows typical framing detail of house.

Questions? Call 1-888-447-1946

Plan Set

PDF Set:
$1050.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy and PDF Set:
$1150.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Eight Copy and PDF Set:
$1180.00

8 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set:
$1825.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Study Set:
$870.00

One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation

Basement:
$0.00

Ideal for level lot, lower level of home partially or fully underground.

Framing

Wood 2x4:
$0.00

Wood 2x4 Exterior Walls

Additional Options

Right-Reading Reverse:
$200.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$55.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
