PLAN 46-140

Key Specs


2199
sq ft

3
Beds

2.5
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description


Multiple gables, stone and siding exterior and a covered entry create a beautiful facade on this one level home. The great room, dining area and spacious kitchen combine to offer a large family gathering place. The placement of the entertainment alcove and fireplace provide a view from all three locations. The three sets of French doors across the rear provide an abundance of light. Additional windows in the dining area are set high to provide space for a sideboard on the outside wall. An eleven foot ceiling height tops the great room and dining area. Generous counter space, cabinetry, an island, and pantry in the kitchen, in addition to the adjacent laundry room and a small home office form an efficient work area. For privacy, the master bedroom suite is separated from the secondary bedrooms and enjoys a 10' ceiling height, and deluxe dressing room with whirlpool tub, double bowl vanity, shower and large walk#45;in closet. A spectacular covered rear porch with fireplace extends the outdoor enjoyment to cooler weather.

Floor Plans

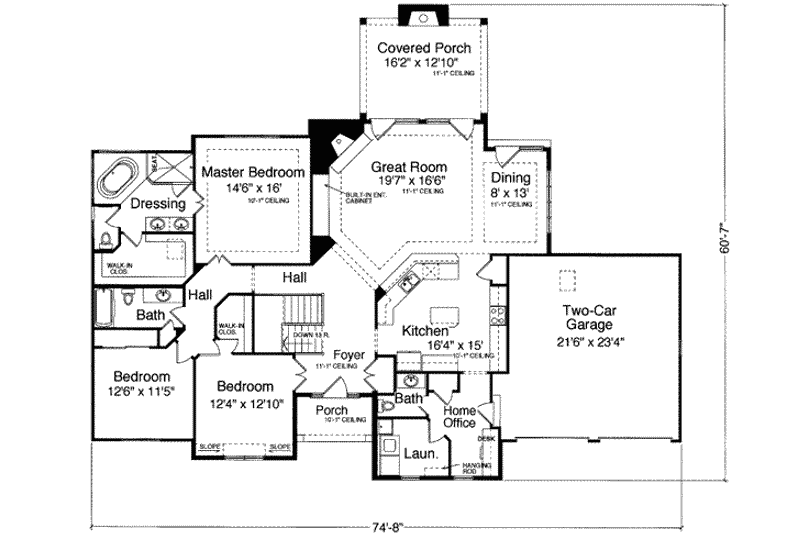

Floor Plan - Main Floor Plan
Reverse
Save

Full Specs & Features


Dimension
Depth : 60' 7"
Height : 26'
Width : 74' 8"
Area
Basement Unfinished: 2199 sq/ft
First Floor: 2199 sq/ft
Garage: 511 sq/ft
Porch: 262 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : 2"x4"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Storage Area
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms

Bedroom 2:

142 sq/ft width 12' 6" x depth 11' 5"

Bedroom 3:

158 sq/ft width 12' 4" x depth 12' 10"

Dining Room:

104 sq/ft width 8' x depth 13'

Garage:

501 sq/ft width 21' 6" x depth 23' 4"

Gathering Room:

323 sq/ft width 19' 7" x depth 16' 6"

Kitchen:

244 sq/ft width 16' 4" x depth 15'

Laundry room:

65 sq/ft width 9' x depth 7' 3"

Master bath:

125 sq/ft width 12' 6" x depth 10'

Master Bedroom:

232 sq/ft width 14' 6" x depth 16'

Master WIC:

80 sq/ft width 12' 6" x depth 6' 5"

Office:

27 sq/ft width 6' x depth 4' 6"

Pantry:

6 sq/ft width 3' 6" x depth 6' 5"

What's Included In This Plan Set


See a sample plan set Special Offer: When you buy a 5 copy or 8 copy printed set, a PDF set will be emailed to you.
  • Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
  • Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).
  • Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
  • Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys
Miscellaneous Details:
  • Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
  • Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
  • Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
  • Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
  • Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
  • Fireplace detail shows how the fireplace is to be built.
  • Wall section shows typical framing detail of house.
