PLAN 46-795
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Plan Description
A covered wrap around porch combines with a siding and stone façade to create a house that will excite the most descriminating buyer. Large rooms, sloped ceilings, a kitchen with an island and wet bar, and a Master Bedroom Suite that is designed to offer luxury to the homeowner is topped by a second floor with a balcony, that overlooks the Great Room and Foyer that leads to three additional Bedrooms.
Full Specs & Features
Dimension
Depth : 57' 8"
Height : 27'
Width : 68' 4"
Height : 27'
Width : 68' 4"
Area
Basement Unfinished: 1477 sq/ft
First Floor: 1477 sq/ft height 9' 1"
Porch: 551 sq/ft height 9' 8"
Second Floor: 756 sq/ft height 8' 1"
First Floor: 1477 sq/ft height 9' 1"
Porch: 551 sq/ft height 9' 8"
Second Floor: 756 sq/ft height 8' 1"
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 7:12
Roof Framing : Truss
Roof Type : Shingle
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x4
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Kitchenette Wet Bar
Additional Room Features
Great Room Living Room
Loft
Main Floor Laundry
Loft
Main Floor Laundry
Garage Features
Side Entry Garage
Outdoor Spaces
Balcony
Covered Front Porch
Covered Rear Porch
Covered Front Porch
Covered Rear Porch
Rooms
Bathroom 2:
54 sq/ft width 5' x depth 10' 11"
Bedroom 2:
121 sq/ft width 11' 1" x depth 11'
Bedroom 2 Closet:
14 sq/ft width 2' 1" x depth 7' 1"
Bedroom 3:
135 sq/ft width 12' 4" x depth 11'
Bedroom 3 Closet:
14 sq/ft width 2' 1" x depth 7' 1"
Bedroom 4:
132 sq/ft width 12' x depth 11'
Bedroom 4 Closet:
21 sq/ft width 4' 1" x depth 5' 3"
Coat Closet:
12 sq/ft width 2' 1" x depth 5' 10"
Dining Room:
143 sq/ft width 11' x depth 13'
Foyer:
139 sq/ft width 10' 1" x depth 13' 10"
Garage:
491 sq/ft width 22' 4" x depth 22'
Garage Two:
252 sq/ft width 12' x depth 21'
Great Room:
320 sq/ft width 16' x depth 20'
Hall Closet:
6 sq/ft width 2' 1" x depth 3' 2"
Kitchen:
195 sq/ft width 15' 8" x depth 12' 6"
Laundry Room:
48 sq/ft width 6' 1" x depth 8'
Master Bathroom:
150 sq/ft width 13' 11" x depth 10' 10"
Master Bedroom:
176 sq/ft width 12' x depth 14' 8"
Master Closet:
67 sq/ft width 6' 8" x depth 10' 1"
Powder Room:
26 sq/ft width 4' 8" x depth 5' 8"
What's Included In This Plan Set
Special Offer: When you buy a 5 copy or 8 copy printed set, a PDF set will be emailed to you.

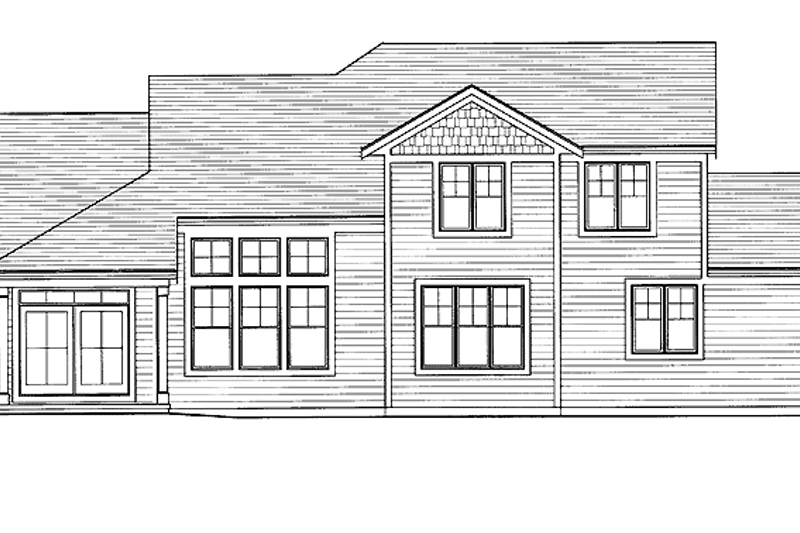

- Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
- Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).

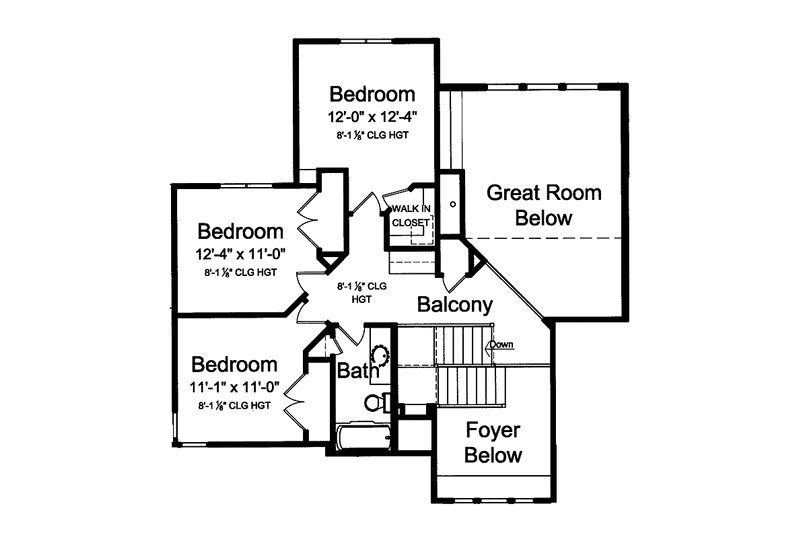

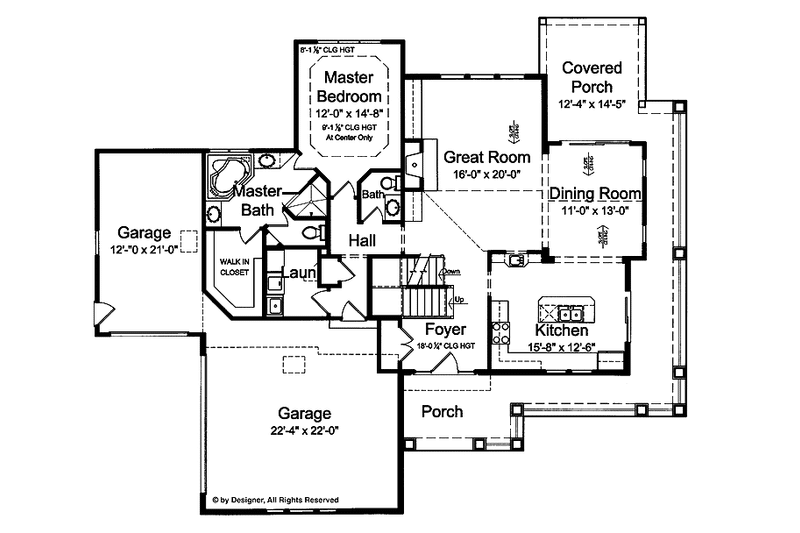

- Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
- Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys
- Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
- Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
- Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
- Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
- Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
- Fireplace detail shows how the fireplace is to be built.
- Wall section shows typical framing detail of house.
