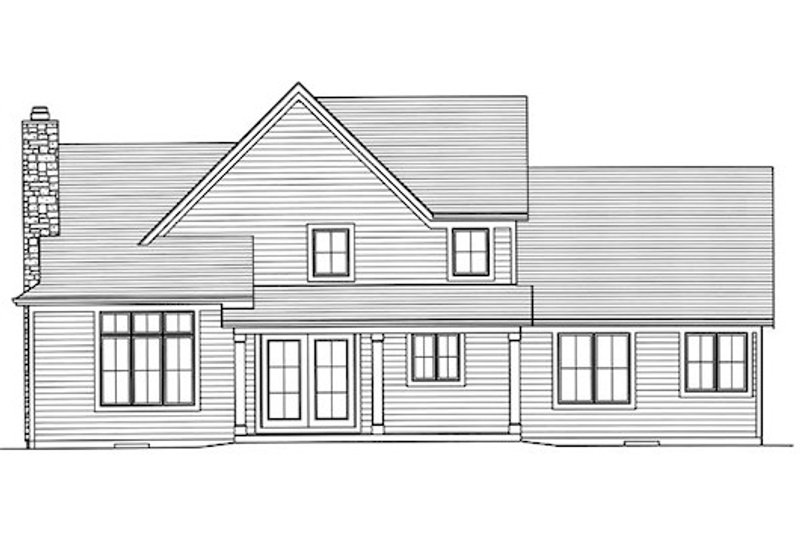

Home Plan - European Exterior - Rear Elevation Plan #46-477

Home Plan - European Floor Plan - Main Floor Plan #46-477

Home Plan - European Floor Plan - Upper Floor Plan #46-477

Jump to:
All (4)
Exterior (2)
Floor plans (2)

Get Personalized Help

Home > Style > European

Key Specs

2234
sq ft

4
Beds

2.5
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$200.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$55.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$295.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List

$185.00

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Subtotal

$1050.00

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBSUMMER

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 46-477

Home > Style > European

Key Specs

2234
sq ft

4
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This european design floor plan is 2234 sq ft and has 4 bedrooms and 2.5 bathrooms.

Floor Plans

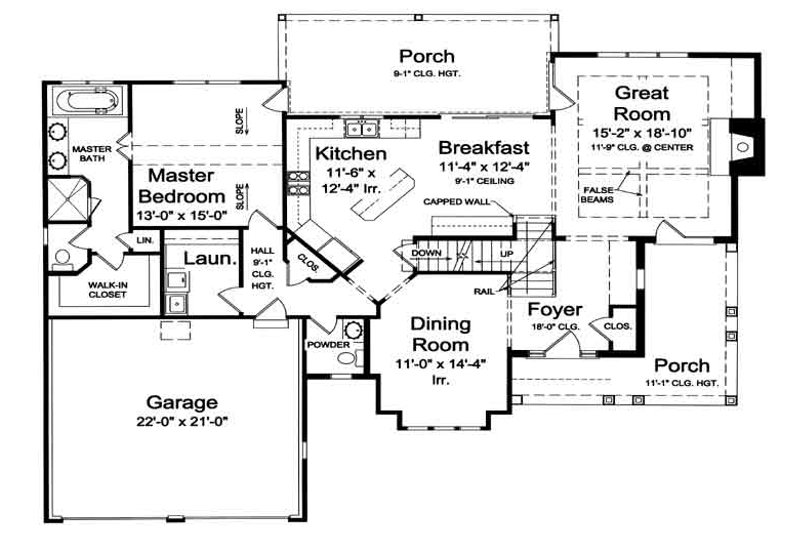

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

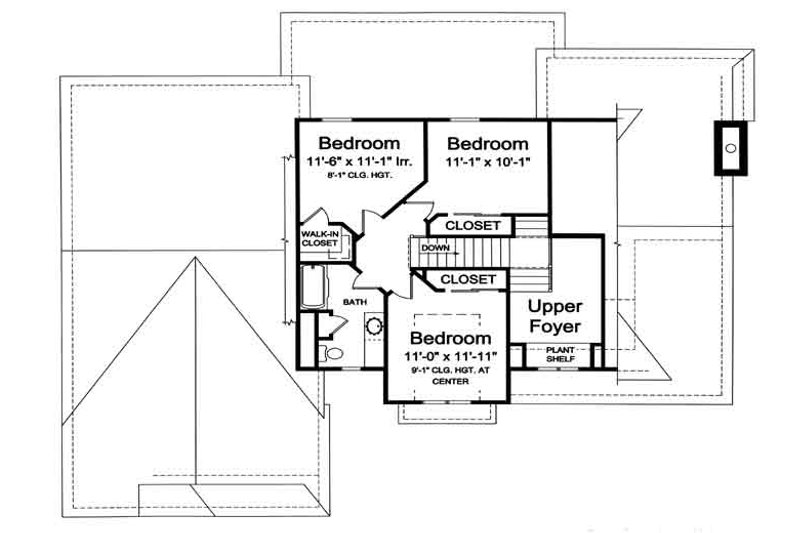

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 53' 4"

Height : 31'

Width : 62' 2"

Area

Basement Unfinished: 1624 sq/ft height 7' 10"

First Floor: 1624 sq/ft height 9' 1"

Garage: 457 sq/ft height 9' 1"

Second Floor: 610 sq/ft height 8' 1"

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Upper Ceiling Ft : 8'

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Load : 47

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : 2"x4"

Bedroom Features

Main Floor Master Bedroom

Split Bedrooms

Upstairs Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchen Island

Additional Room Features

Great Room Living Room

Main Floor Laundry

Storage Area

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Code Compliance

Irc 2006

Rooms

Bathroom 2:

86 sq/ft width 7' 8" x depth 11' 3"

Bedroom 2:

132 sq/ft width 11' x depth 12'

Bedroom 2 Closet:

15 sq/ft width 7' 5" x depth 2' 1"

Bedroom 3:

111 sq/ft width 11' 1" x depth 10' 1"

Bedroom 3 Closet:

14 sq/ft width 6' 10" x depth 2' 1"

Bedroom 4:

127 sq/ft width 11' 6" x depth 11' 1"

Bedroom 4 Closet:

14 sq/ft width 4' 10" x depth 3'

Breakfast Room:

136 sq/ft width 11' 4" x depth 12' 1"

Dining Room:

157 sq/ft width 11' x depth 14' 4"

Foyer:

97 sq/ft width 8' 6" x depth 11' 6"

Garage:

462 sq/ft width 22' x depth 21'

Great Room:

273 sq/ft width 15' 2" x depth 18'

Kitchen:

138 sq/ft width 11' 6" x depth 12' 1"

Laundry Room:

97 sq/ft width 8' 6" x depth 11' 6"

Master Bathroom:

122 sq/ft width 7' x depth 17' 6"

Master Bedroom:

195 sq/ft width 13' x depth 15'

Master Closet:

62 sq/ft width 9' 9" x depth 6' 5"

Powder Room:

29 sq/ft width 5' x depth 5' 10"

What's Included In This Plan Set

See a sample plan set

Special Offer: When you buy a 5 copy or 8 copy printed set, a PDF set will be emailed to you.

Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).
Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys

Miscellaneous Details:

Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
