PLAN 124-887
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Plan Description
While the exterior is traditional, the interior of this ranch-style home is totally contemporary. Bright and spacious gathering spaces fill its core. Its generously sized kitchen is open to a dining room with sliding door access to a covered deck. Luxuries abound in the owners’ suite, while the den, just inside the front door, is in an ideal location for a home office.
Full Specs & Features
Dimension
Depth : 64'
Height : 25' 11"
Width : 74'
Height : 25' 11"
Width : 74'
Area
Bonus: 286 sq/ft height 9'
First Floor: 2283 sq/ft height 9'
Garage: 599 sq/ft height 9'
First Floor: 2283 sq/ft height 9'
Garage: 599 sq/ft height 9'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 10:12
Roof Framing : Truss
Roof Load : 25
Roof Type : Shingle
Roof Framing : Truss
Roof Load : 25
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : siding/stone
Framing : 2x6
Framing : 2x6
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Mud Room
Great Room Living Room
Main Floor Laundry
Mud Room
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Covered Rear Porch
More
Empty Nester
Energy Efficient Features
Energy Efficient Design
Rooms
Bedroom 2:
width 11' x depth 11' 4"
Bedroom 3:
width 11' x depth 11'
Bonus:

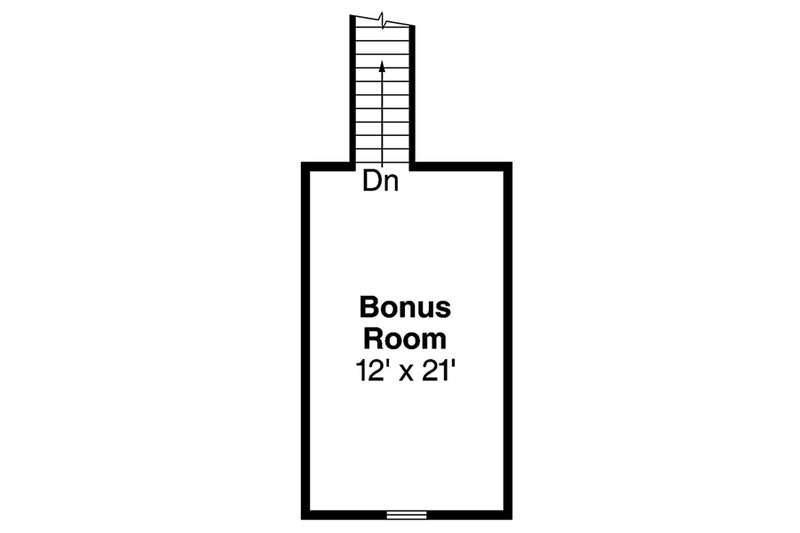

286 sq/ft width 12' x depth 21'
Den:
width 11' x depth 13' 4"
Dining:
width 11' 4" x depth 14' 4"
Garage:
599 sq/ft width 23' x depth 25' 6"
Great Room:
width 20' x depth 17'
Master Bedroom:
width 15' 6" x depth 14'
What's Included In This Plan Set
Please note, if ordering a PDF set, it is not-modifiable. The CAD set is best for making local modifications
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
- Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

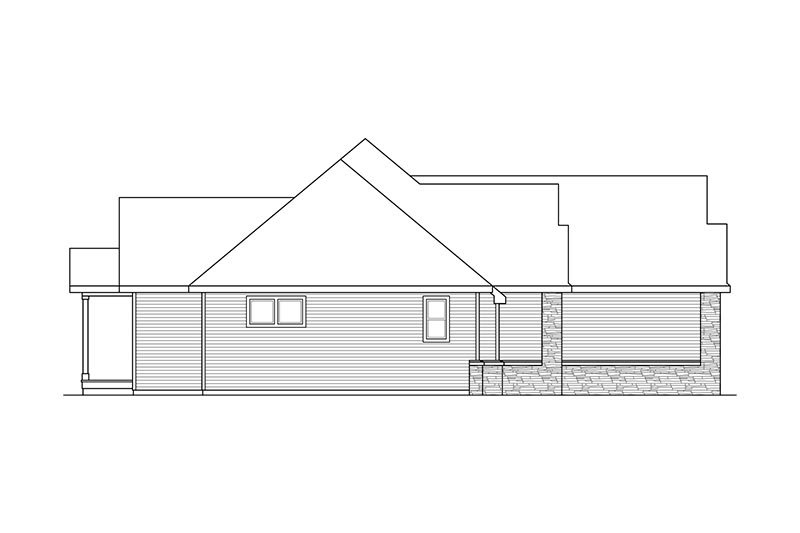

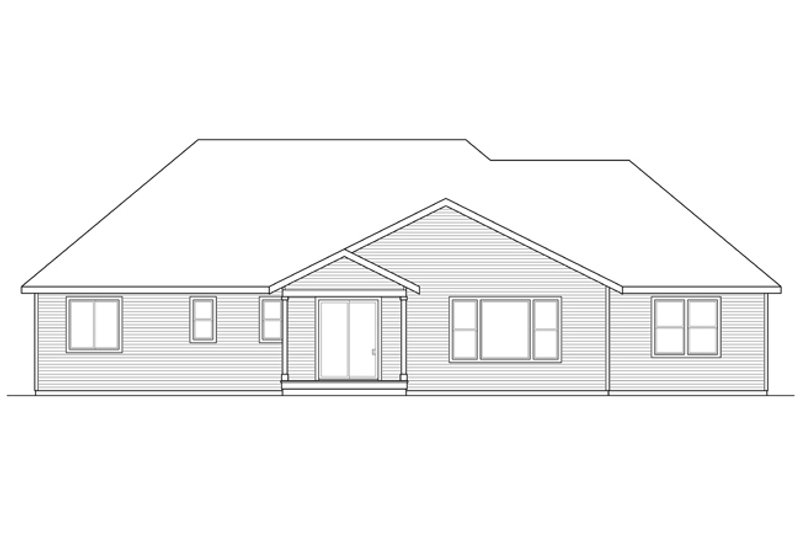

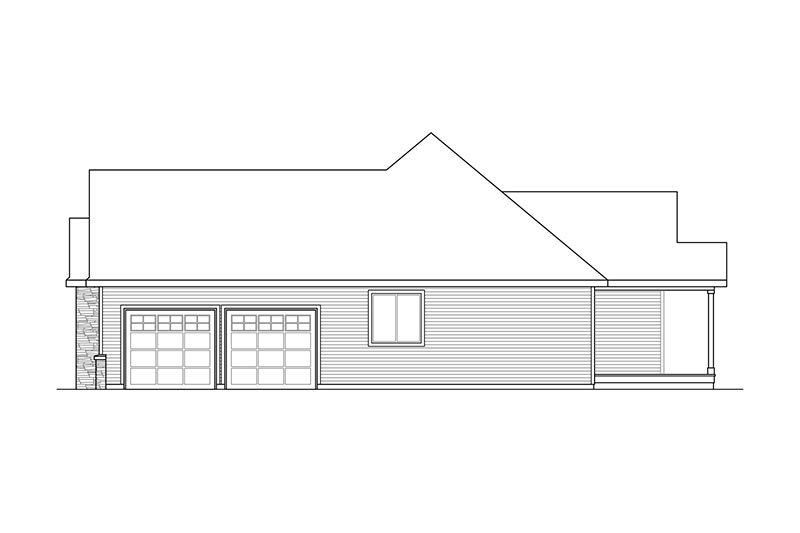

- Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
- Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
- Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
- Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
- Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
- Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
- Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
- Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
Questions? Call 1-888-447-1946
Plan Set
| PDF Print Set : $975.00 |
A non-modifiable, print only PDF file |
| 5 Copy and PDF Set : $1085.00 |
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Eight Copy and PDF Set : $1195.00 |
8 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| PDF Master Set : $1955.00 |
An unlocked, modifiable PDF file |
| CAD Set : $2095.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
| Master Builder Package : $2345.00 |
Includes CAD Set, PDF Masters and Unlimited Build License |
| Single Set : $745.00 |
One printed set for bidding purposes only. Not a legal building set for construction. |
Foundation
| Crawlspace: $250.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
| Slab: $250.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
| Basement: $325.00 |
Ideal for level lot, lower level of home partially or fully underground. |
Additional Options
| Right-Reading Reverse : $250.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets : $55.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Additional Use License : $745.00 |
Additional Use License. |
| Audio Video Design : $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design : $100.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
