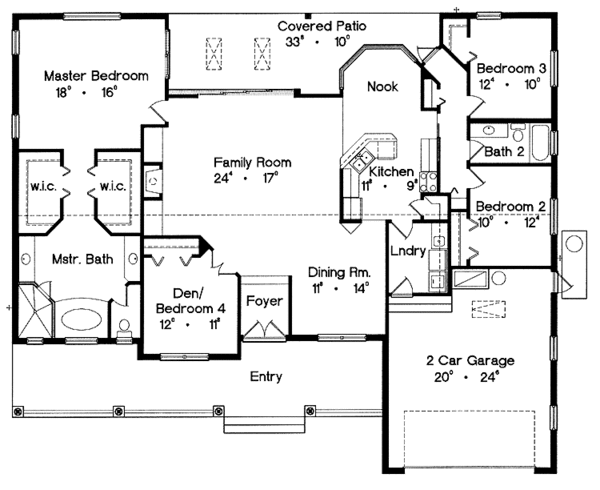

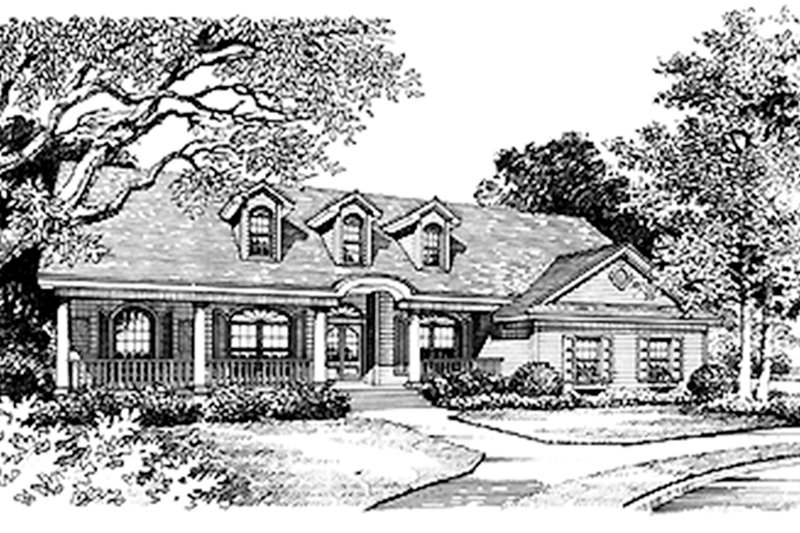

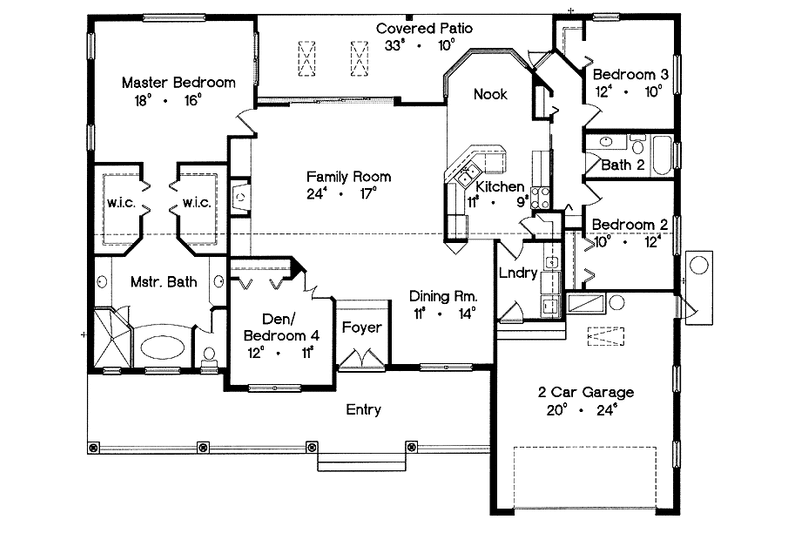

Corner quoins combined with arch-top windows and a columned entry lend an exciting facade to this four-bedroom home. The foyer is entered through double doors and introduces the open dining and family room area. The master suite occupies the left side of the plan and enjoys a sun-strewn sitting room, two walk-in closets and a luxurious bath complete with a garden tub and separate shower. The kitchen sits conveniently near the dining room and features a pantry, desk and view through the breakfast-nook windows. Two family bedrooms, sharing a full bath, reside near the kitchen. A third bedroom or guest suite is located by the family room. The family room contains a warming fireplace and media wall, which will make it a wonderful gathering place for the family.
74 sq/ft width 9' 8" x depth 7' 8"
49 sq/ft width 6' x depth 8' 4"
50 sq/ft width 10' x depth 5'
63 sq/ft width 7' 4" x depth 8' 8"
185 sq/ft width 14' 8" x depth 12' 8"
50 sq/ft width 5' x depth 10'
All plans are drawn at ¼” scale or larger and include :
|5 Copy Set
|5 printed plan sets mailed to you.|
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|Ideal for level lot, single layer concrete poured directly on grade.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
