PLAN 117-136
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Floor Plans

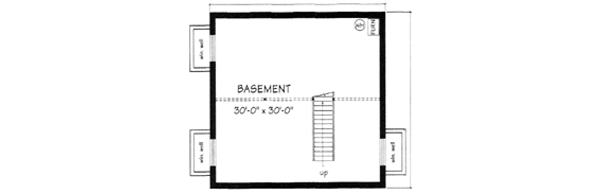

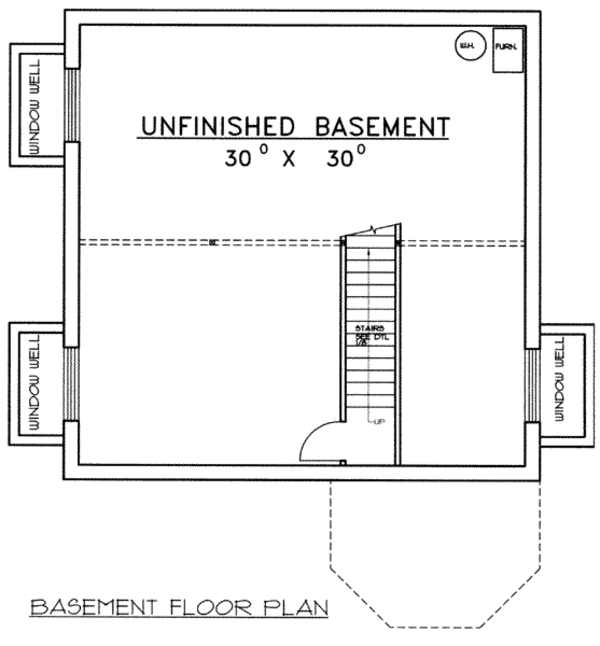

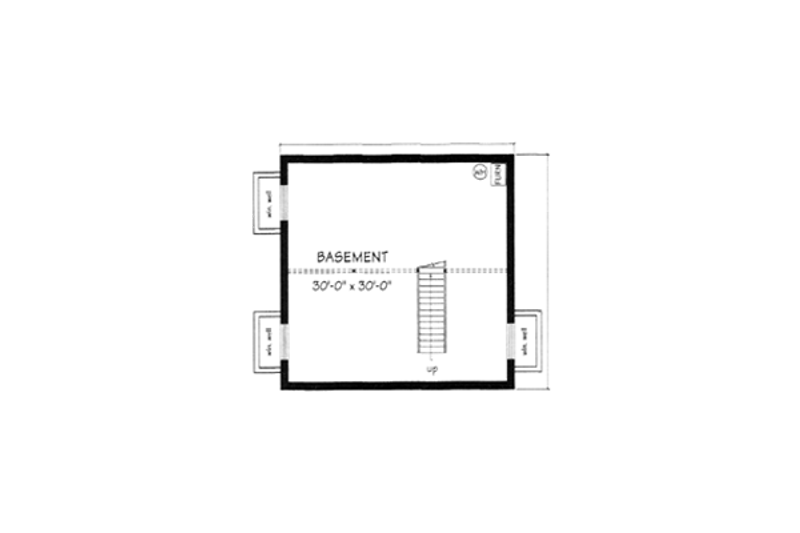

Floor Plan - Lower Floor

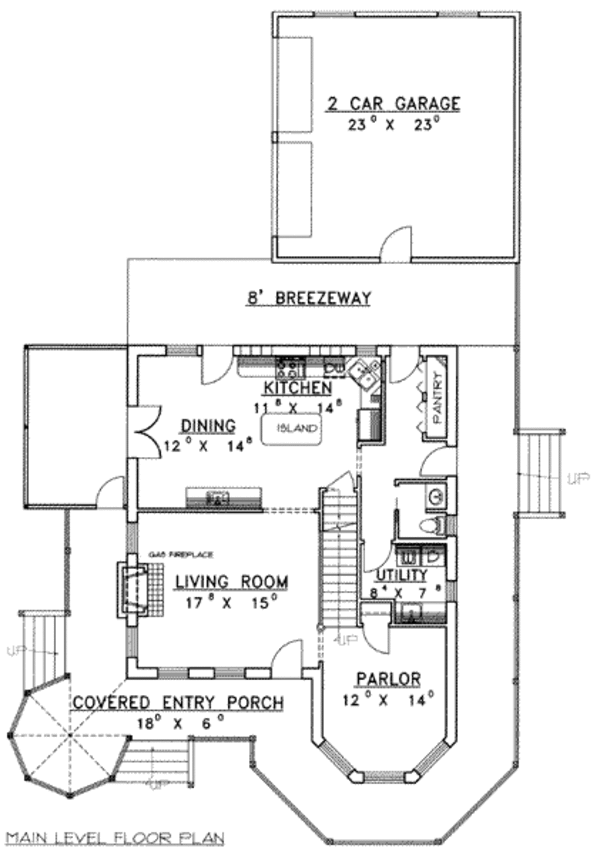

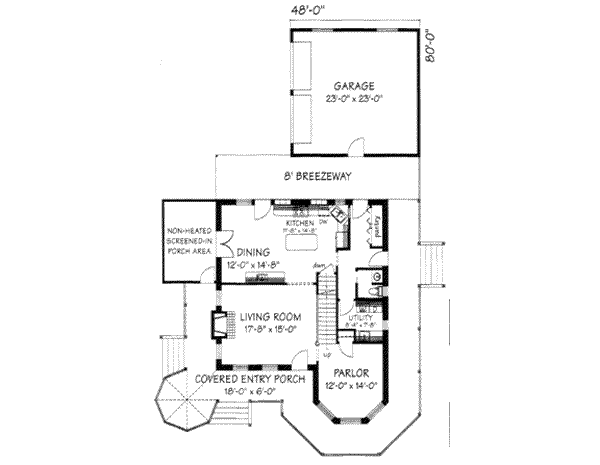

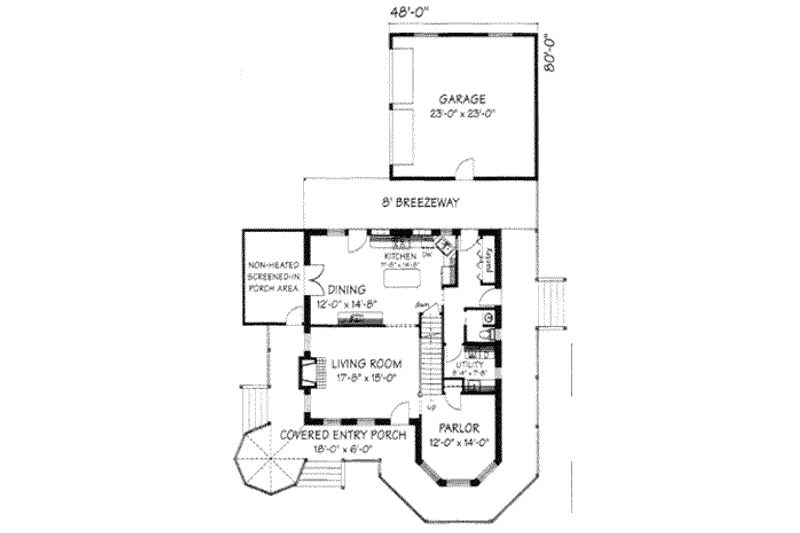

Floor Plan - Main Floor

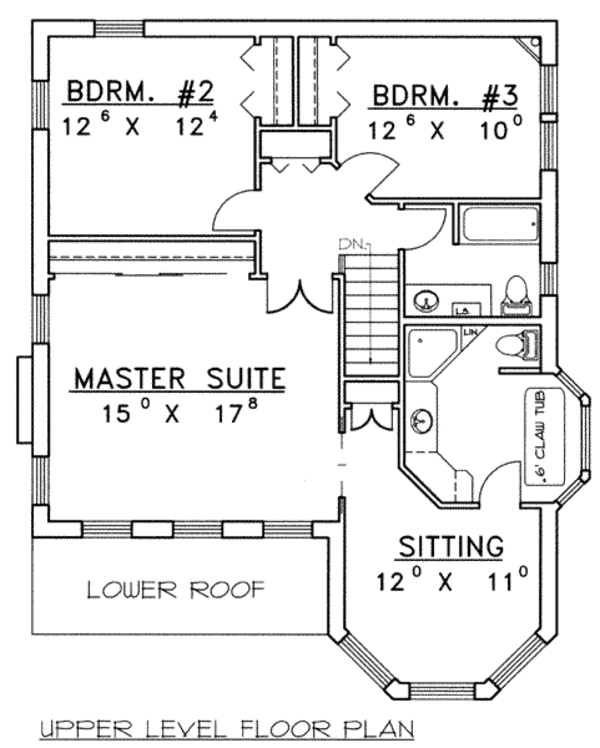

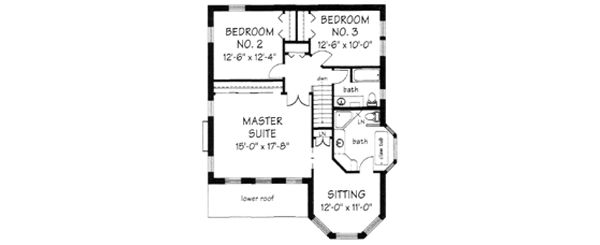

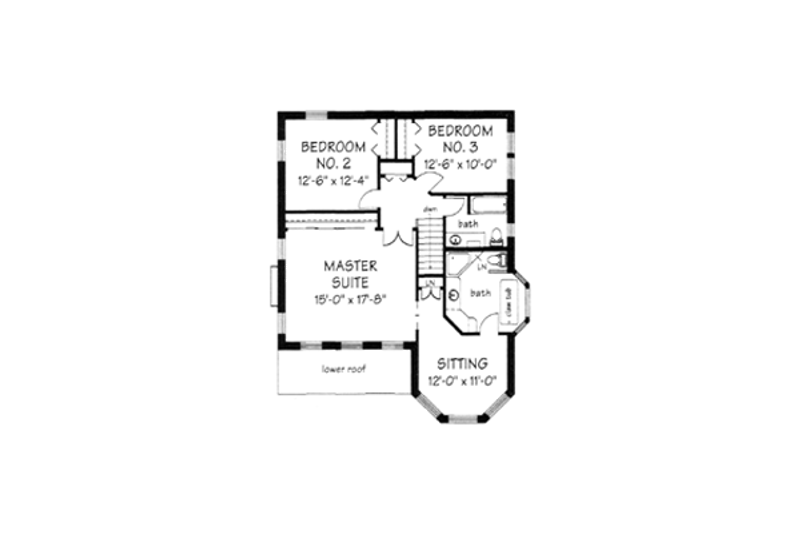

Floor Plan - Upper Floor

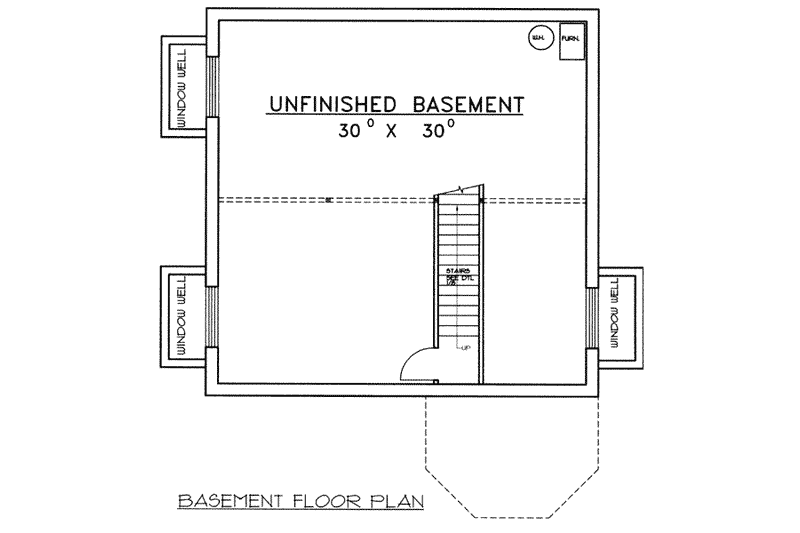

Floor Plan - Lower Floor

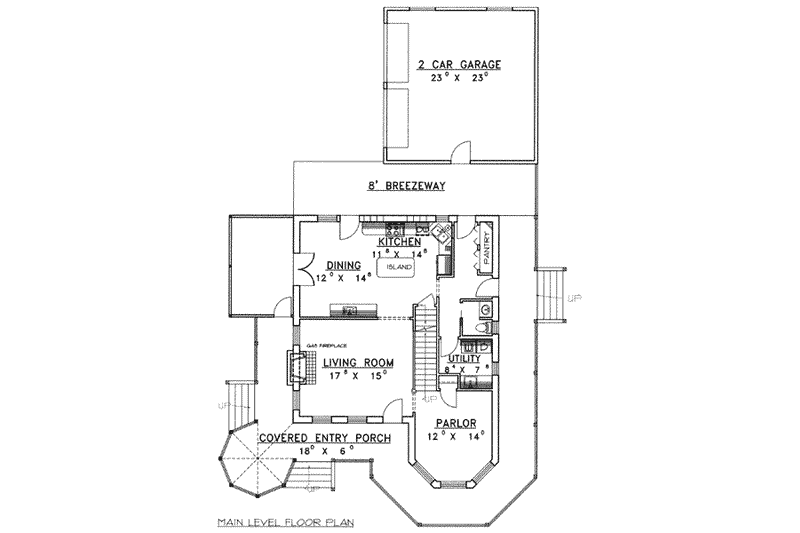

Floor Plan - Main Floor

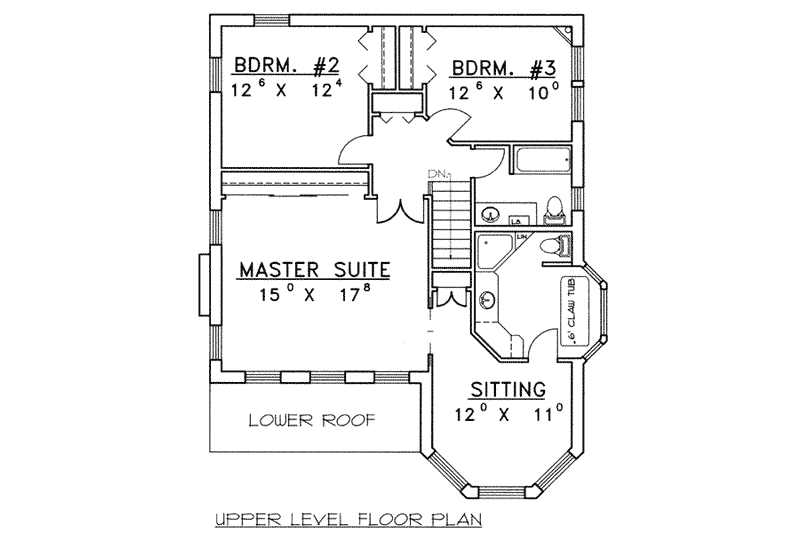

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 74'
Height : 34' 6"
Width : 38'
Height : 34' 6"
Width : 38'
Area
Basement Unfinished: 900 sq/ft
First Floor: 1148 sq/ft
Second Floor: 1164 sq/ft
First Floor: 1148 sq/ft
Second Floor: 1164 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : ICF
Framing : ICF
Bedroom Features
Upstairs Master Bedrooms
Kitchen Features
Kitchen Island
Additional Room Features
Master Sitting Area
Sunroom
Sunroom
Garage Features
Detached Garage
Side Entry Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Breezeway
Screened Porch
Wrap Around Porch
Screened Porch
Wrap Around Porch
Rooms
Basement Foundation:
900 sq/ft width 30' x depth 30'
Bedroom 2:
154 sq/ft width 12' 6" x depth 12' 4"
Bedroom 3:
125 sq/ft width 12' 6" x depth 10'
Covered Porch:
108 sq/ft width 18' x depth 6'
Dining Room:
176 sq/ft width 12' x depth 14' 8"
Garage:
529 sq/ft width 23' x depth 23'
Kitchen:
171 sq/ft width 11' 8" x depth 14' 8"
Living Room:
265 sq/ft width 17' 8" x depth 15'
Master Suite:
265 sq/ft width 15' x depth 17' 8"
Parlor:
168 sq/ft width 12' x depth 14'
Sitting Area:
132 sq/ft width 12' x depth 11'
Utility Room:
63 sq/ft width 8' 4" x depth 7' 8"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
