PLAN 46-867
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Plan Description
A beautiful façade of brick, stone and shakes add interest as you approach this charming home. The open concept first level has a great room that features a stunning 12’ beamed ceiling, a gas fireplace and window wall view of the rear porch. The modern kitchen has a large island with seating, walk-in pantry and wall oven. The spacious dining area is a grand space for formal or informal dining and the private library toward, the front of the home, offers a quiet multi-use space. Wraparound stairs lead to the second floor balcony and 3 additional bedrooms each with 6’ closets.
Full Specs & Features
Dimension
Depth : 62'
Height : 28' 4"
Width : 58' 6"
Height : 28' 4"
Width : 58' 6"
Area

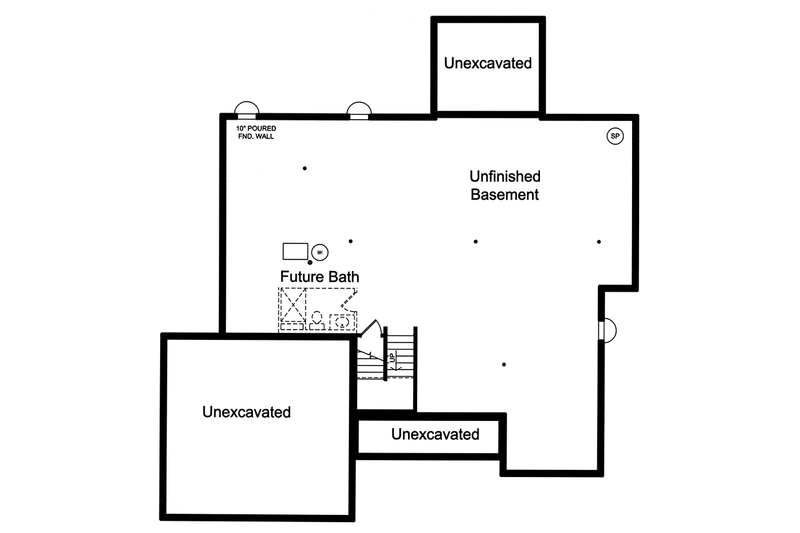

Basement Unfinished: 1780 sq/ft
First Floor: 1780 sq/ft
Garage: 511 sq/ft
Porch: 260 sq/ft
Second Floor: 635 sq/ft height 8' 1"
First Floor: 1780 sq/ft
Garage: 511 sq/ft
Porch: 260 sq/ft
Second Floor: 635 sq/ft height 8' 1"
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Composition
Secondary Pitch : 12:12
Roof Framing : Truss
Roof Type : Composition
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x4
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Mud Room
Open Floor Plan
Vaulted / Cathedral Ceilings
Great Room Living Room
Main Floor Laundry
Mud Room
Open Floor Plan
Vaulted / Cathedral Ceilings
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Covered Rear Porch
Rooms
Covered Front Porch:
90 sq/ft
Covered Rear Porch:
170 sq/ft
What's Included In This Plan Set
Special Offer: When you buy a 5 copy or 8 copy printed set, a PDF set will be emailed to you.

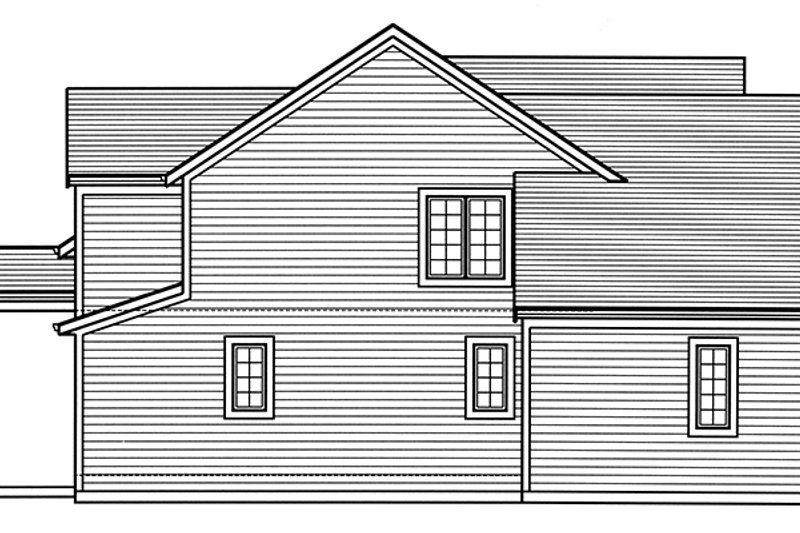

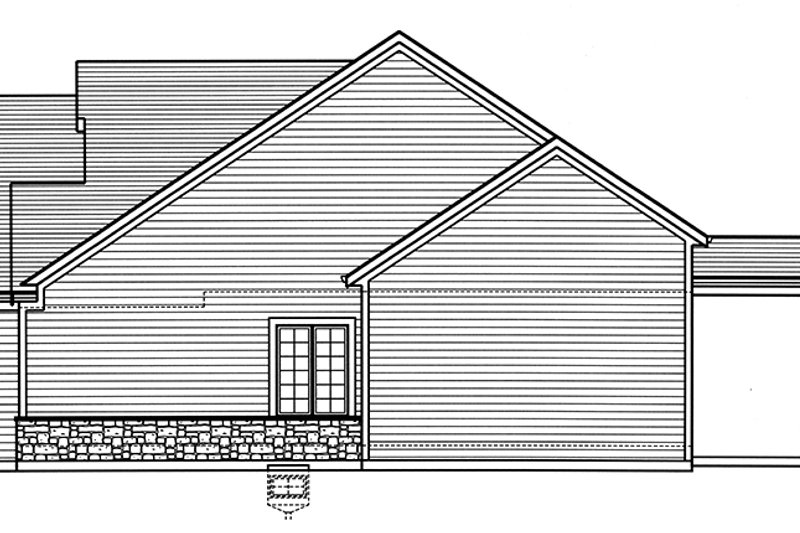

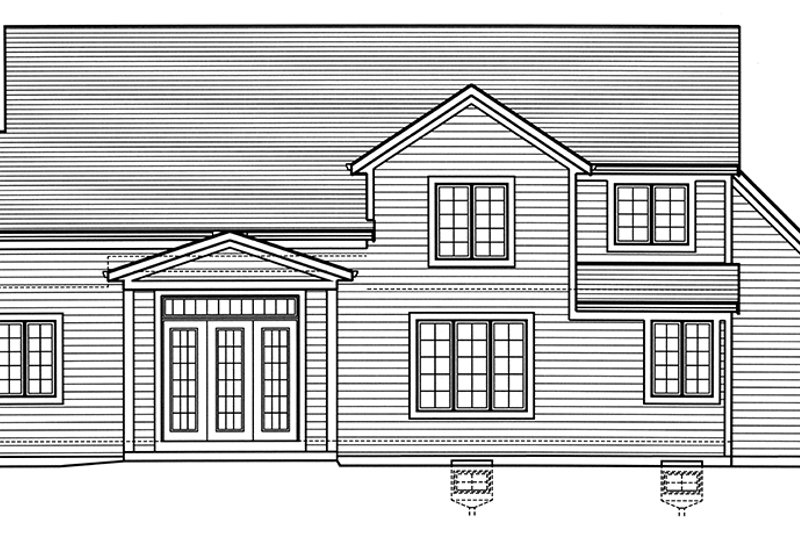

- Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.

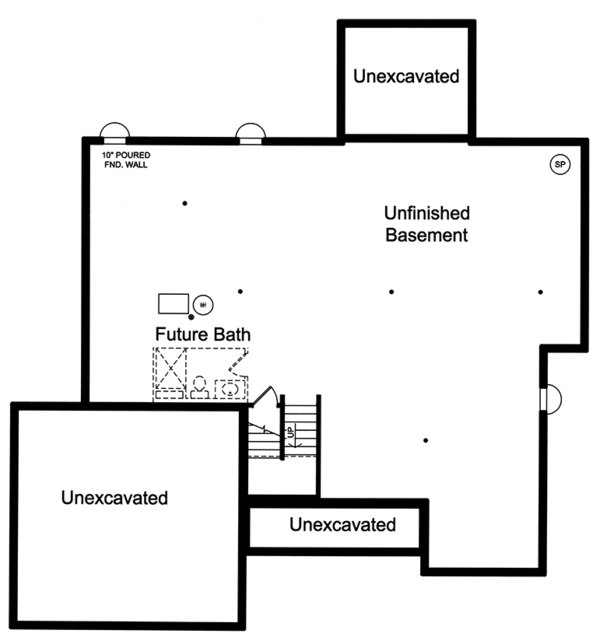

- Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).

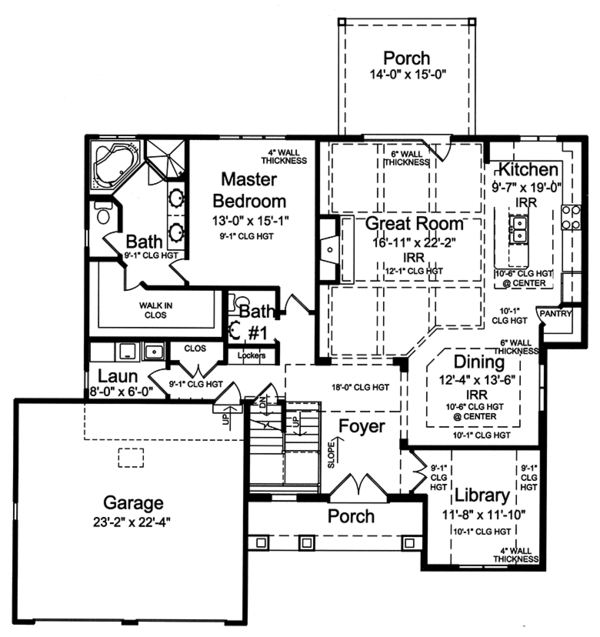

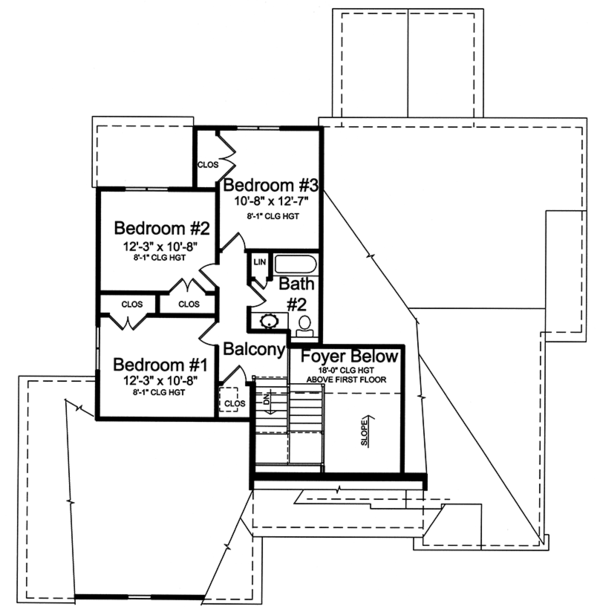

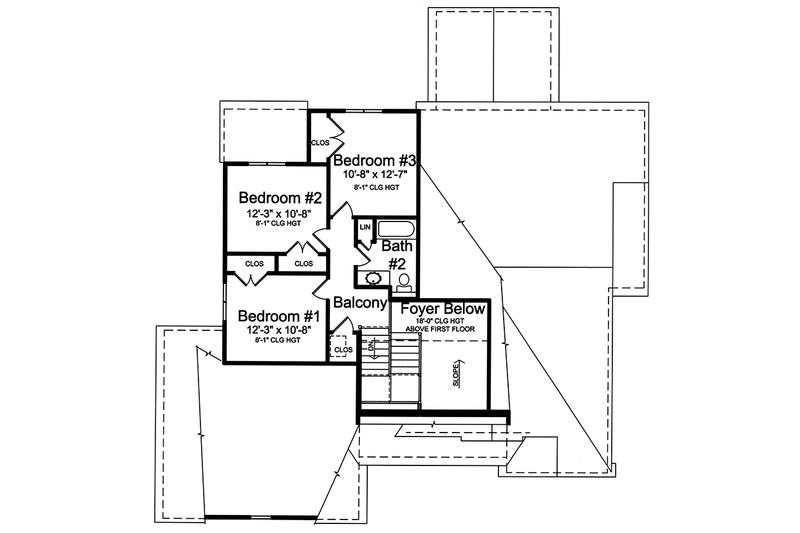

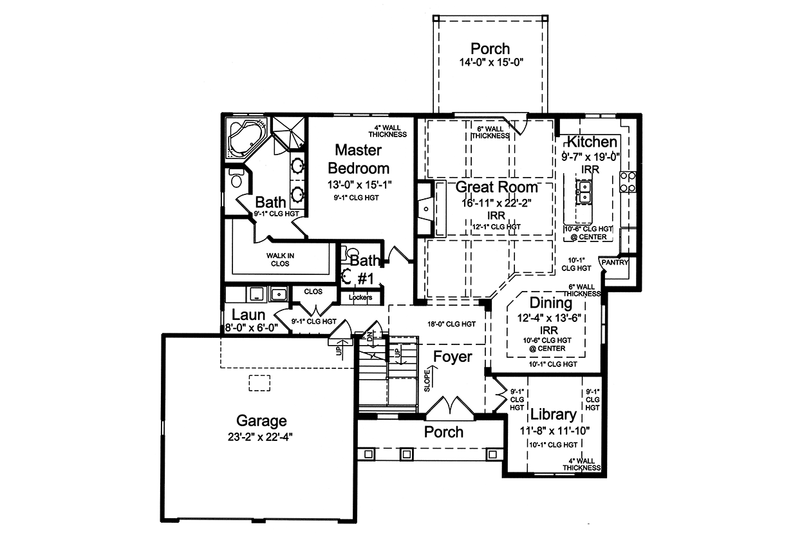

- Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
- Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys
- Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
- Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
- Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
- Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
- Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
- Fireplace detail shows how the fireplace is to be built.
- Wall section shows typical framing detail of house.
