PLAN 46-838

Photographs may show modified designs.

Save
  • Jump to:
  • All (5)
  • Floor plans (2)
Questions? Get Personalized Help
Home  >  Style  >  Craftsman

Key Specs


Plan Sq Ft

2479
sq ft

Plan Bedrooms

3
Beds

Plan Bathrooms

2.5
Baths

Plan Floors

1
Floors

Plan Garages

2
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Right-Reading Reverse
$200.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
$55.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Subtotal
$1050.00
Best Price Guaranteed*

Also order by phone: 1-888-447-1946

Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.


Wow!
Cost to Build Reports
are Only $4.99
with Code CTB2025 (limit 1)
This report will provide you cost estimates based on location and building materials.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

PLAN 46-838

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

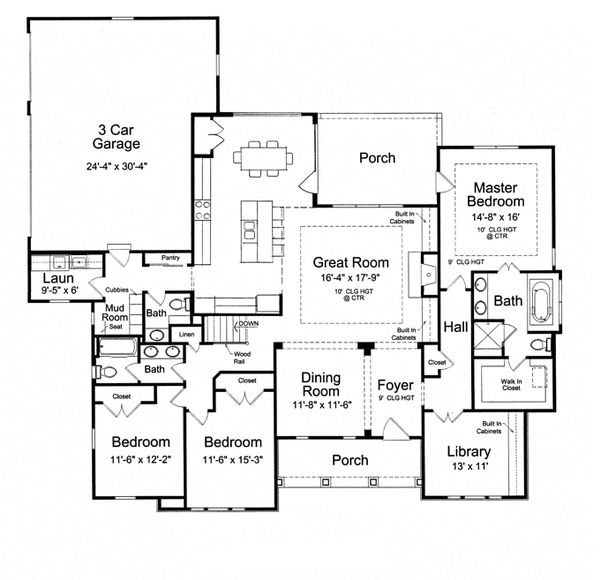

Here’s a beautiful home that’s well-equipped for modern life. The exterior displays shingles, multiple gables, a dormer with a shed roof, and a covered front porch. A three-car garage sits to the rear of the home and provides entry through a highly organized practical zone that includes cubbies and a pantry. Two walls of glass make the breakfast nook a bright and cheerful place to start your day. An island with seating defines the kitchen, open to the great room. A gas fireplace, built-in cabinets, and view to the rear porch decorate this wonderful gathering space. The master suite offers a decorative ceiling, whirlpool tub, and double-bowl vanity. Two additional bedrooms and a private library (located near the master suite, this would also make a great nursery) complete this exciting home.

Full Specs & Features


Dimension

Depth : 64' 10"

Height : 25' 3"

Width : 69' 10"

Area

First Floor: 2479 sq/ft

Garage: 703 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 7:12

Roof Framing : Truss

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Shingle/Siding

Framing : Wood - 2x4

Bedroom Features

Fireplace

Formal Dining Room

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Kitchenette Wet Bar

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Great Room Living Room

Main Floor Laundry

Mud Room

Garage Features

Side Entry Garage

Outdoor Spaces

Courtyard

Covered Front Porch

Covered Rear Porch

Rooms

Bedroom 2:

width 11' 6" x depth 15' 3"

Bedroom 3:

width 11' 6" x depth 12' 2"

Dining Room:

width 11' 8" x depth 11' 6"

Garage:

703 sq/ft width 24' 4" x depth 30' 4"

Great Room:

width 16' 4" x depth 17' 9"

Library:

width 13' x depth 11'

Master Bedroom:

width 14' 8" x depth 16'

Porch Front:

122 sq/ft

Porch Rear:

192 sq/ft

What's Included In This Plan Set


Special Offer: When you buy a 5 copy or 8 copy printed set, a PDF set will be emailed to you.
  • Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
  • Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).
  • Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
  • Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys
Miscellaneous Details:
  • Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
  • Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
  • Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
  • Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
  • Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
  • Fireplace detail shows how the fireplace is to be built.
  • Wall section shows typical framing detail of house.
