PLAN 124-412

Home > Style > Mediterranean

Key Specs

2491
sq ft

4
Beds

2.5
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

Stuccoed walls and a tile roof combine with a wealth of multipaned windows to create this bright and breezy Ranch style home plan. In the vaulted great room, a wide-hearthed fireplace is across the room from a wall of windows, and a large bayed kitchen is right around the corner.

Floor Plans

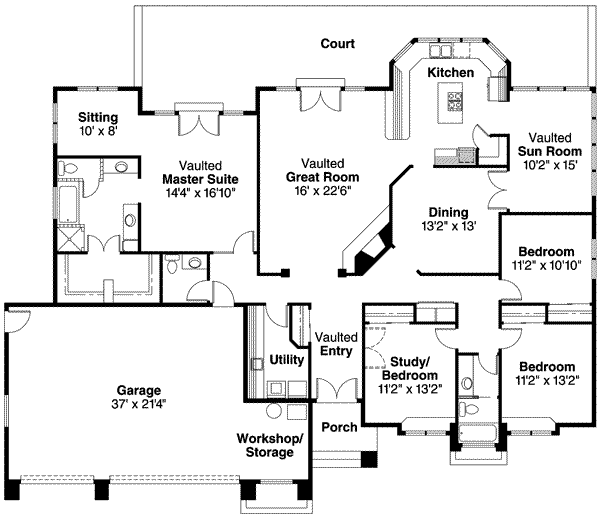

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 57'

Height : 22'

Width : 73'

Area

First Floor: 2491 sq/ft

Garage: 732 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Roof Load : 30

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : 2"x6"

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Great Room Living Room

Main Floor Laundry

Master Sitting Area

Sunroom

Workshop

Garage Features

Front Entry Garage

Oversized Garage

Outdoor Spaces

Courtyard

Covered Front Porch

Screened Porch

Code Compliance

Irc 2006

Structural Information Provided

Foundation Drawing

Structural 1st Floor Framing

Structural Roof Framing

Rooms

Bedroom 2:

147 sq/ft width 11' 2" x depth 13' 2"

Bedroom 3:

120 sq/ft width 11' 2" x depth 10' 10"

Den/Office or Bedroom 1:

147 sq/ft width 11' 2" x depth 13' 2"

Dining Room:

171 sq/ft width 13' 2" x depth 13'

Garage:

618 sq/ft width 29' x depth 21' 4"

Great Room:

371 sq/ft width 16' 6" x depth 22' 6"

Master Bedroom:

241 sq/ft width 14' 4" x depth 16' 10"

Master Sitting Room:

80 sq/ft width 10' x depth 8'

Sun Room:

2 sq/ft width 2" x depth 15'

Work Shop:

76 sq/ft width 8' x depth 9' 6"

What's Included In This Plan Set

See a sample plan set

Please note, if ordering a PDF Print Set, it is not-modifiable. The CAD set is best for making local modifications. The "5 set + PDF" combo contains a non-modifiable PDF Print Set.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
