PLAN 417-713

Home Plan - Mediterranean Exterior - Front Elevation Plan #417-713

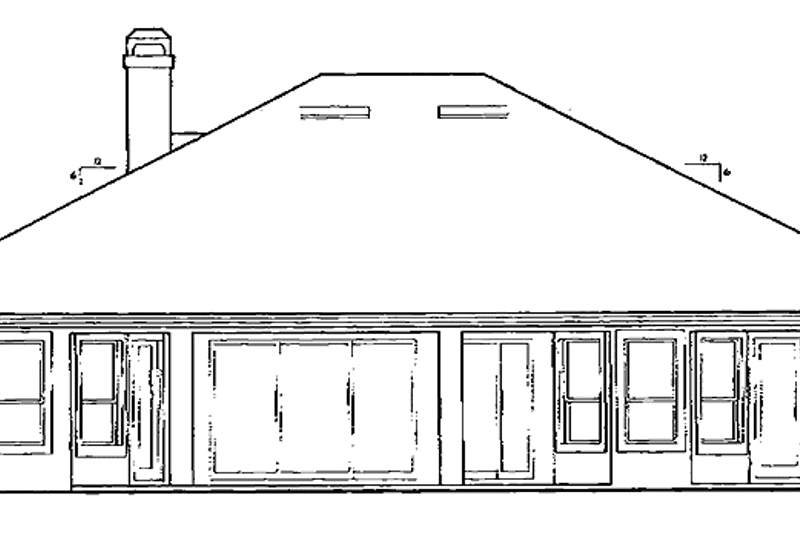

Home Plan - Mediterranean Exterior - Rear Elevation Plan #417-713

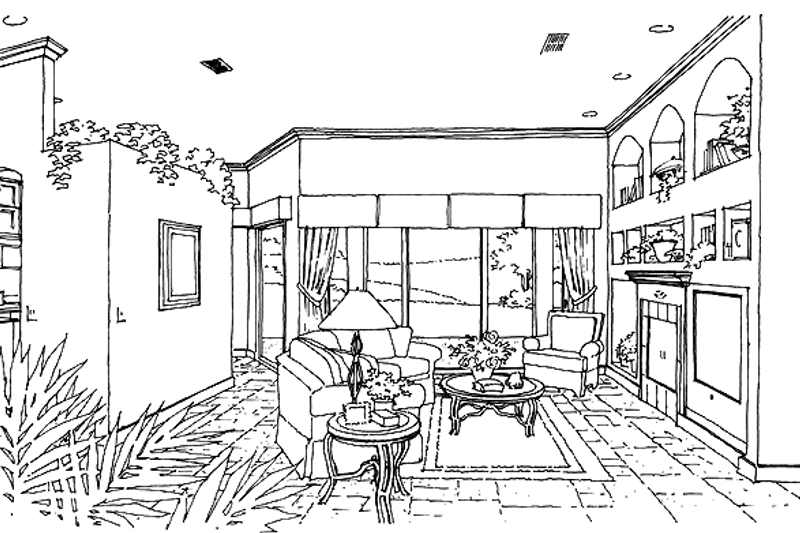

Home Plan - Mediterranean Interior - Family Room Plan #417-713

Key Specs


2503
sq ft

3
Beds

3
Baths

1
Floors

2
Garages

Select Plan Set Options

What's included?
Additional Construction Sets
$36.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets
$60.00
Printed sets showing plan in reverse, text and dimensions will be backwards.
Subtotal
NOW $712.00
You save $178.00
(20% savings)
Sale ends soon!
Also order by phone: 1-888-447-1946
Cost-to-Build Estimates
Now Just $17.99 for a Limited Time
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Questions?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 417-713

Key Specs


2503
sq ft

3
Beds

3
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description


Square pillars elegantly introduced the entry of this gracious three-bedroom home. Past the two-door entry, a Mediterranean style family room impresses guests. The built-in entertainment center surrounding the fireplace enhances the spacious feel of the living room. To the right resides a master suite with a sunny sitting area, two walk-in closets, private access to the rear covered porch, and a master bath featuring a soaking tub set in a concave wall of glass. To the left of the design are the two family bedrooms--note the walk-in closets and private baths for each room!--a kitchen, bayed breakfast nook andhandy utility room. This home would be perfect for placement on or near a golf course--the plan includes its own golf-cart garage door.

Full Specs & Features


Dimension
Depth : 78' 4"
Height : 23'
Width : 60'
Area
First Floor: 2503 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Tile
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block
Bedroom Features
Fireplace
Formal Dining Room
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Master Sitting Area
Garage Features
Side Entry Garage
Outdoor Spaces
Courtyard
Covered Front Porch

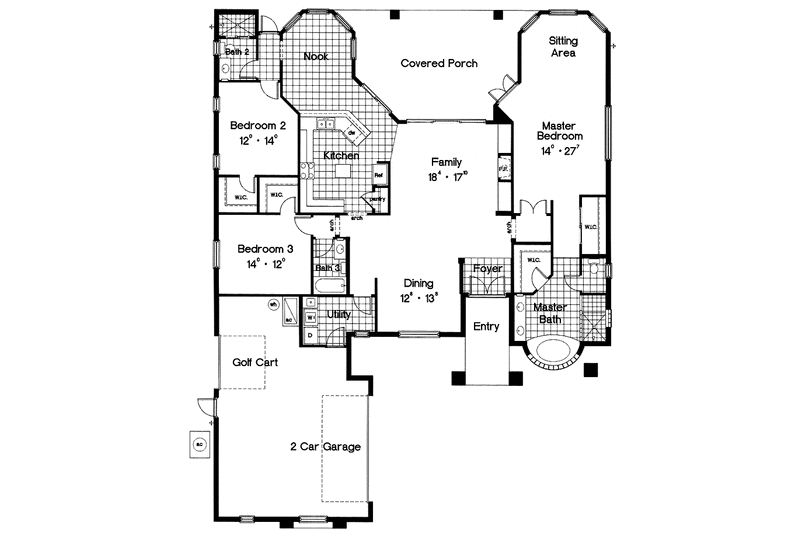

Rooms

Bedroom 2:

168 sq/ft width 12' x depth 14'

Bedroom 3:

168 sq/ft width 14' x depth 12'

Breakfast Room:

106 sq/ft width 10' 6" x depth 10' 2"

Dining Room:

173 sq/ft width 12' 8" x depth 13' 8"

Gathering Room:

326 sq/ft width 18' 4" x depth 17' 10"

Kitchen:

226 sq/ft width 11' 4" x depth 20'

Master Bathroom:

238 sq/ft width 14' x depth 17'

Master Bedroom:

386 sq/ft width 14' x depth 27' 7"

Porch - Rear:

514 sq/ft width 31' 4" x depth 16' 5"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-888-447-1946
Plan Set
5 Copy Set :
$712.00
5 printed plan sets mailed to you.
PDF Set :
$928.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1112.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
$1856.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Block:
$0.00
Block

Additional Options

Additional Construction Sets :
$36.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
$80.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$31.20
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
$80.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
$60.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
