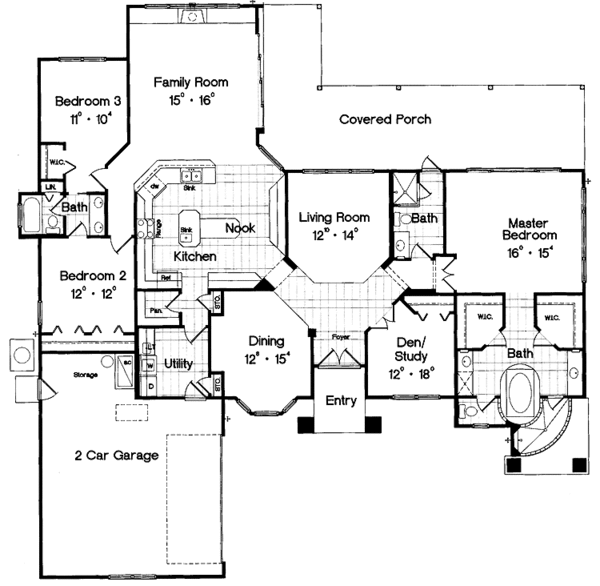

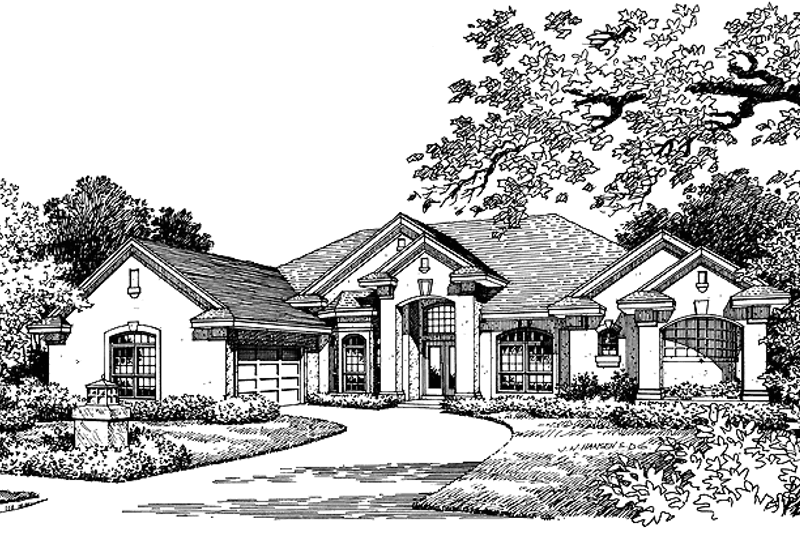

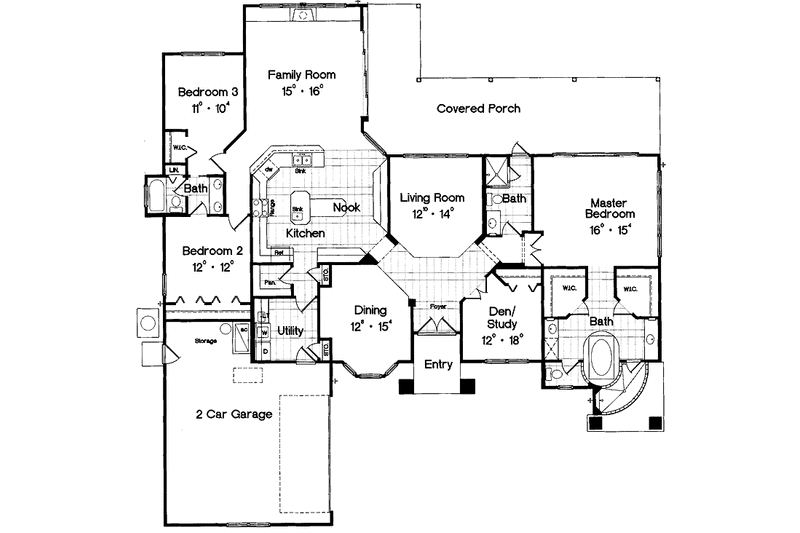

Grand Palladian windows create a classic look for this sensational stucco home. A magnificent view from the living room provides unlimited vistas of the rear grounds through a wall of glass, with the nearby dining room completing the formal area. The kitchen, breakfast nook and family room comprise the family wing, coming together to create the perfect place for casual gatherings. Two secondary bedrooms share a bath and provide complete privacy to the master suite, located on the opposite side of the plan. The master bedroom sets the mood for relaxation, and the lavish master bath pampers with a sumptuous soaking tub flanked by a step-down shower and compartmented toilet. Bonus space may be completed at a later date to accommodate additional space requirements.
64 sq/ft width 11' x depth 5' 10"
78 sq/ft width 6' 10" x depth 11' 6"
144 sq/ft width 12' x depth 12'
110 sq/ft width 11' x depth 10'
194 sq/ft width 12' 8" x depth 15' 4"
31 sq/ft width 6' 6" x depth 4' 10"
509 sq/ft width 22' 10" x depth 22' 4"
240 sq/ft width 15' x depth 16'
300 sq/ft width 19' 2" x depth 15' 8"
179 sq/ft width 12' 10" x depth 14'
192 sq/ft width 16' x depth 12'
245 sq/ft width 16' x depth 15' 4"
30 sq/ft width 6' x depth 5'
85 sq/ft width 9' 6" x depth 9'
All plans are drawn at ¼” scale or larger and include :
|5 Copy Set
|5 printed plan sets mailed to you.|
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|Ideal for level lot, single layer concrete poured directly on grade.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Home Furniture Planner
|This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
