PLAN 952-66
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Plan Description

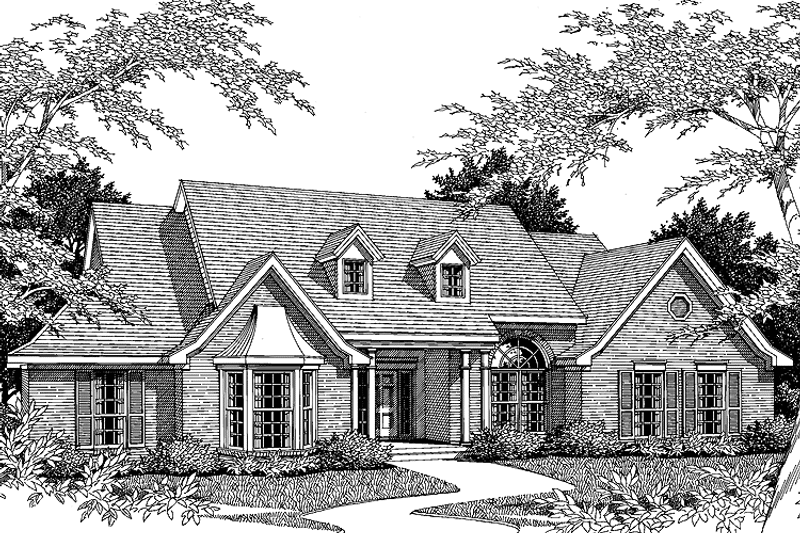

Interesting window details and varying rooflines lend this split-bedroom home comfort and elegance. The angled foyer steps down into the living room, where built-in display shelving on either side allows plenty of room for collectibles or books. The family room and kitchen are conveniently grouped with the gazebo breakfast room to provide a large area for family gatherings and informal entertaining. Enter the master suite through angled double doors. The luxury bath awaits with a whirlpool tub as the centerpiece. His and Hers vanities, a separate shower, and two large walk-in closets are included. Three family bedrooms with large walk-in closets, and a roomy bath complete this best-selling plan.
Full Specs & Features
Dimension
Depth : 65' 6"
Height : 24'
Width : 70'
Height : 24'
Width : 70'
Area
First Floor: 2561 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 9:12
Roof Framing : Conventional
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Split Bedrooms
Walk In Closet
Formal Dining Room
Formal Living Room / Parlor
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchenette Wet Bar
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Family Room Keeping Room
Outdoor Spaces
Courtyard
Covered Front Porch
Covered Front Porch
Rooms
Bedroom 2:
161 sq/ft width 14' 8" x depth 11'
Bedroom 3:
126 sq/ft width 11' x depth 11' 6"
Bedroom 4:
149 sq/ft width 11' 6" x depth 13'
Dining Room:
155 sq/ft width 11' 8" x depth 13' 4"
Gathering Room:
195 sq/ft width 13' 4" x depth 14' 8"
Kitchen:
233 sq/ft width 18' 8" x depth 12' 6"
Living Room:
317 sq/ft width 17' x depth 18' 8"
Master Bedroom:
248 sq/ft width 14' 4" x depth 17' 4"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

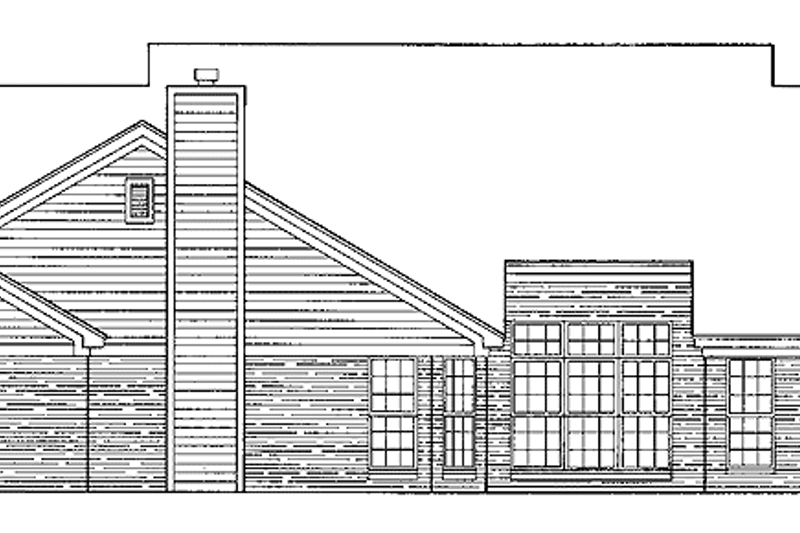

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

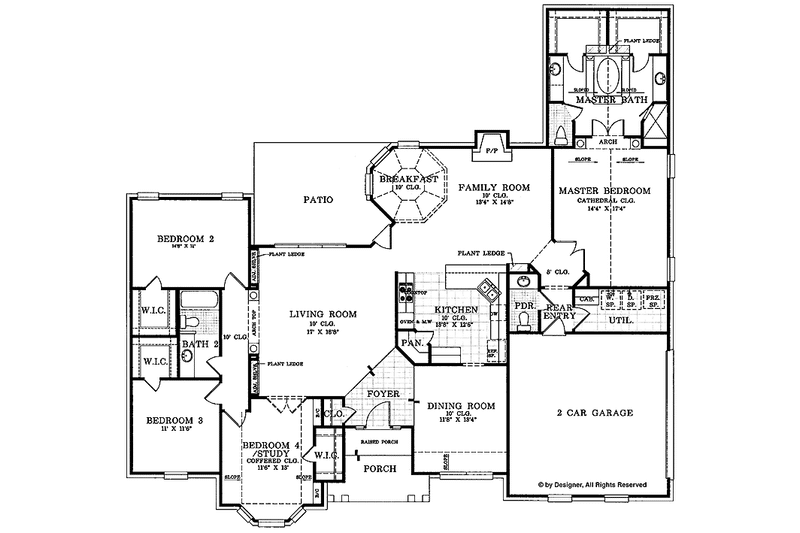

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Questions? Call 1-888-447-1946
Plan Set
| PDF Set : $1150.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
Foundation
| Crawlspace: $0.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
| Slab: $0.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
Framing
| Wood 2x4: $0.00 |
Wood 2x4 |
Additional Options
| Additional Construction Sets : $60.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design : $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Material List : $85.00 |
A list of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options. |
| Mirror Reversed Sets : $55.00 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
