PLAN 48-236

Photographs may show modified designs.

Home Plan - Craftsman Exterior - Front Elevation Plan #48-236

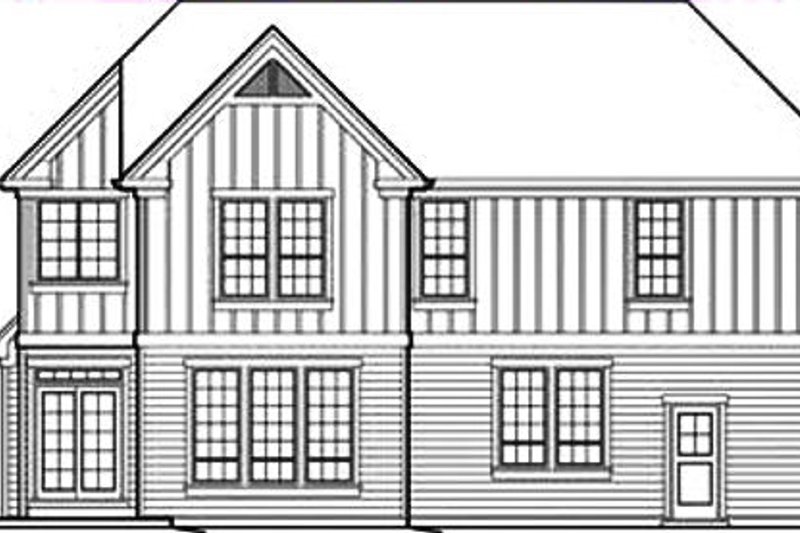

Home Plan - Craftsman Exterior - Rear Elevation Plan #48-236

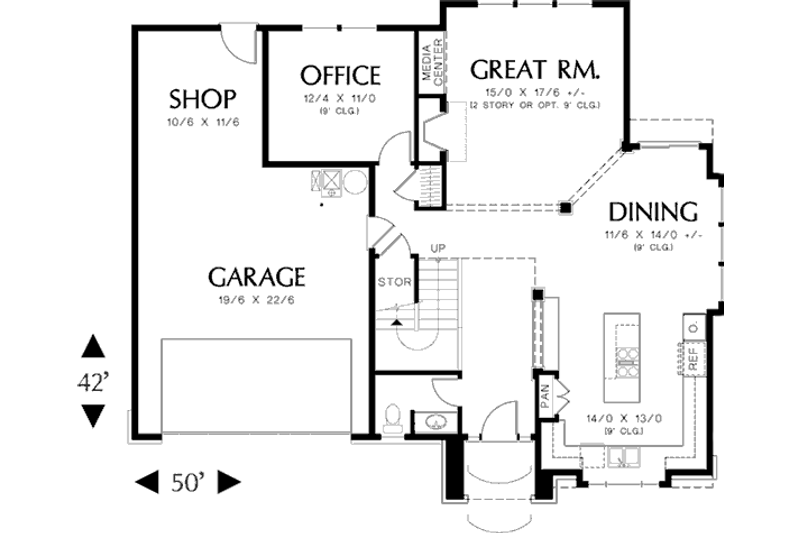

Home Plan - Craftsman Floor Plan - Main Floor Plan #48-236

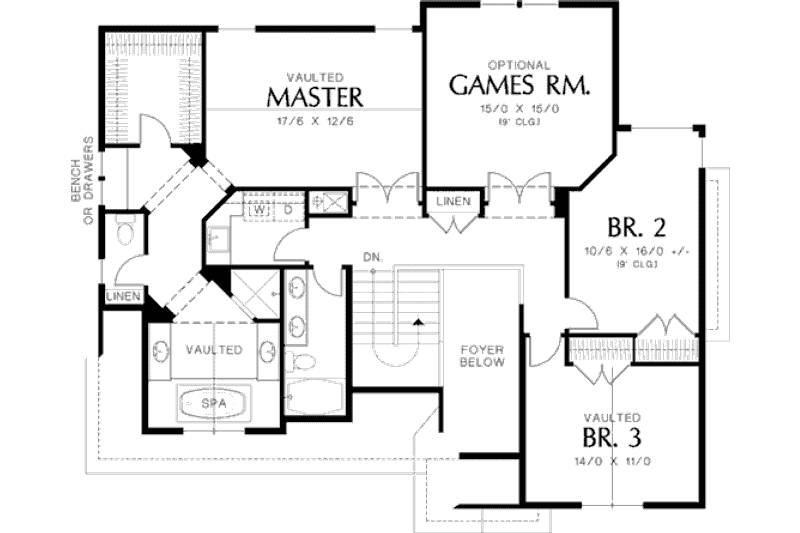

Home Plan - Craftsman Floor Plan - Upper Floor Plan #48-236

Jump to:
All (4)
Exterior (2)
Floor plans (2)

Get Personalized Help

Home > Style > Craftsman

Key Specs

2605
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$250.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$60.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$295.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Mirror Reversed Sets

$250.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$1796.00

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBSUMMER

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 48-236

Home > Style > Craftsman

Key Specs

2605
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

The island in this kitchen enhances aesthetics while increasing work space efficiency. The eating bar in this house plan creates an efficient space for dining and socializing. Spaciousness is evident throughout this floor plan due to the open concept. The garage has become a multi-purpose area with the addition of a workshop or storage area. Two or more living areas in this home design allows for a more diversified use of these spaces. A single eating area in this house plan allows for central gathering for family and friends. Volume ceilings in this house design add luxury and spaciousness. The grand two story entry of this floor plan creates a lofty, spacious, and inviting feeling. The master bedroom, conveniently located on the upper floor, increases communication for young families. Main living areas are strategically located making this home plan suited for a view lot.

Floor Plans

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 42'

Height : 30'

Width : 50'

Area

First Floor: 1142 sq/ft height 9'

Second Floor: 1463 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Upper Ceiling Ft : 9'

Roof

Primary Pitch : 12:12

Roof Framing : Truss

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding

Framing : 2"x6"

Bedroom Features

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Hobby Rec Room Game Room

Play Flex Room

Upstairs Laundry

Workshop

Lot Characteristics

Suited For Corner Lot

Suited For Narrow Lot

Suited For View Lot

Outdoor Spaces

Covered Front Porch

Rooms

3rd BR Closet:

10 sq/ft width 5' x depth 2'

Bathroom 2:

55 sq/ft width 5' x depth 11'

Bedroom 2:

168 sq/ft width 10' 6" x depth 16'

Bedroom 2 Closet:

10 sq/ft width 5' x depth 2'

Bedroom 3:

154 sq/ft width 14' x depth 11'

Bedroom 3 Closet:

10 sq/ft width 5' x depth 2'

Den/Office or Bedroom 1:

135 sq/ft width 12' 4" x depth 11'

Dining Room:

161 sq/ft width 11' 6" x depth 14'

Foyer:

30 sq/ft width 6' x depth 5'

Garage:

438 sq/ft width 19' 6" x depth 22' 6"

Gathering Room:

262 sq/ft width 15' x depth 17' 6"

Hall Bathroom:

35 sq/ft width 7' x depth 5'

Hall Closet:

30 sq/ft width 3' x depth 10'

Kitchen:

210 sq/ft width 14' x depth 15'

Kitchen Island:

24 sq/ft width 3' x depth 8'

Laundry Room:

60 sq/ft width 5' x depth 12'

Linen Closet:

8 sq/ft width 4' x depth 2'

Master Bathroom:

130 sq/ft width 10' x depth 13'

Master Bedroom:

218 sq/ft width 17' 6" x depth 12' 6"

Master Closet:

72 sq/ft width 8' x depth 9'

Pantry:

5 sq/ft width 1' 8" x depth 3'

Work Shop:

120 sq/ft width 10' 6" x depth 11' 6"

What's Included In This Plan Set

See a sample plan set

Exterior Elevations

In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan

The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations. If you choose the optional Slab foundation, the slab foundation will not be reflected in the plan sections.

Floor Plan(s)

Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections

Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

Roof Plan

Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s)

Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your building department — these are usually done locally.
