PLAN 417-650

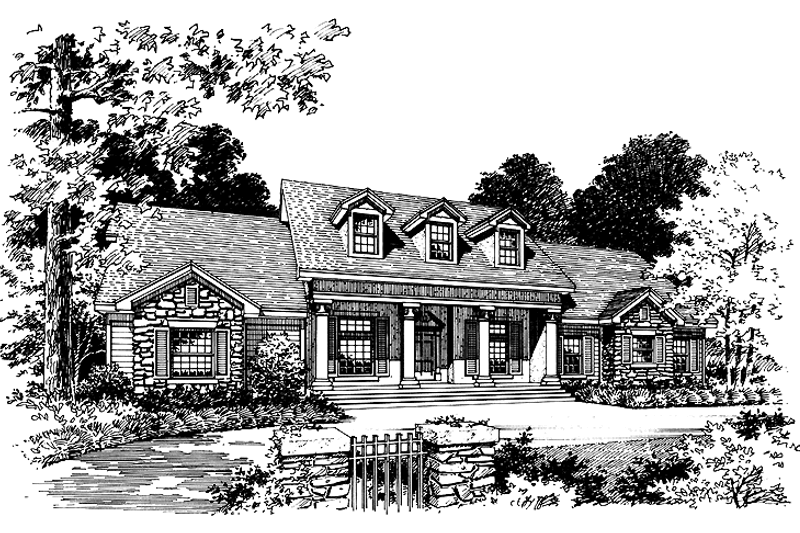

Home Plan - Classical Exterior - Front Elevation Plan #417-650
Home Plan - Classical Exterior - Rear Elevation Plan #417-650

Key Specs


2636
sq ft

3
Beds

3
Baths

1
Floors

3
Garages

Select Plan Set Options

What's included?
Additional Construction Sets
$36.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets
$60.00
Printed sets showing plan in reverse, text and dimensions will be backwards.
Subtotal
NOW $712.00
You save $178.00
(20% savings)
Sale ends soon!
Also order by phone: 1-888-447-1946
Cost-to-Build Estimates
Now Just $17.99 for a Limited Time
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Questions?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 417-650

Key Specs


2636
sq ft

3
Beds

3
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description

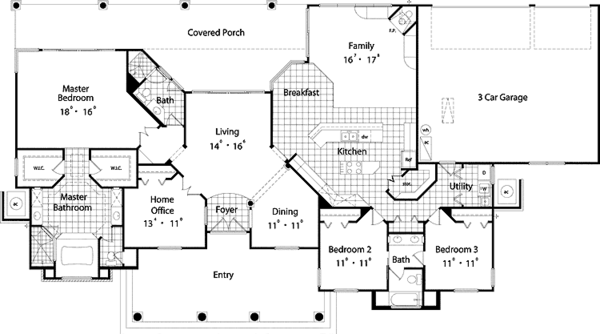

This home takes up a commanding view with the country porch and stone veneer accents. Upon entering, views throughout the home are possible as this home reaches out in all directions. The living room has a wall of glass to the covered patio, and the dining room with its decorative columns and angular wall create an impressive space. The master wing of this home is just past the den/bedroom 4, and pool bath, and is welcomed through double doors with a decorative niche nearby. Large glass expanses again take advantage of the rear garden areas, while His and Her walk-in closets greet you as you enter the bath. The soaking tub is the main focal point, with the flanking of his and her vanities and shower and toilet chamber completing the design. The family living area of this home is just as impressive, with a massive island kitchen the centerpiece of the triad. Not to be outdone, the generous nook can accommodate a large family, as can the family room which has a media/fireplace wall. Passing the huge walk-in pantry of this home, you enter the secondary bedroom wing, where two large bedrooms share a "pullman" style bath.

Full Specs & Features


Dimension
Depth : 52' 4"
Height : 29'
Width : 96' 6"
Area
First Floor: 2636 sq/ft height 10'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Outdoor Spaces
Courtyard
Covered Front Porch
Outdoor Kitchen Grill
Rooms

Bathroom 2:

55 sq/ft width 5' x depth 11'

Breakfast Room:

73 sq/ft width 10' x depth 7' 4"

Garage:

761 sq/ft width 29' 8" x depth 25' 8"

Kitchen:

231 sq/ft width 19' 7" x depth 11' 10"

Master Bathroom:

255 sq/ft width 15' x depth 17'

Master Closet:

56 sq/ft width 7' x depth 8'

Pantry:

48 sq/ft width 8' x depth 6'

Pool Bath:

108 sq/ft width 9' x depth 12'

Porch - Front:

560 sq/ft width 35' x depth 16'

Porch - Rear:

672 sq/ft width 48' x depth 14'

Utility Room:

63 sq/ft width 9' x depth 7'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-888-447-1946
Plan Set
5 Copy Set :
$712.00
5 printed plan sets mailed to you.
PDF Set :
$928.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1112.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
$1856.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x4:
$0.00
Wood 2x4

Additional Options

Additional Construction Sets :
$36.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
$80.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$31.20
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
$80.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
$60.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.
